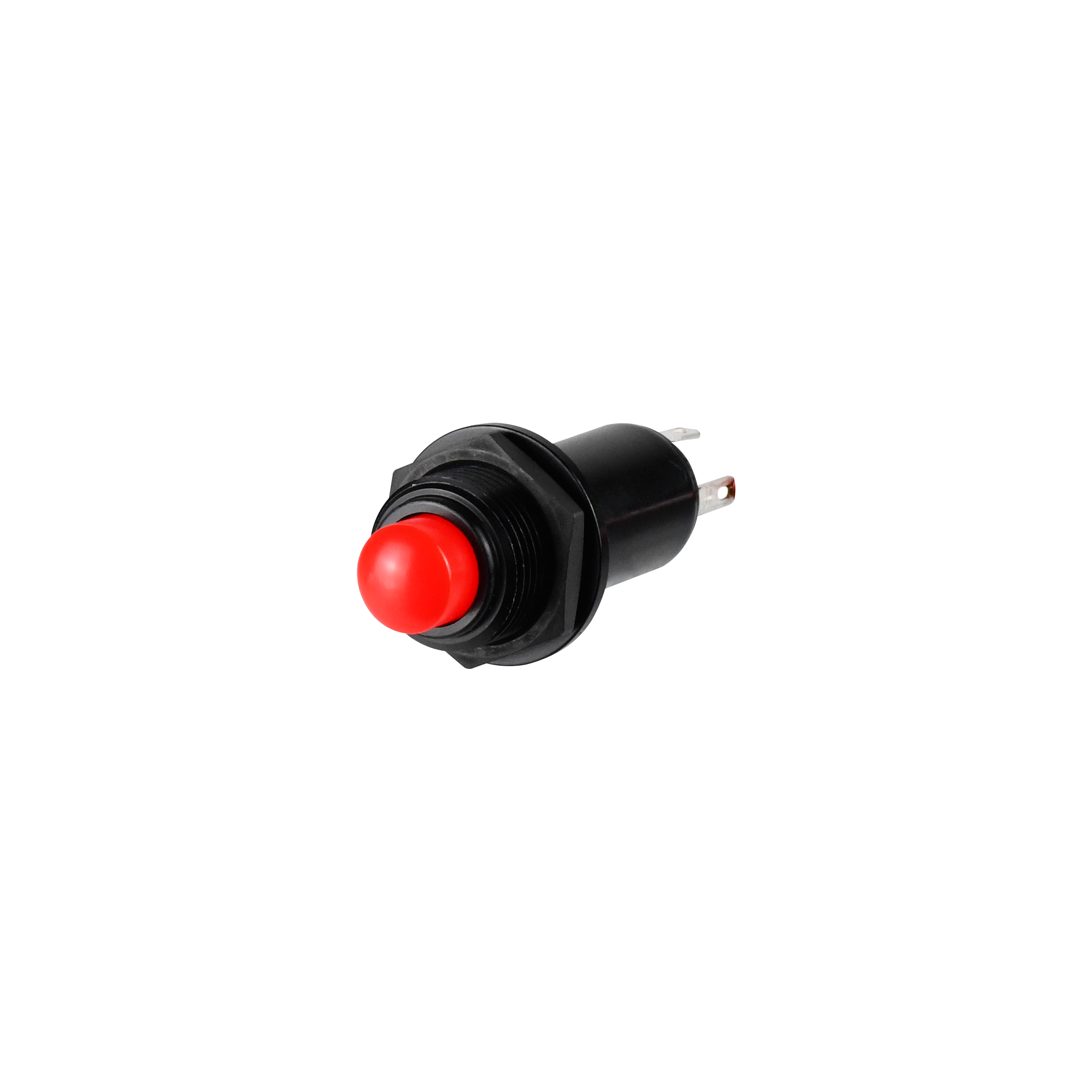

LP3-61Q122W

OTTLP3_61Q122W
Heilind Number:OTTLP3-61Q122W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-61Q122W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-61Q122W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-61Q122W

Detailed Description

Introducing the LP3 Series Sealed Illuminated Pushbutton Switch, featuring a durable design with an IP6K8S rating for reliable performance in demanding environments. The sleek black housing complements the white translucent button, which illuminates in a vibrant blue color for enhanced visibility. With a momentary action and SPST-NO contact configuration, this switch is perfect for applications requiring quick, responsive control. The raised dome button, made of thermoplastic, offers a comfortable actuation experience. Rated for 25,000 cycles and operating smoothly between -55°C to 85°C, this switch ensures long-lasting functionality. Suitable for panel mount installation with solder termination, it has a voltage rating of 115VAC and 28VDC, with a low actuation force of 5A. Ideal for use in various industries, the LP3-61Q122W guarantees quality and performance.
