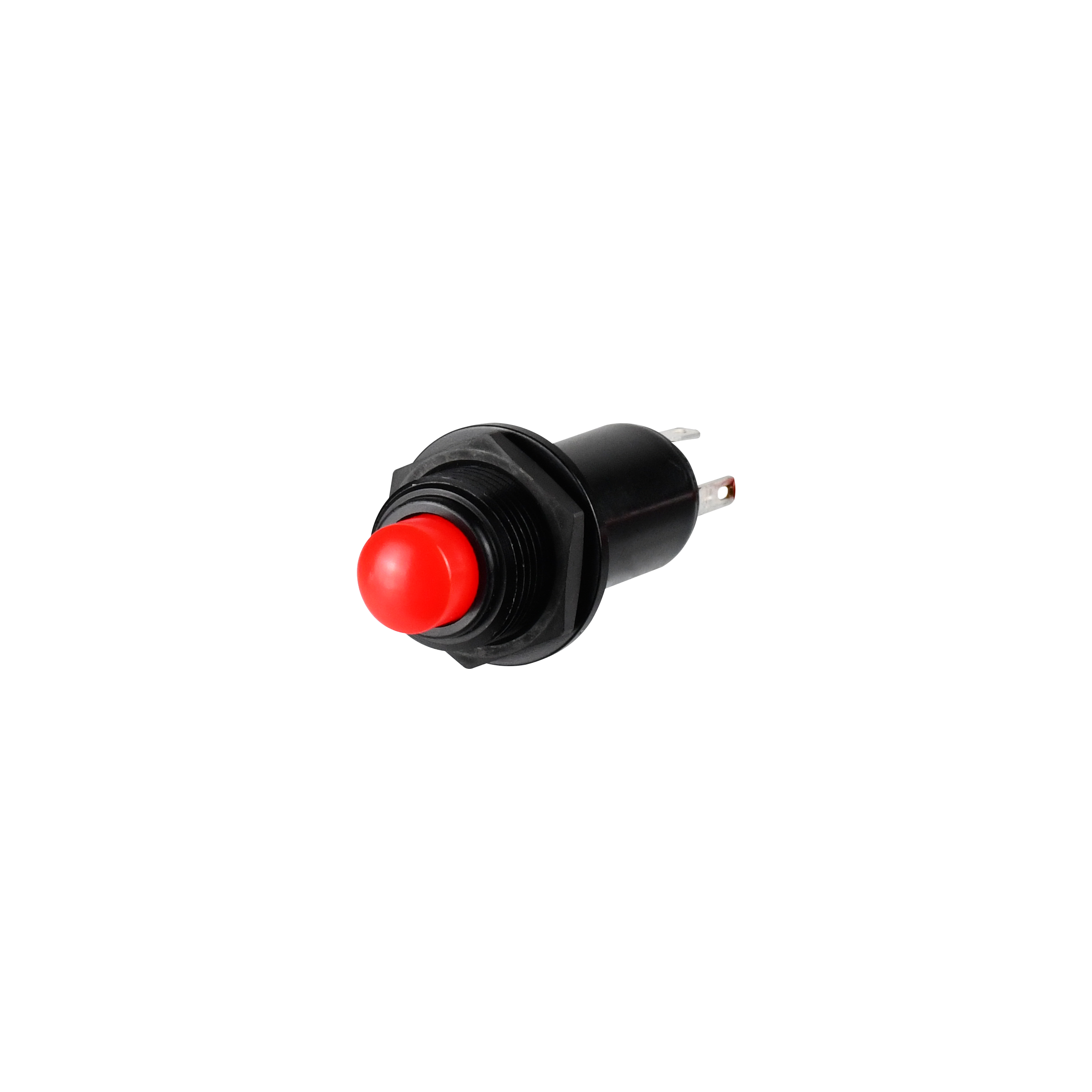

LP3-64K321W

OTTLP3_64K321W
Heilind Number:OTTLP3-64K321W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-64K321W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-64K321W
Series:LP3
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:10 - 100 mA
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):250,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-64K321W

Detailed Description

The LP3 Series Illuminated Pushbutton Switch, SKU LP3-64K321W, is a high-performance component designed for reliable operation in demanding environments. Featuring a sleek silver case with a white translucent cap, this panel-mount switch offers IP6K8S sealing for protection against dust and water ingress. The durable aluminum housing and thermoplastic actuator ensure longevity, with a high durability rating of 250,000 cycles. The button, with a raised dome shape and red illumination, provides tactile feedback and visual indication of its momentary action, suitable for applications requiring precise control. Gold-plated brass contacts guarantee low resistance and high reliability, with a contact configuration of SPST-NO. Operating at voltages up to 115 VAC and 28 VDC, with a current rating of 10-100 mA, this switch is versatile for various electronic systems. With a wide temperature range of -55°C to 85°C, it performs consistently in extreme conditions. Perfect for use in aerospace, industrial, and automotive settings, the LP3 pushbutton switch delivers superior performance and durability.
