LP3-A11A3223

OTTLP3_A11A3223
Heilind Number:OTTLP3-A11A3223
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11A3223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

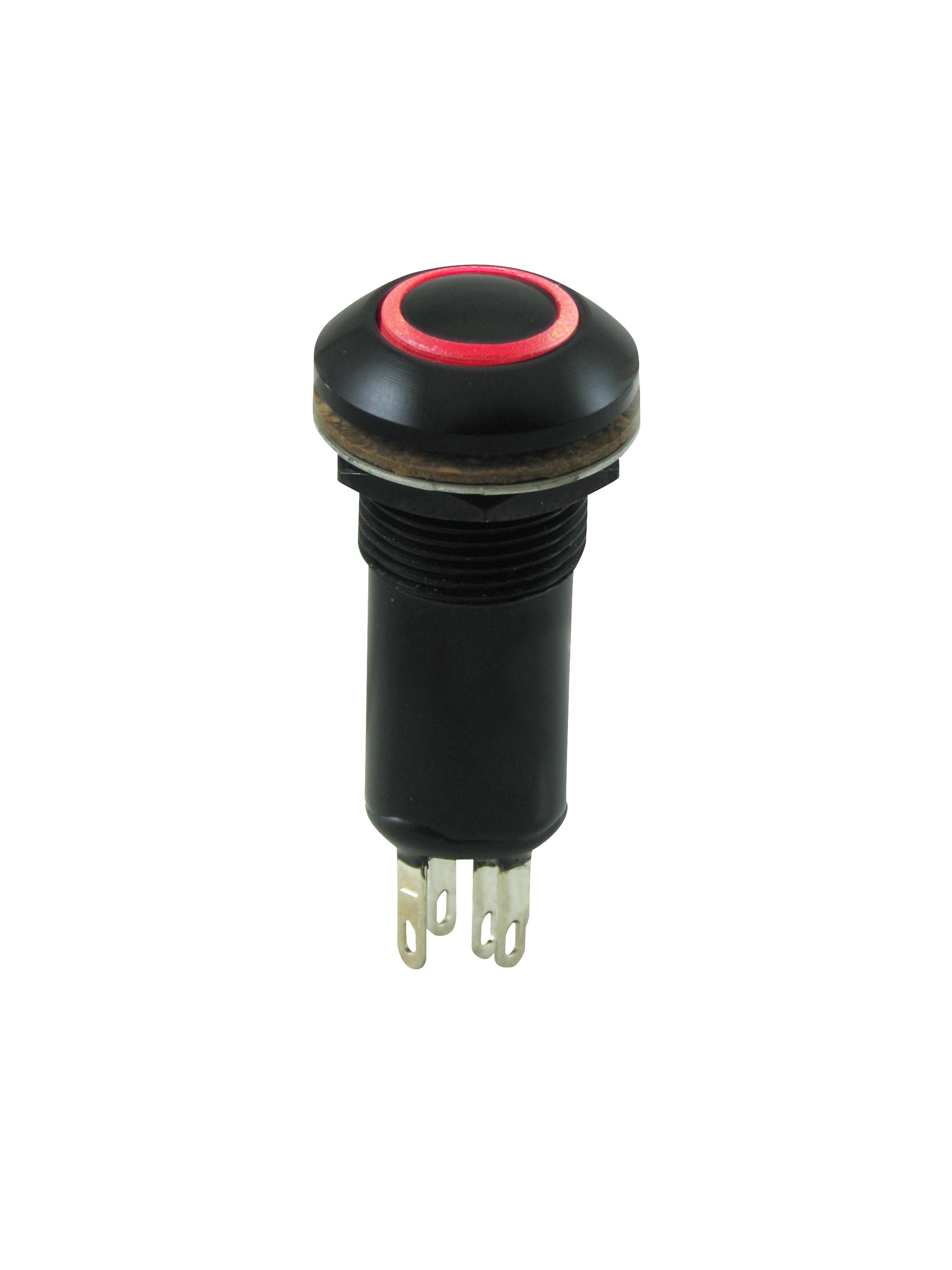

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11A3223
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3-A11A3223

Detailed Description

The LP3A11A3223 is a rugged and reliable pushbutton switch, designed for demanding environments. With its black aluminum housing and sealed construction, it offers vandal resistance and protection against the elements. The illuminated red button provides clear visibility, while the momentary action ensures precise control. Featuring a low profile flat actuator in a round shape, it is easy to operate with a durable thermoplastic material. With a high durability rating of 25,000 cycles and a wide operating temperature range from -55°C to 85°C, this switch is suitable for a variety of applications. Its SPST-NO contact configuration and solder termination make it easy to integrate into any panel. The LP3A11A3223 is the perfect choice for those seeking a high-quality, long-lasting pushbutton switch.
