LP3-A11G2221

OTTLP3_A11G2221
Heilind Number:OTTLP3-A11G2221
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11G2221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

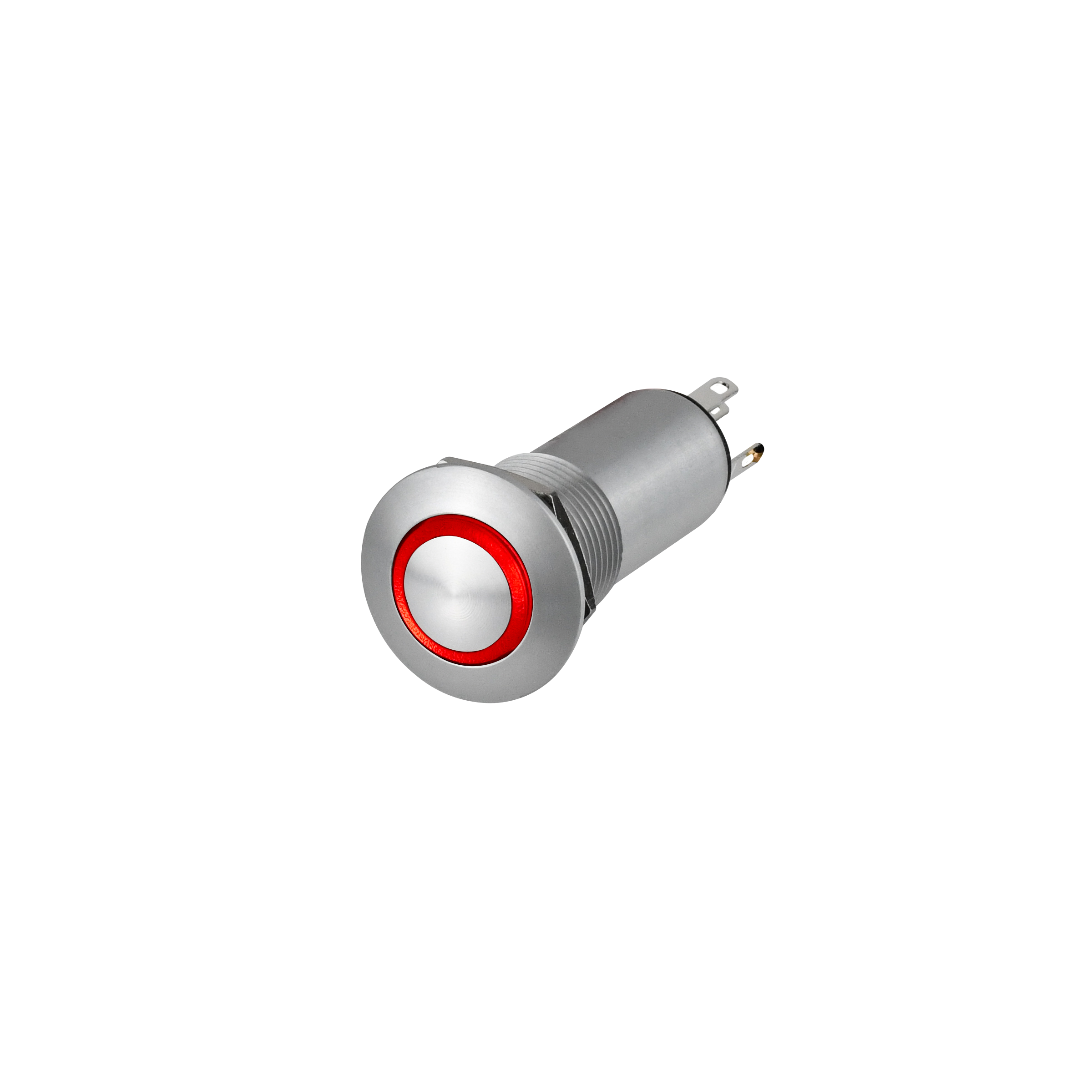

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11G2221
Series:LP3
Cap Color:Black
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (High Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A11G2221

Detailed Description

Introducing the LP3A11G2221 Vandal Resistant Sealed Illuminated Momentary Action Aluminum Pushbutton Switch. This durable and reliable switch features a high profile flat button with a round shape, perfect for easy actuation. With an IP6K4S rating, it offers excellent protection against dust and water ingress, making it ideal for outdoor or industrial applications. The black housing and cap add a sleek and professional look, while the red illumination ensures visibility in any environment. Operating at a maximum temperature of 85°C and a minimum of -55°C, it is suitable for a wide range of operating conditions. With a SPST-NO contact configuration and a 5A current rating, this switch guarantees reliable performance. It is designed for panel mounting and features solder termination, providing easy installation. Trust in the LP3A11G2221 for your critical switching needs.
