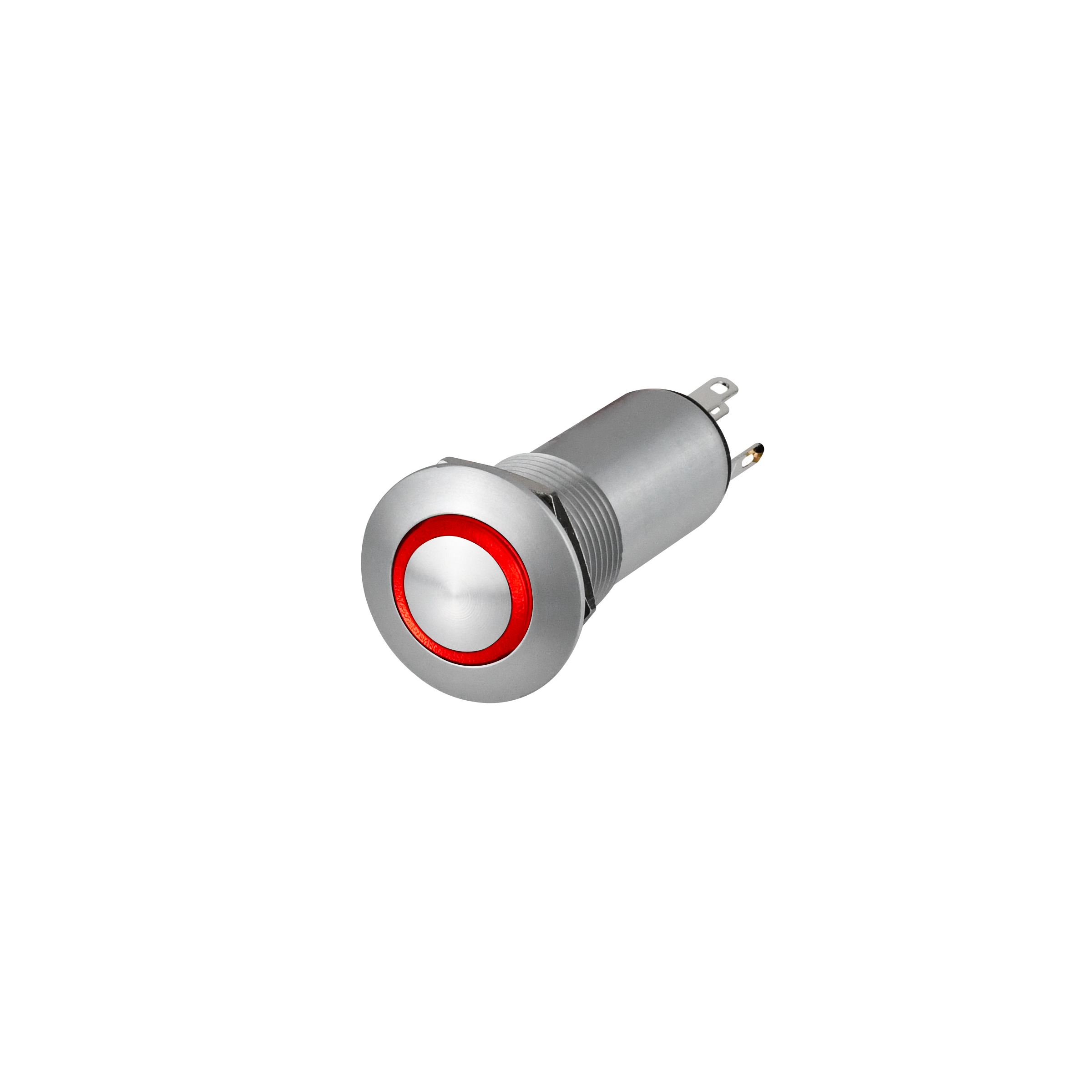

LP3-A11G3211

OTTLP3_A11G3211
Heilind Number:OTTLP3-A11G3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11G3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11G3211
Series:LP3
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A11G3211

Detailed Description

Introducing the LP3A11G3211, a rugged and reliable pushbutton switch designed for demanding environments. With a durable aluminum housing and IP6K8S sealing, this switch is vandal-resistant and fully protected against dust and water ingress, making it ideal for outdoor and industrial applications. The high-profile flat button with a round shape provides easy actuation, while the red illuminated ring ensures visibility in all lighting conditions. The momentary action, SPST-NO configuration, and 5A current rating offer versatile functionality, and the solder termination allows for secure installation. With a wide operating temperature range of -55°C to 85°C and a 25,000-cycle durability rating, the LP3A11G3211 guarantees long-lasting performance even in harsh conditions. Upgrade your control panel with this premium-quality pushbutton switch.
