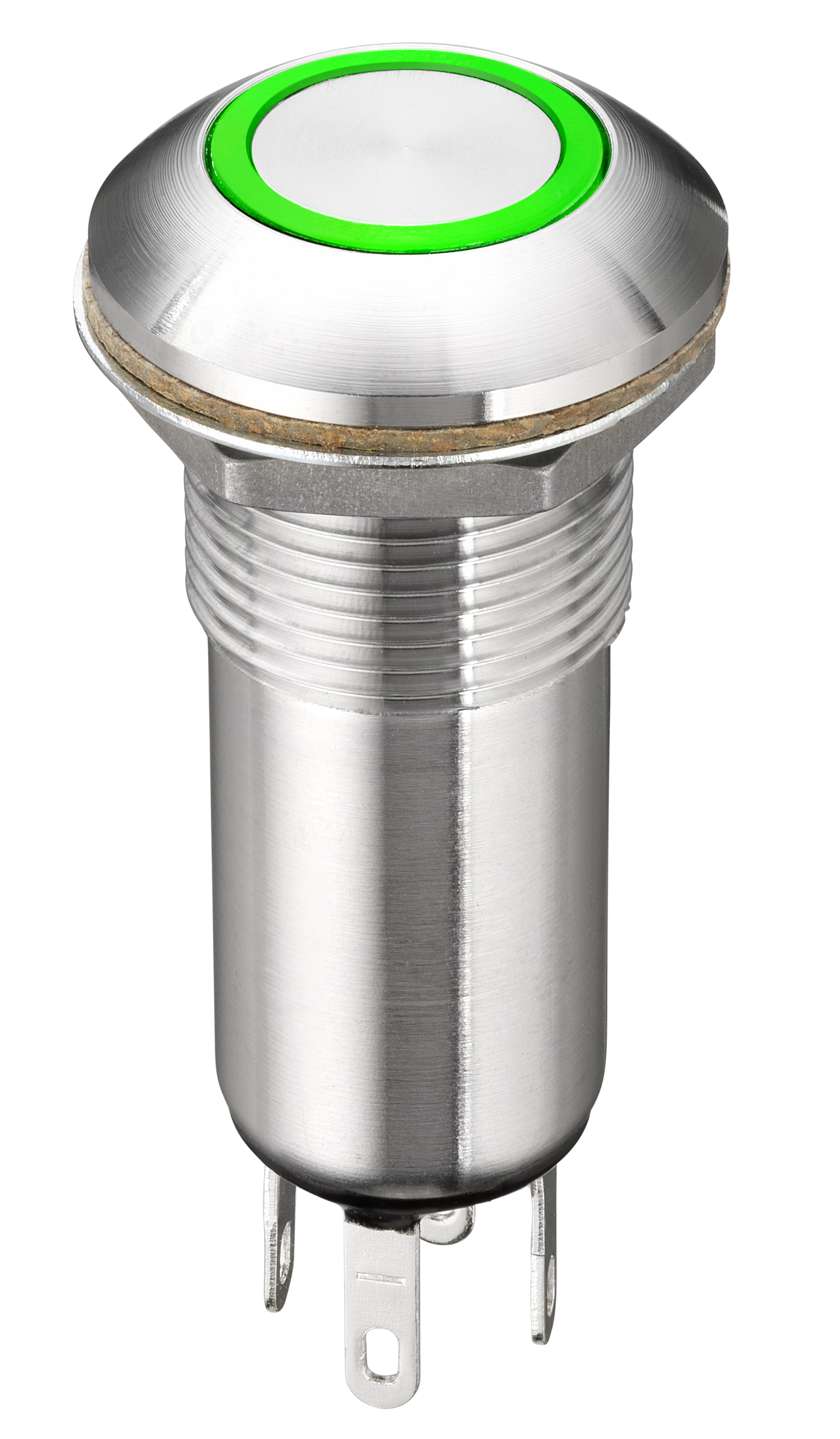

LP3-A11G3215

OTTLP3_A11G3215
Heilind Number:OTTLP3-A11G3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11G3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11G3215
Series:LP3
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Flush Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A11G3215

Detailed Description

The LP3A11G3215 is a vandal-resistant, sealed, and illuminated pushbutton switch designed for reliable performance in demanding environments. Featuring a durable aluminum housing and a thermoplastic actuator, this switch is built to withstand harsh conditions. With a momentary action and a red LED illumination, it offers both tactile feedback and visual indication of operation. The SPST-NO contact configuration ensures a reliable connection, while the silver contact plating and brass contact material guarantee low contact resistance. Rated for 25,000 cycles of operation, this switch is suitable for long-term use. It is panel-mounted with solder termination, making it easy to install. Operating temperature range from -55°C to 85°C, and IP6K8S rated for dust and water resistance, this switch is ideal for a wide range of applications that require a high-performance and durable pushbutton switch.
