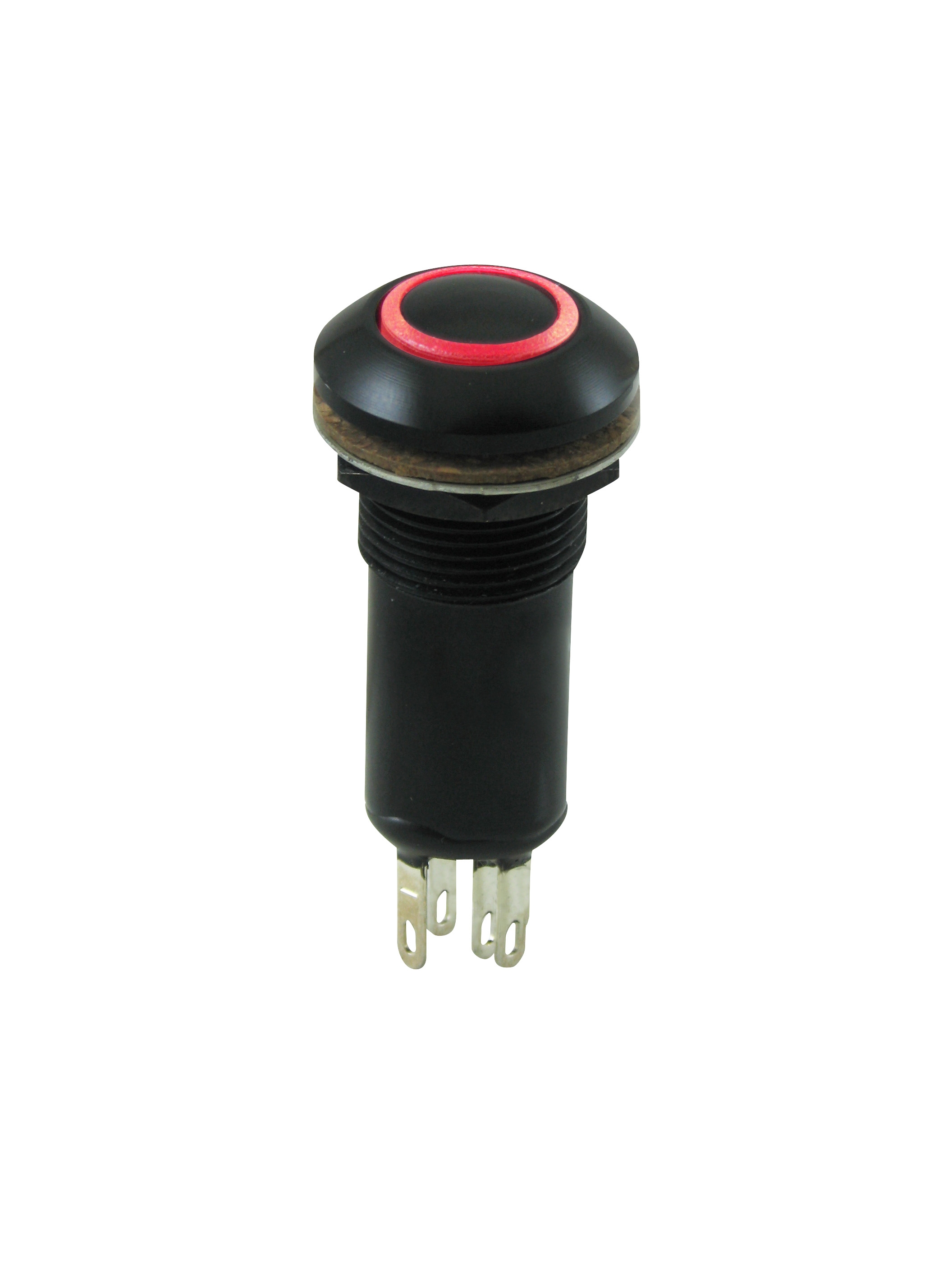

LP3-A11G3523

OTTLP3_A11G3523
Heilind Number:OTTLP3-A11G3523
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11G3523
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11G3523
Series:LP3
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Low Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.1 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A11G3523

Detailed Description

Introducing the LP3A11G3523, a rugged and reliable pushbutton switch designed for demanding environments. With a sleek black aluminum housing and a low profile flat button, this switch is not only durable but also visually appealing. Featuring an IP6K8S rating, it is sealed against dust and water ingress, making it ideal for outdoor and industrial applications. The red illuminated button provides clear indication of operation, while the SPST-NO contact configuration ensures reliable performance. Rated for 25,000 cycles, this switch offers long-lasting durability. Perfect for panel mounting, it has a 5A current rating and can handle voltages up to 115VAC or 28VDC. Whether used in aerospace, automotive, or marine applications, the LP3A11G3523 is the perfect choice for high-reliability switching.
