LP3-A11J2221

Heilind Number:OTTLP3-A11J2221
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11J2221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

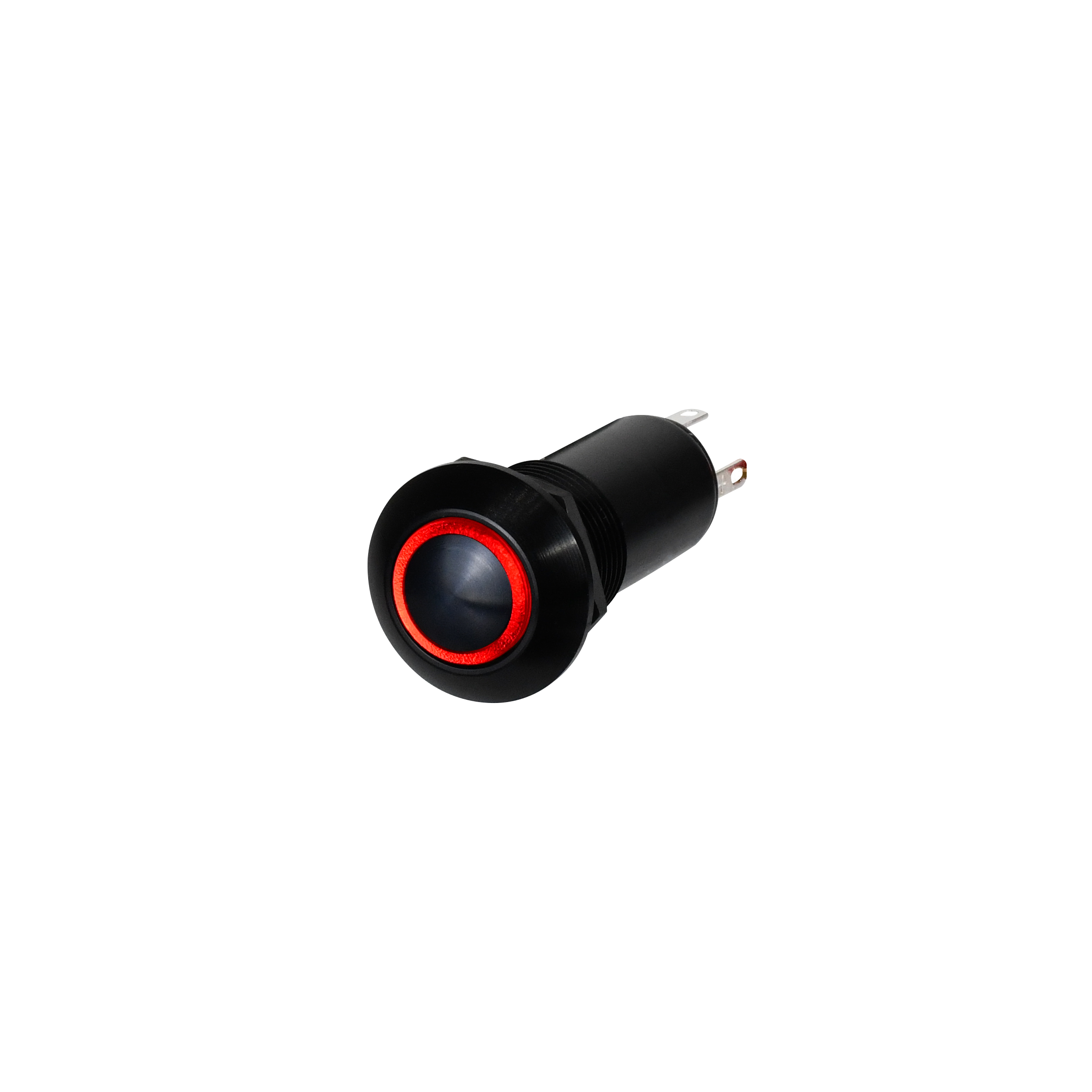

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11J2221
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-A11J2221

Detailed Description

Introducing the LP3A11J2221, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a durable aluminum housing and a sleek black finish, this switch is not only stylish but also built to last. With an IP6K4S rating, it offers protection against dust and water ingress, making it ideal for outdoor or industrial applications. The high-profile flat button actuator, illuminated in vibrant amber, provides easy visibility even in low-light conditions. Its momentary action and SPST-NO contact configuration ensure quick and efficient operation. Rated for 5A at 115VAC or 28VDC, this switch is suitable for a wide range of power applications. Whether you need a reliable control solution for your machinery or a vandal-resistant switch for public use, the LP3A11J2221 delivers exceptional performance with a 25,000-cycle durability rating. Trust in its quality craftsmanship and precise engineering for your switching needs.
