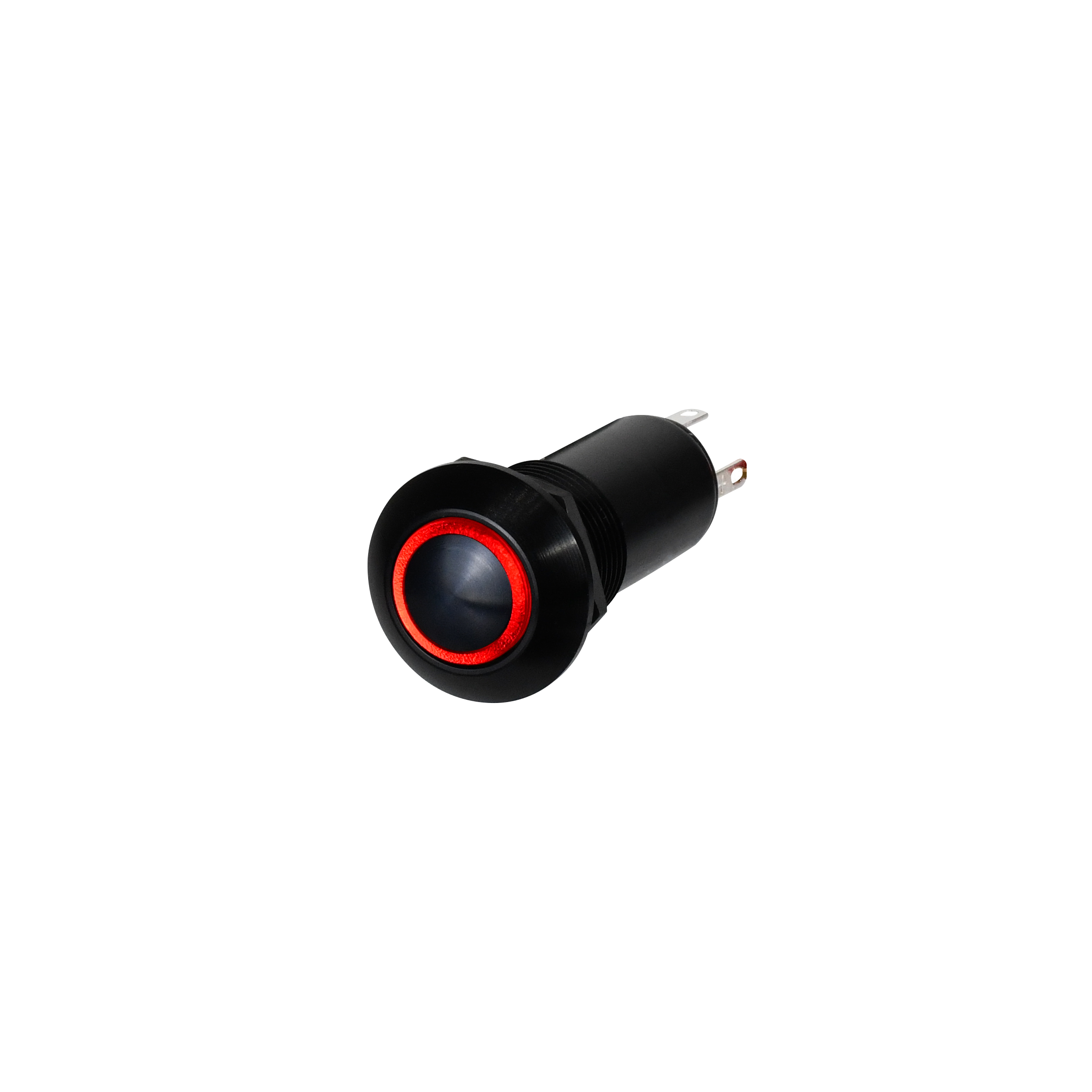

LP3-A11J2222

OTTLP3_A11J2222
Heilind Number:OTTLP3-A11J2222
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11J2222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11J2222
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Curved)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-A11J2222

Detailed Description

Introducing the LP3A11J2222, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a high-profile curved button with round shape, this switch is easy to operate and offers a durable aluminum housing for enhanced longevity. With an IP6K4S sealing rating, it provides protection against dust and water ingress, making it ideal for outdoor or industrial applications. The illuminated amber button ensures visibility in low-light conditions, while the momentary action allows for quick and efficient operation. Rated for 5A at 115VAC or 28VDC, this switch is suitable for a wide range of power applications. With a contact configuration of SPST-NO, it guarantees reliable performance every time. Whether you need a vandal-resistant switch for a public kiosk or a sealed option for a marine vessel, the LP3A11J2222 is the perfect choice.
