LP3-A11J3215

Heilind Number:OTTLP3-A11J3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11J3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

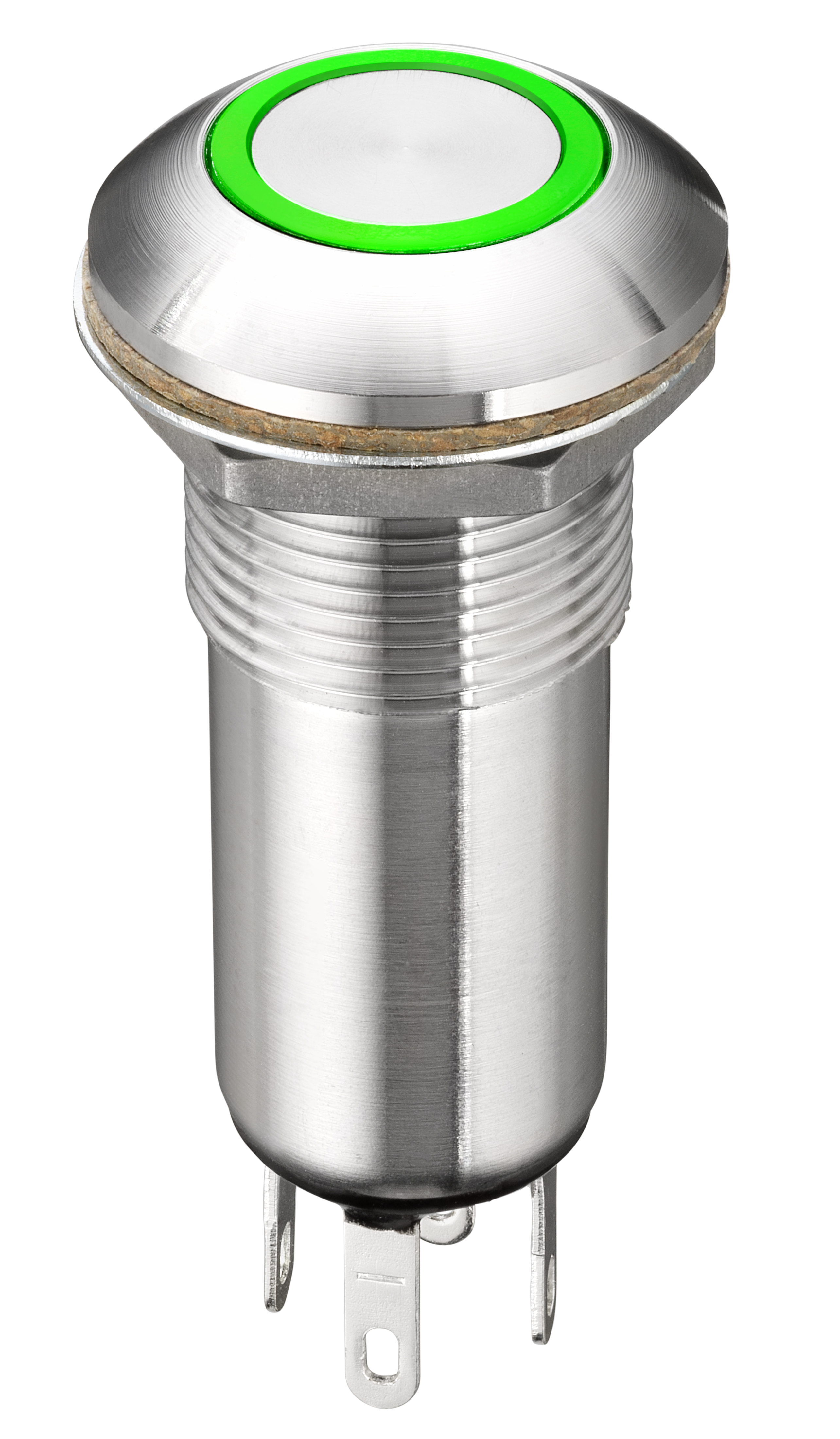

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11J3215
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-A11J3215

Detailed Description

Introducing the LP3A11J3215, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a durable aluminum housing and a vandal-resistant design, this switch is built to withstand tough conditions. With an IP6K8S rating, it offers complete protection against dust and water ingress. The illuminated button with amber backlighting ensures visibility even in low-light situations. Its momentary action and SPST-NO contact configuration make it ideal for applications where a temporary connection is required. Operating at a voltage rating of 115 VAC or 28 VDC, and with a current rating of 5A, this switch is suitable for a wide range of industrial and commercial settings. The sleek silver finish and flush profile actuator add a touch of style to any panel. Trust the LP3A11J3215 for robust performance and long-lasting durability.
