LP3-A11J3224

OTTLP3_A11J3224
Heilind Number:OTTLP3-A11J3224
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11J3224
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

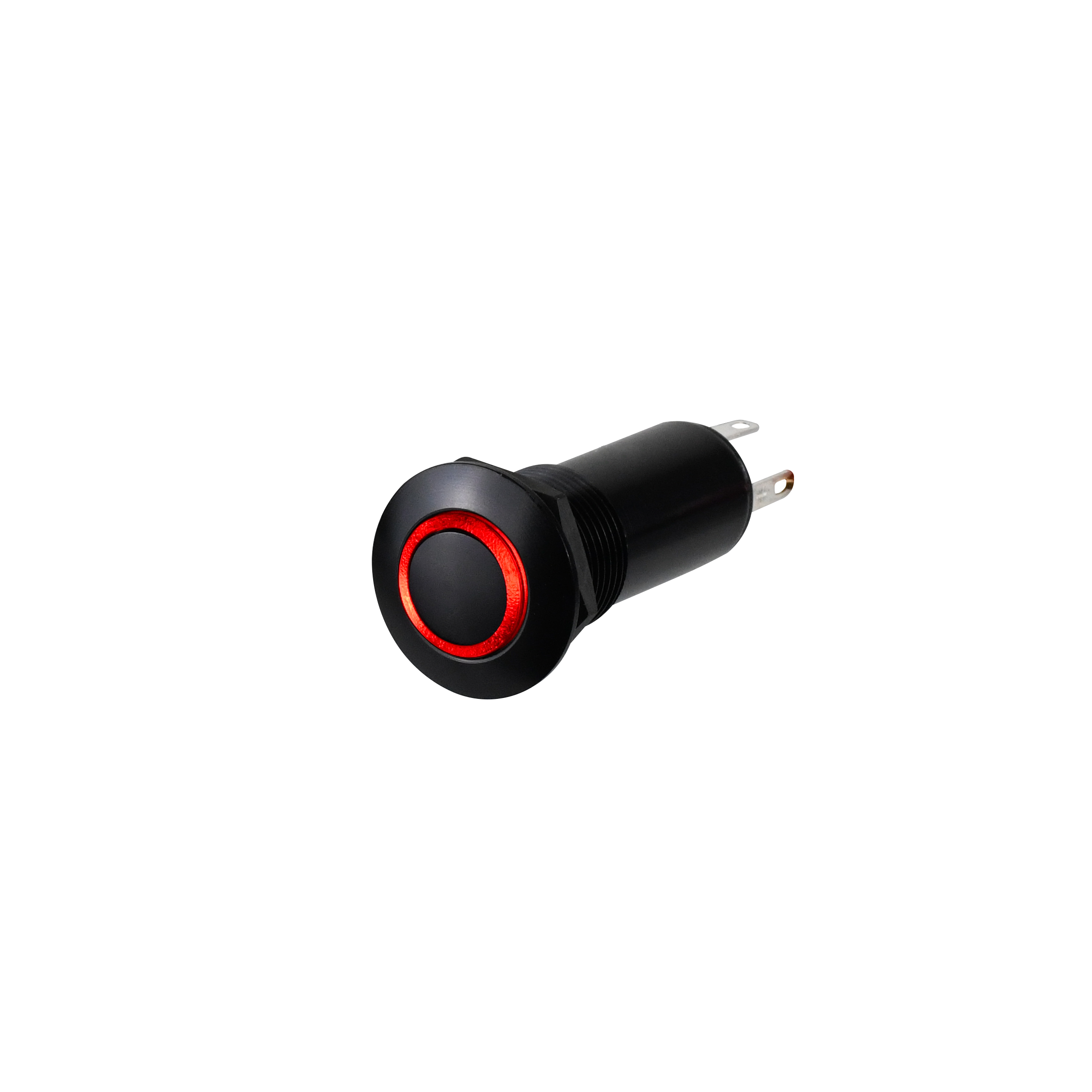

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11J3224
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-A11J3224

Detailed Description

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch. The LP3 series push button switch, with SKU LP3-A11J3224, is designed for durability and reliability in demanding environments. Featuring a low profile curved button actuator, this switch is ideal for panel mount applications. The black housing and cap, along with IP6K8S ingress protection rating, ensure resistance to tampering and harsh conditions. With a contact configuration of SPST-NO and contact material of brass with silver plating, it guarantees high conductivity and longevity. The switch offers a maximum current rating of 5A and voltage ratings of 115VAC and 28VDC, making it suitable for various power applications. The amber illumination, powered by 12V, provides clear indication in low light settings. Operating temperature range from -55°C to 85°C, and a durability rating of 25,000 cycles, further enhance its performance and lifespan. Perfect for industrial, automotive, or outdoor use, this push button switch combines robust construction with functional illumination for reliable operation.
