LP3-A11L3211

OTTLP3_A11L3211
Heilind Number:OTTLP3-A11L3211
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11L3211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

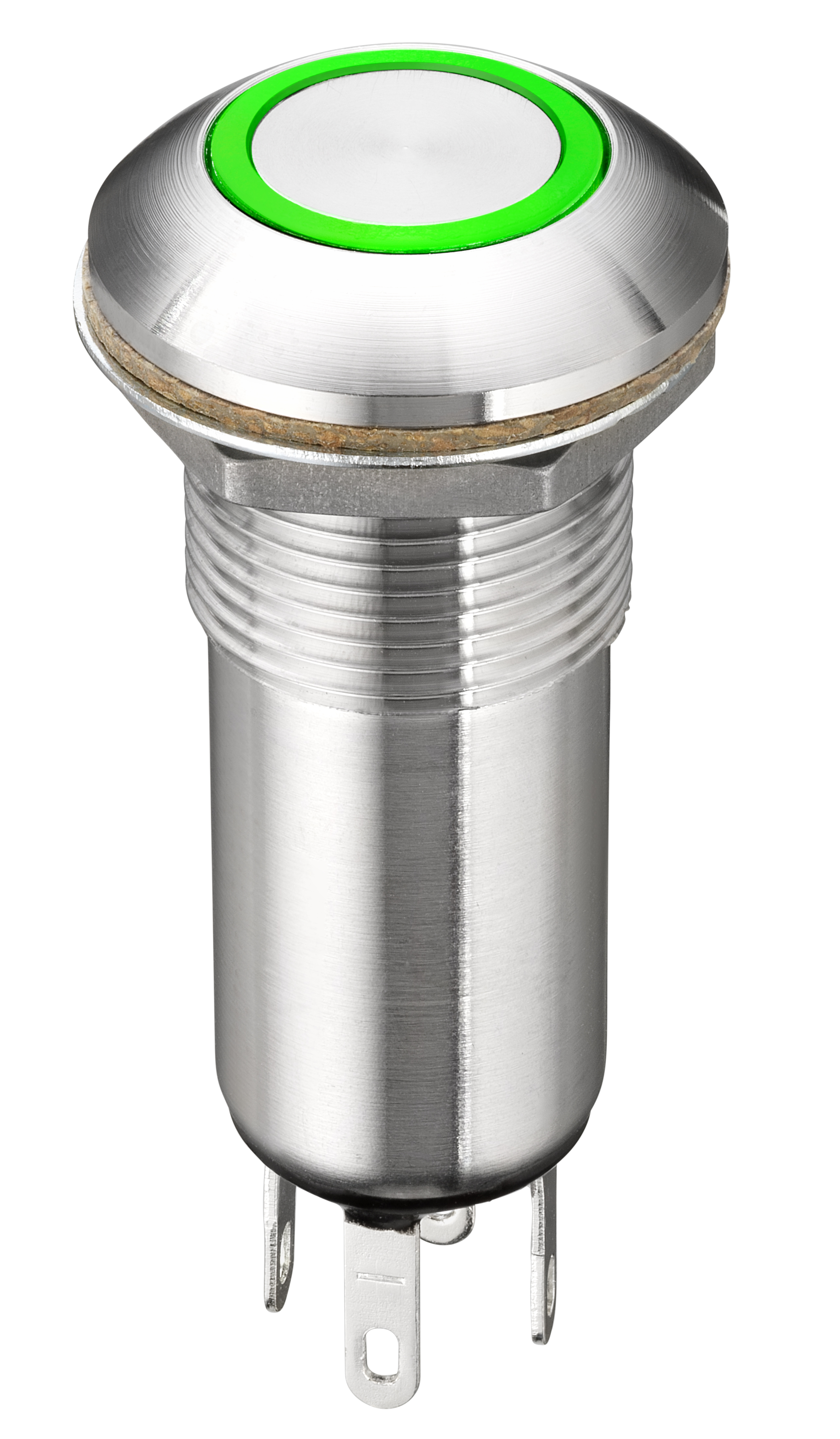

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11L3211
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP3-A11L3211

Detailed Description

Introducing the LP3 series Vandal Resistant Pushbutton Switch, designed for rugged environments where durability and reliability are essential. Featuring a high-profile flat button with a round shape, this switch is ideal for panel mounting applications. The silver aluminum housing and thermoplastic actuator ensure robust construction, while the IP6K8S sealing offers protection against dust and water ingress. With a green illuminated button for easy visibility, this switch is perfect for use in low-light conditions. The momentary action, SPST-NO contact configuration, and 5A current rating make it suitable for various industrial and commercial applications. Operating efficiently in temperatures ranging from -55°C to 85°C, this switch guarantees performance in harsh conditions. Trust the LP3A11L3211 for a dependable and long-lasting pushbutton solution.
