LP3-A11Q3221

OTTLP3_A11Q3221
Heilind Number:OTTLP3-A11Q3221
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11Q3221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

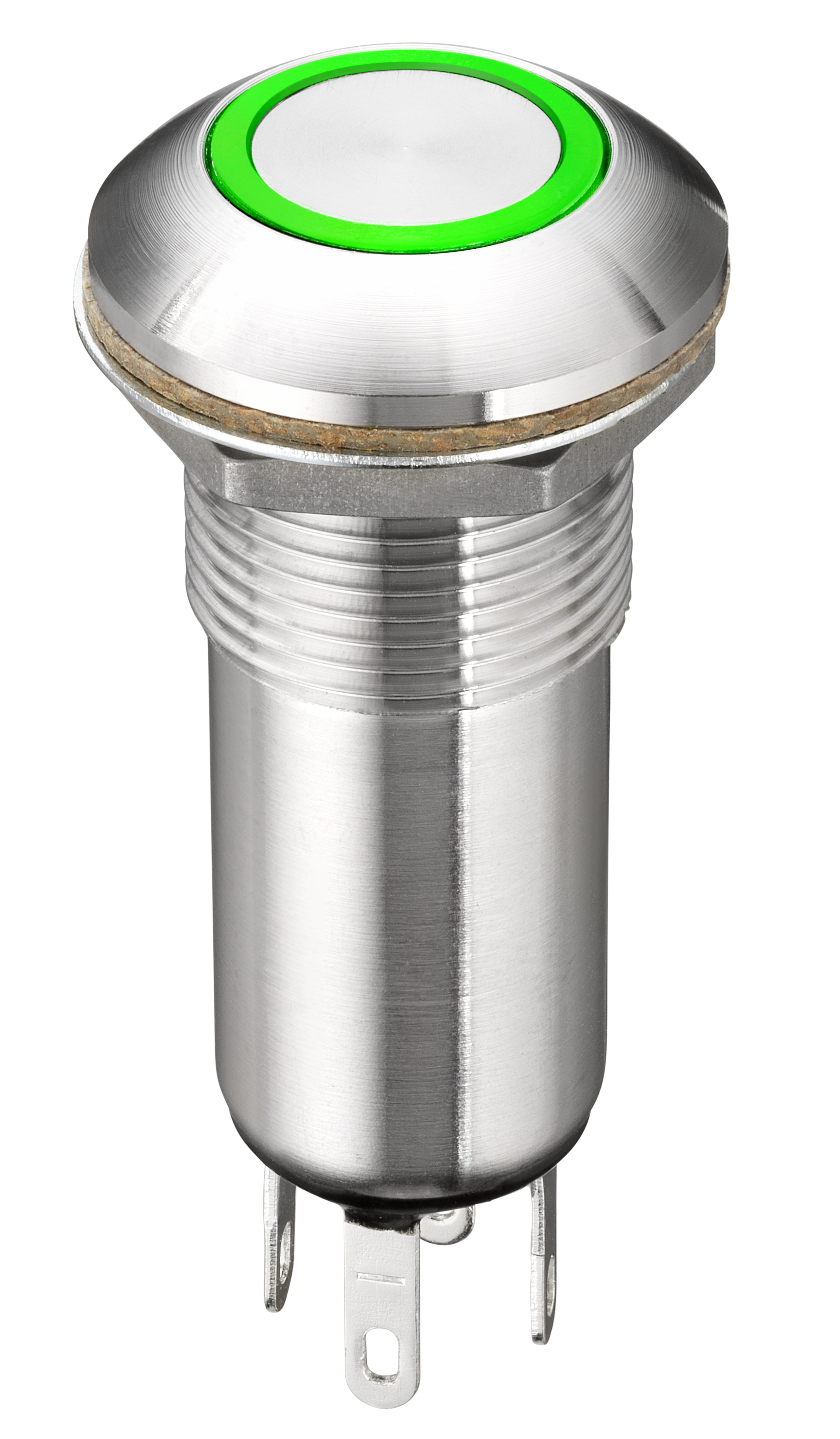

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11Q3221
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-A11Q3221

Detailed Description

Introducing the LP3A11Q3221 Vandal Resistant Sealed Illuminated Momentary Action Aluminum Pushbutton Switch, designed for durability and reliability in demanding environments. With a sleek black finish and a high-profile flat button actuator, this switch is not only stylish but also easy to operate. The blue illumination adds a modern touch while providing visual feedback. Featuring a robust construction with an IP6K8S rating, this switch is suitable for use in harsh conditions. The SPST-NO contact configuration ensures reliable performance, while the 25,000-cycle durability rating guarantees a long lifespan. Ideal for panel mounting, this switch is perfect for applications where security and functionality are paramount. Upgrade to the LP3A11Q3221 for a premium pushbutton switch experience.
