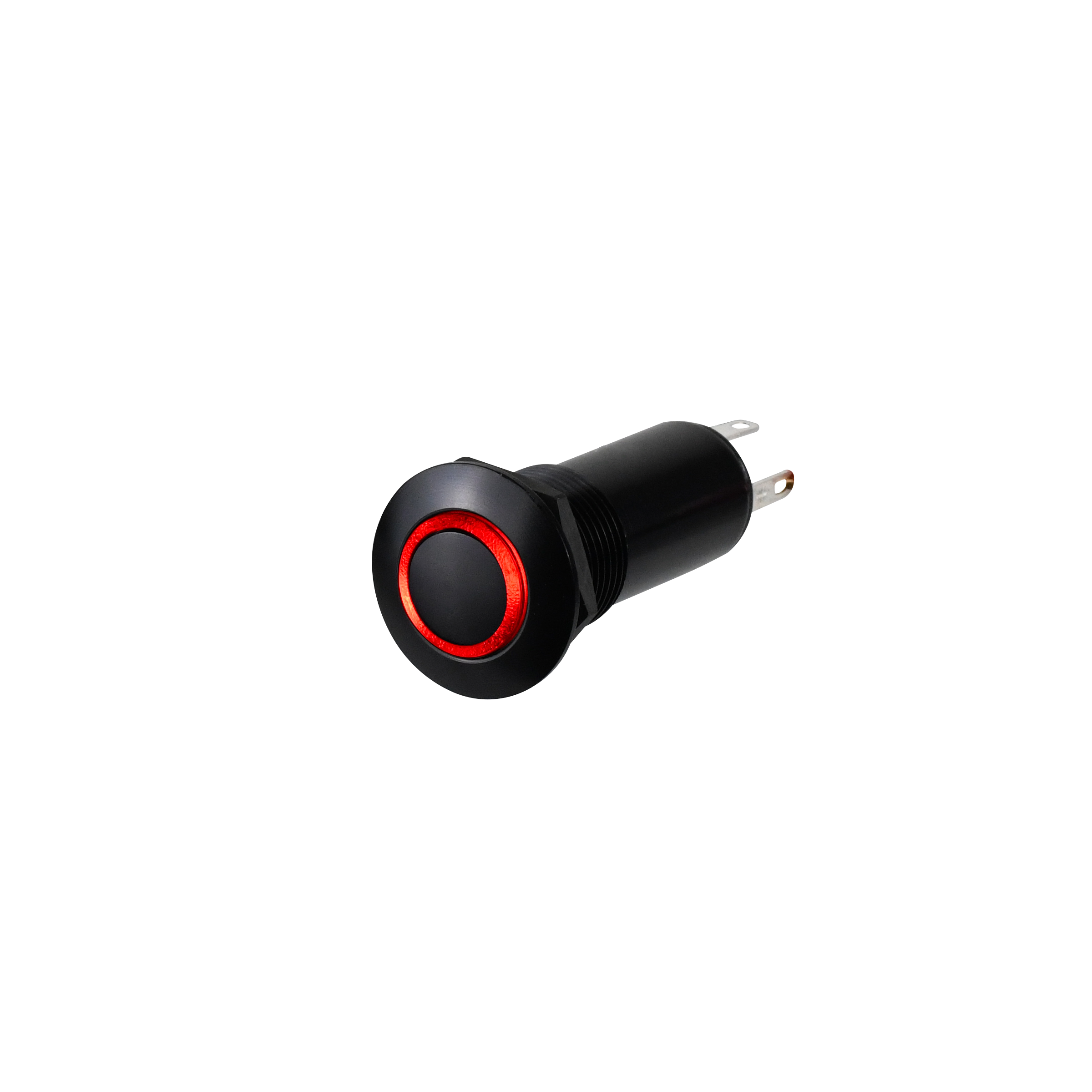

LP3-A11Q3224

OTTLP3_A11Q3224
Heilind Number:OTTLP3-A11Q3224
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11Q3224
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11Q3224
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-A11Q3224

Detailed Description

The LP3A11Q3224 is a high-quality vandal-resistant pushbutton switch designed for durability and reliability in demanding environments. Featuring a low-profile curved button with a round shape, this switch is perfect for panel mounting applications. Its black aluminum housing and thermoplastic actuator ensure long-lasting performance, while the IP6K8S sealing protects it from dust and water ingress. The blue illuminated button provides visual feedback, with a 12V illumination voltage. With a momentary action and SPST-NO contact configuration, this switch is ideal for various industrial and commercial uses. Silver-plated brass contacts offer excellent conductivity, and a 5A current rating allows for reliable operation. With a wide operating temperature range of -55°C to 85°C and a durability rating of 25,000 cycles, the LP3A11Q3224 is a rugged and dependable choice for your switching needs.
