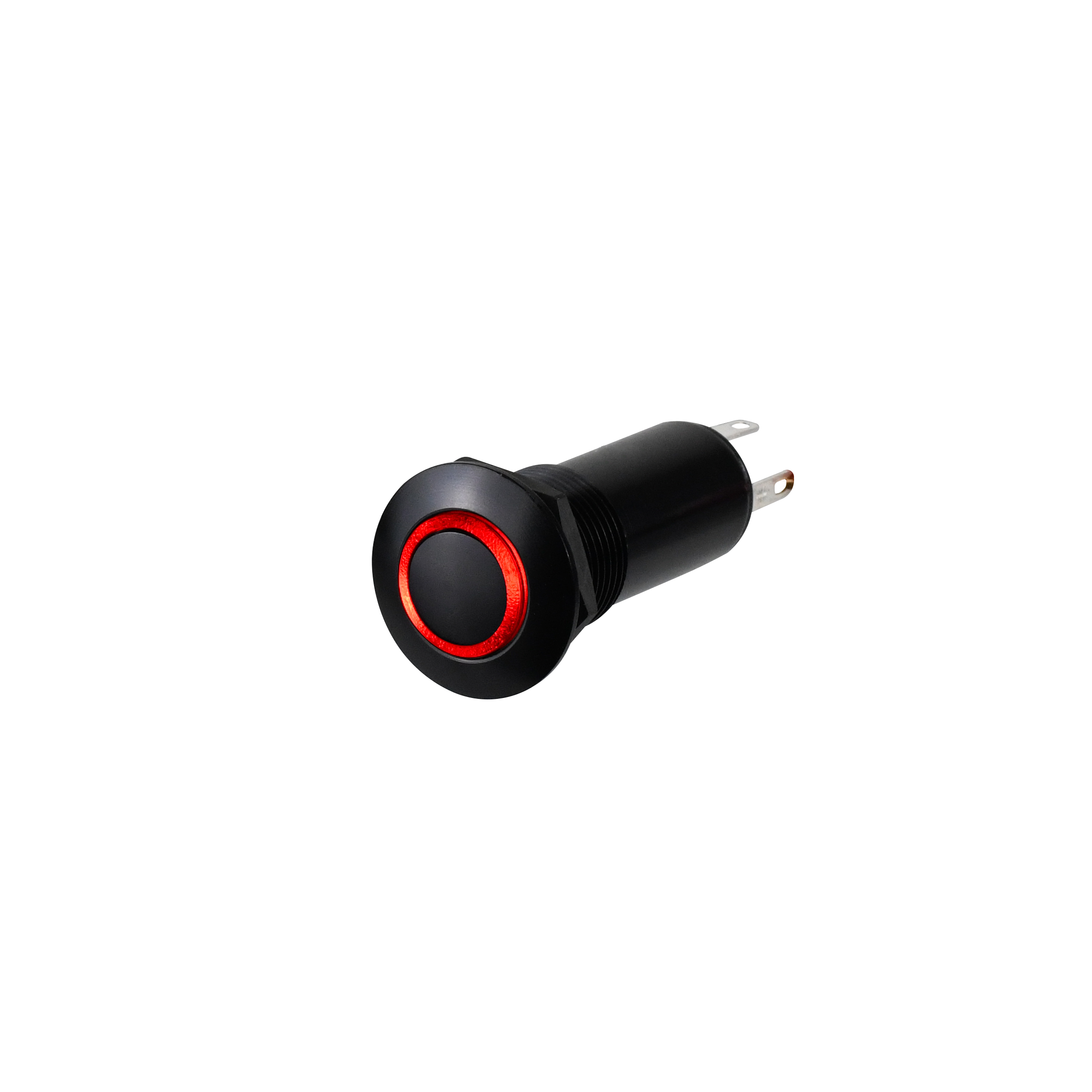

LP3-A11U3224

OTTLP3_A11U3224
Heilind Number:OTTLP3-A11U3224
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A11U3224
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A11U3224
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP3-A11U3224

Detailed Description

The LP3-A11U3224 is a rugged and reliable pushbutton switch designed for demanding environments. Featuring a low profile curved button design, it offers a sleek and modern look while providing tactile feedback during operation. The deep green illuminated button ensures visibility even in low light conditions, and with an IP6K8S rating, it is sealed against dust and water ingress. Constructed with a durable aluminum housing and thermoplastic actuator, this switch is built to withstand harsh industrial settings. The SPST-NO contact configuration allows for momentary action, making it ideal for applications requiring precise control. With a maximum operating temperature of 85°C and a minimum of -55°C, it can perform reliably in a wide range of temperatures. Panel mount installation and solder termination ensure easy and secure integration into your system. Whether used in automotive, marine, or industrial equipment, the LP3A11U3224 is the perfect choice for a vandal-resistant, sealed, and illuminated pushbutton switch.
