LP3-A13G3214

OTTLP3_A13G3214
Heilind Number:OTTLP3-A13G3214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A13G3214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

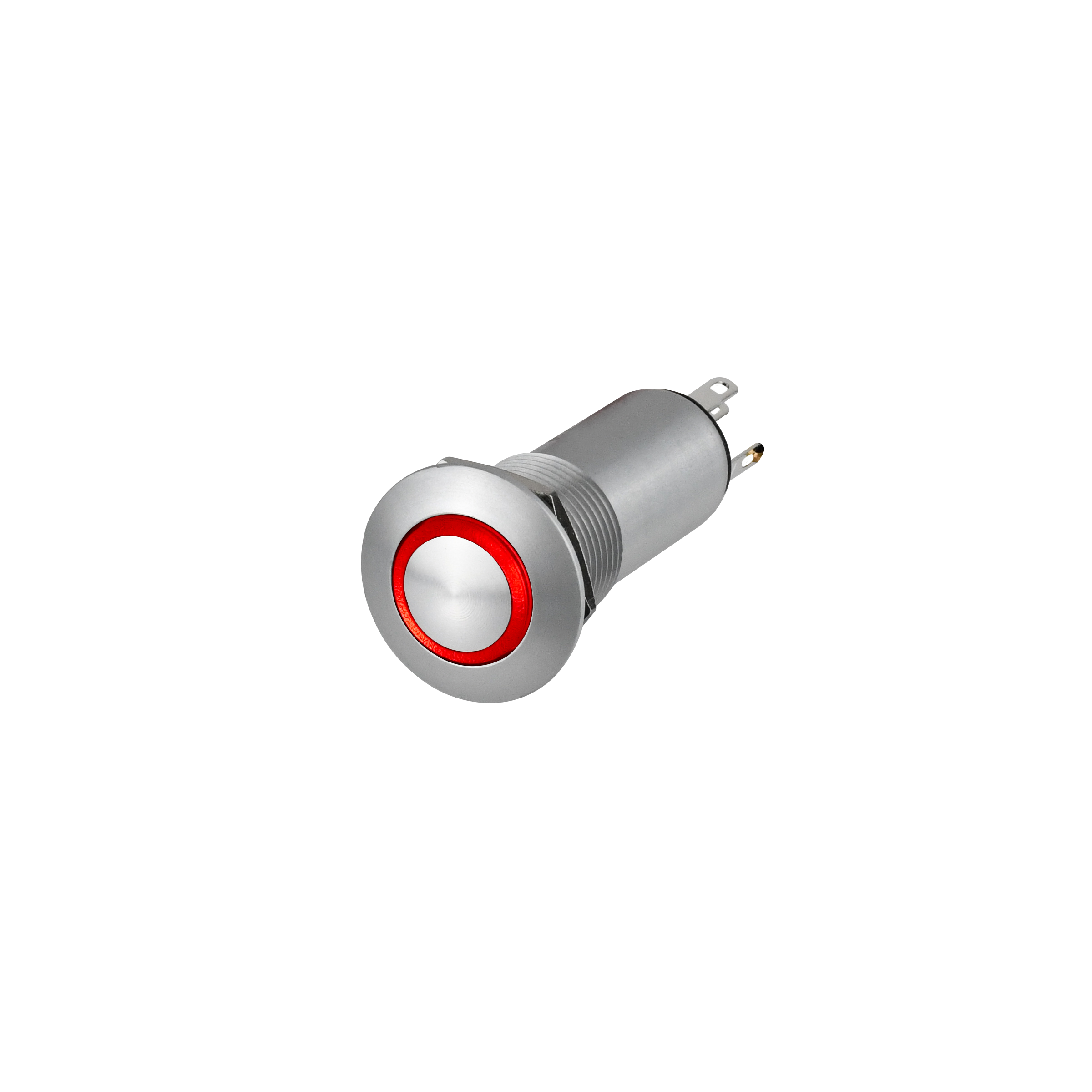

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A13G3214
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP3-A13G3214

Detailed Description

Introducing the LP3A13G3214, a rugged and reliable pushbutton switch designed for demanding environments. With a durable aluminum housing and IP6K8S sealing, this switch is built to withstand the elements. The silver cap and button, along with red illumination, not only enhance visibility but also add a touch of modern sophistication. Featuring a momentary action, SPDT contact configuration, and a 5A current rating, it ensures seamless operation in a variety of applications. The low profile curved button and panel mount design offer ergonomic use and easy installation. With a wide operating temperature range of -55°C to 85°C, this switch is suitable for both indoor and outdoor use. Trust the LP3A13G3214 for high performance and longevity in your control panel or device.
