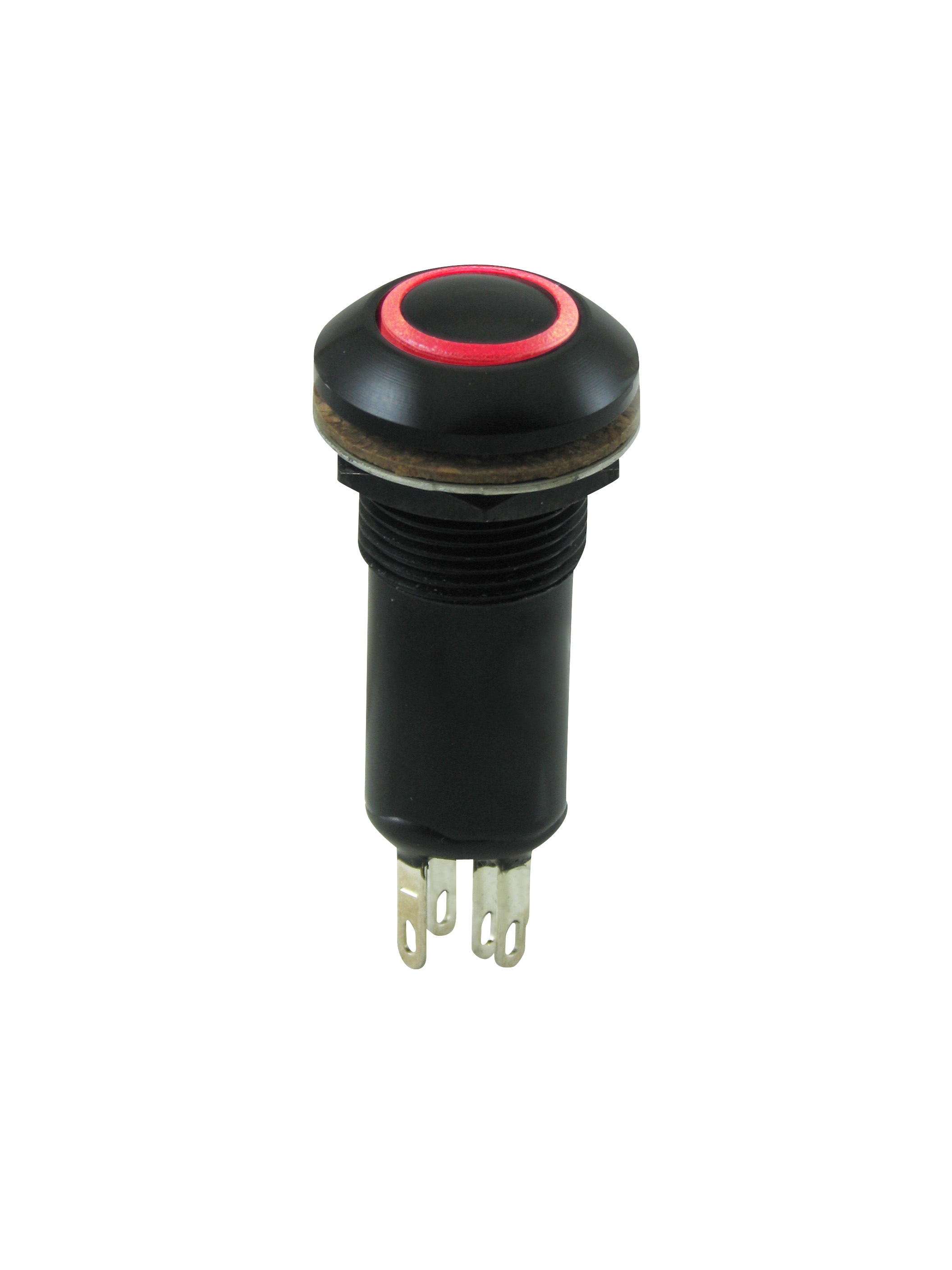

LP3-A13G3223

OTTLP3_A13G3223
Heilind Number:OTTLP3-A13G3223
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A13G3223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A13G3223
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP3-A13G3223

Detailed Description

Introducing the LP3A13G3223, a high-performance push button switch designed for durability and reliability in demanding environments. With a sleek black aluminum housing and a vandal-resistant design, this switch is perfect for applications where ruggedness is essential. Featuring a sealed construction and an IP6K8S rating, it provides protection against dust, water, and harsh elements. The illuminated red button ensures visibility even in low light conditions, while the momentary action and SPDT contact configuration offer precise control. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of industrial and commercial applications. Trust in the LP3A13G3223 for long-lasting performance in any setting.
