LP3-A13M3221

OTTLP3_A13M3221
Heilind Number:OTTLP3-A13M3221
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A13M3221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

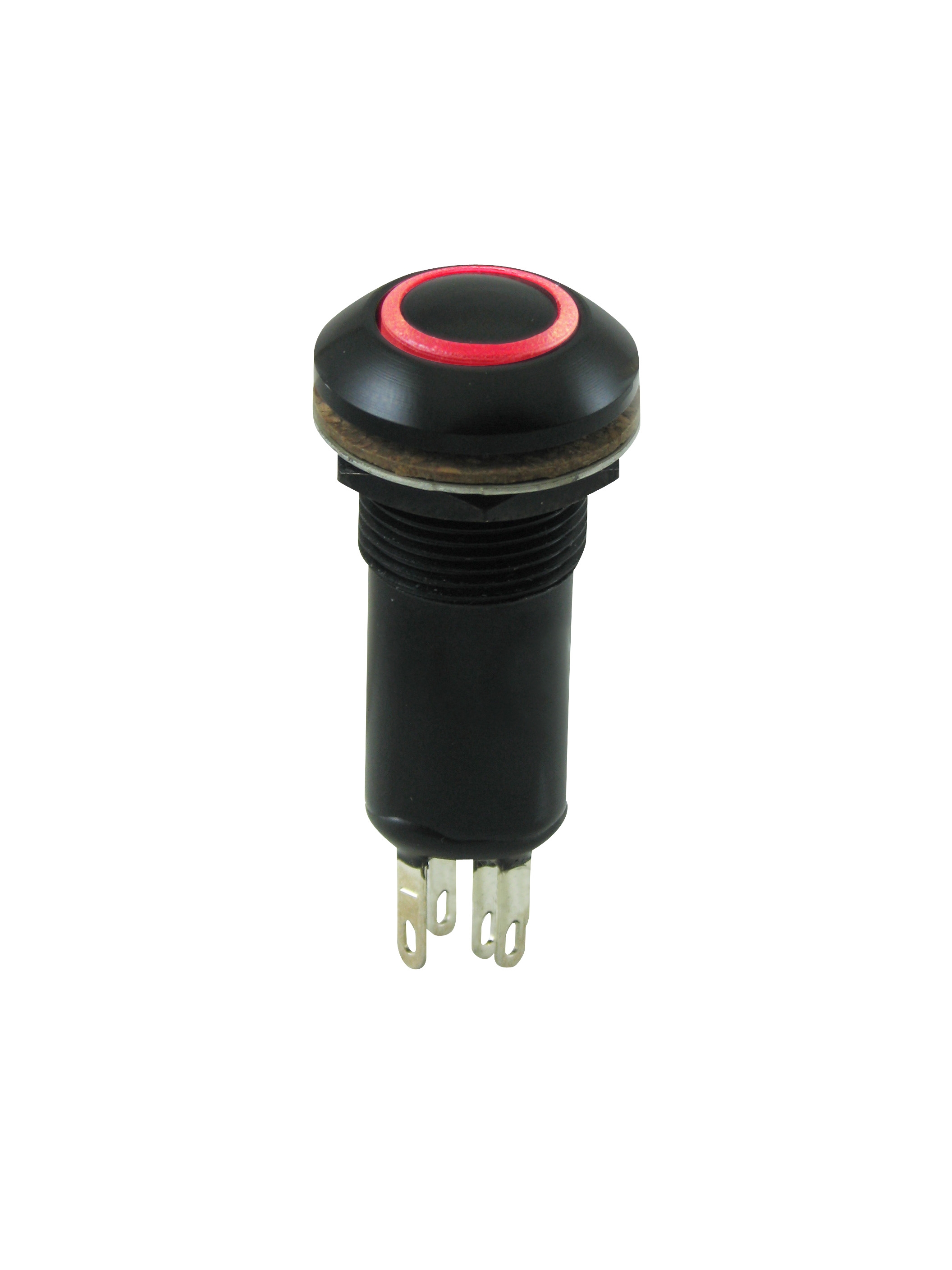

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A13M3221
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
SKU:OTTLP3-A13M3221

Detailed Description

Introducing the LP3A13M3221, a high-performance pushbutton switch designed for durability and reliability in harsh environments. Boasting an IP6K8S ingress protection rating and a rugged aluminum housing, this switch is vandal-resistant and sealed against dust and water ingress. Featuring a sleek black design with illuminated amber lighting, it offers heightened visibility even in low-light conditions. The momentary action, SPDT contact configuration, and 5A current rating make it ideal for a wide range of applications. With a wide operating temperature range of -55°C to 85°C, it ensures reliable performance in extreme conditions. Panel mountable and solder terminated, it offers easy installation in various setups. Trust the LP3A13M3221 for robust and long-lasting switching solutions.
