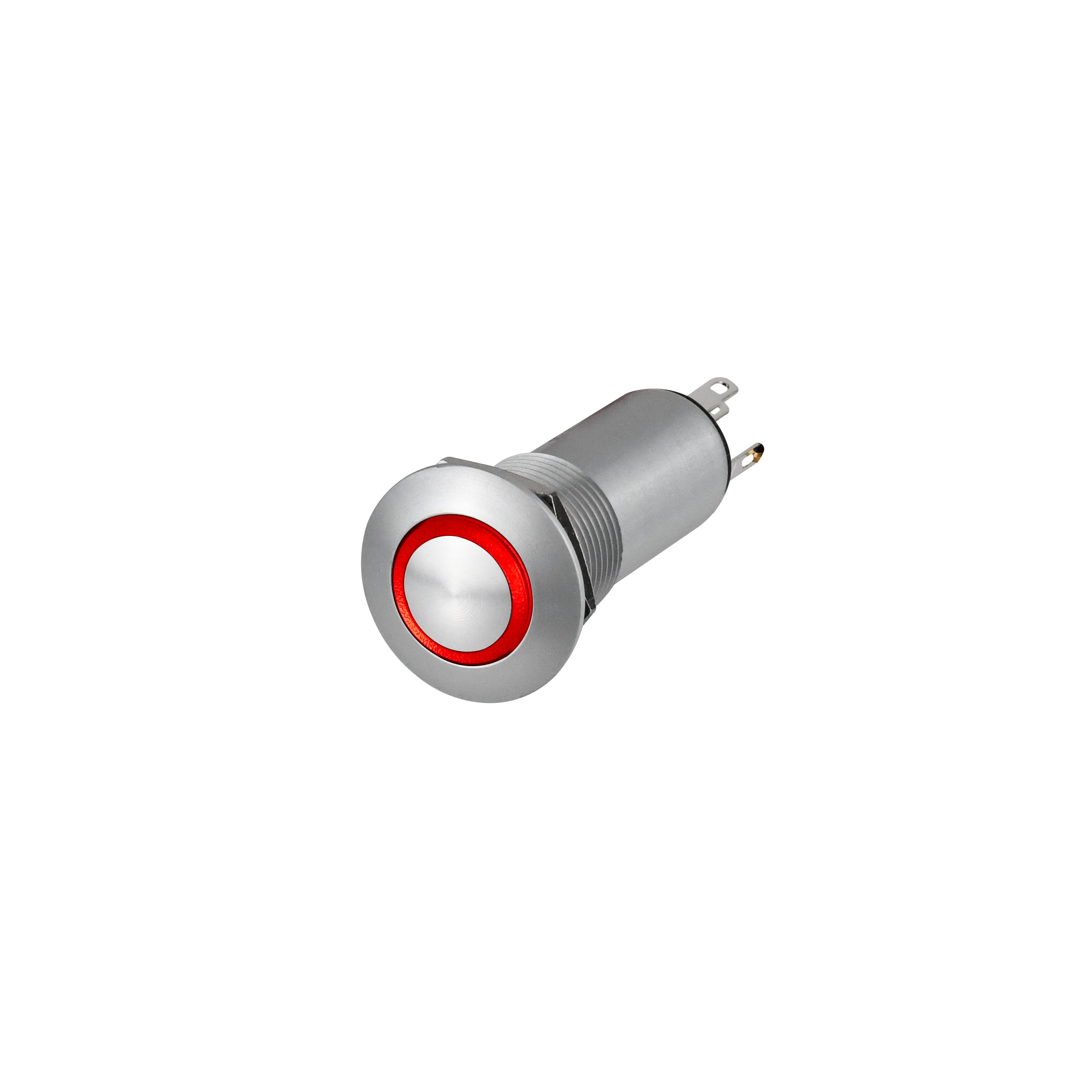

LP3-A13P2214

OTTLP3_A13P2214
Heilind Number:OTTLP3-A13P2214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A13P2214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A13P2214
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:6 V
SKU:OTTLP3-A13P2214

Detailed Description

The LP3A13P2214 is a versatile and durable pushbutton switch ideal for a wide range of applications. Featuring a low profile curved button design with a round actuator shape, it offers a sleek and modern look. The silver housing and cap color give it a professional appearance, while the blue illuminated button adds a touch of style. With a sealed construction and an IP6K4S rating, it is resistant to harsh environments, making it suitable for outdoor or industrial use. The momentary action switch with SPDT contact configuration provides reliable performance, with a 5A current rating and 25,000 cycle durability. Panel mount installation and solder termination make it easy to integrate into any system. Operating at temperatures ranging from -55°C to 85°C, it is suitable for use in extreme conditions. The LP3A13P2214 is the perfect choice for those seeking a high-quality, vandal-resistant pushbutton switch.
