LP3-A13R2212

OTTLP3_A13R2212
Heilind Number:OTTLP3-A13R2212
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A13R2212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

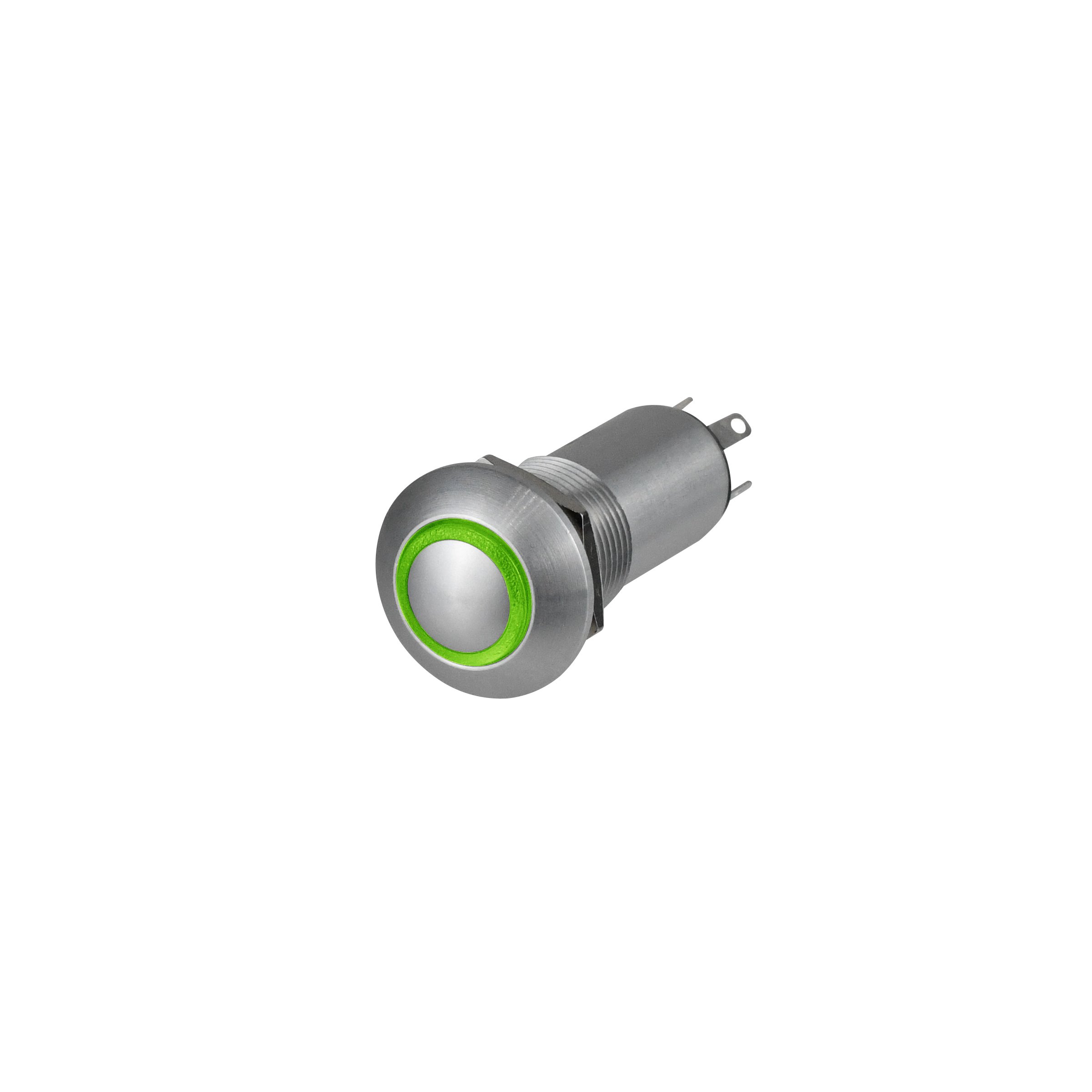

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A13R2212
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.18 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:24 V
SKU:OTTLP3-A13R2212

Detailed Description

Introducing the LP3A13R2212 Vandal Resistant, Sealed, Illuminated Pushbutton Switch, designed for durability and reliability in demanding environments. Featuring a high profile curved button actuator with a round shape and blue illumination, this switch offers a sleek and user-friendly interface. With an IP6K4S rating and aluminum housing, it is well-suited for outdoor or industrial applications. The SPDT contact configuration, along with a 5A current rating, ensures versatile and efficient performance. Rated for 25,000 cycles and operating in a wide temperature range from -55°C to 85°C, this switch is built to last. Ideal for panel mounting, it is perfect for use in control panels, machinery, and other equipment. Trust in the LP3A13R2212 for high-quality, long-lasting pushbutton switching solutions.
