LP3-A13V3213

OTTLP3_A13V3213
Heilind Number:OTTLP3-A13V3213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A13V3213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

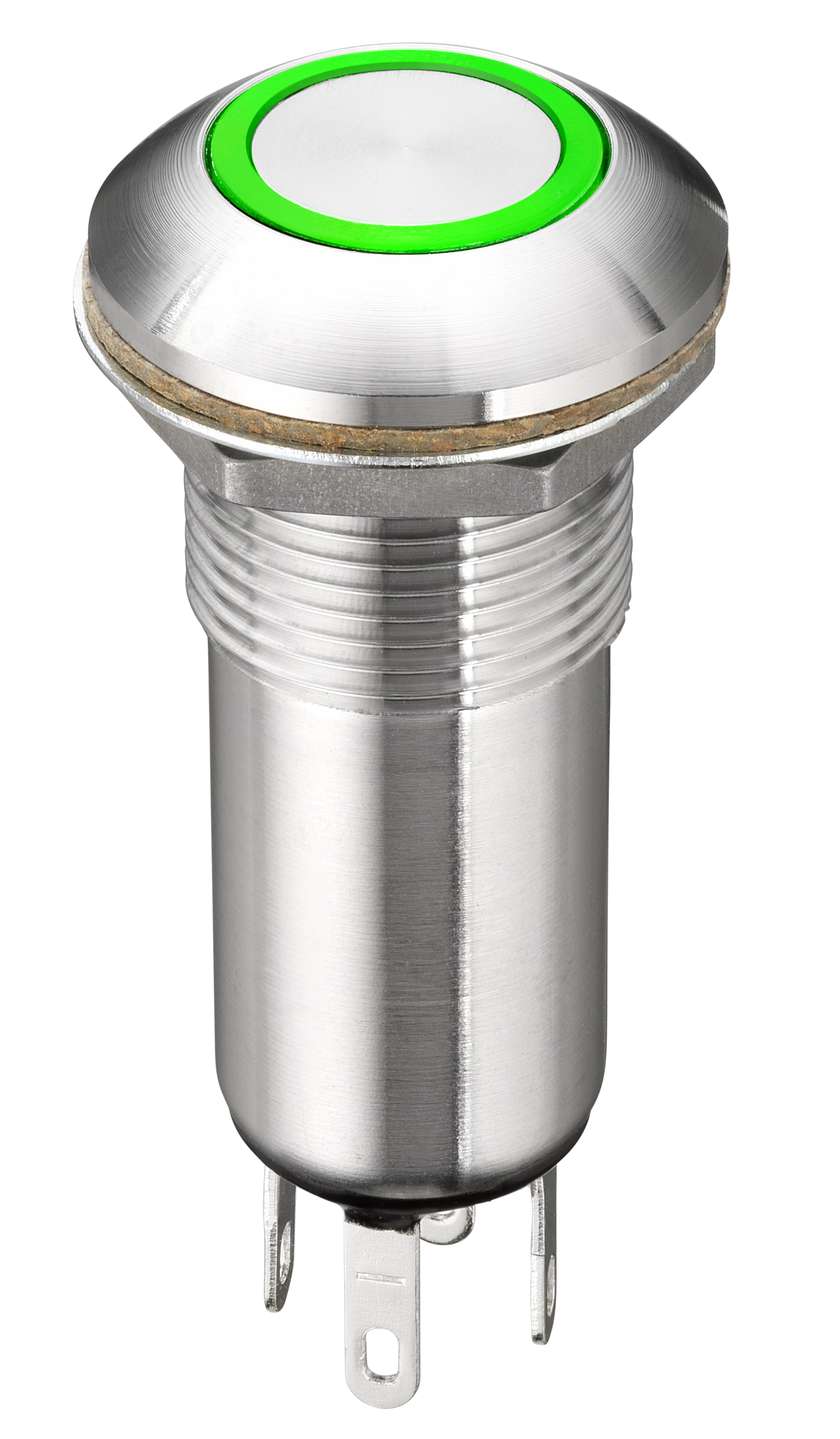

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A13V3213
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:24 V
SKU:OTTLP3-A13V3213

Detailed Description

Introducing the LP3A13V3213, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a sleek silver housing with an IP6K8S rating for superior dust and water resistance, this illuminated switch is perfect for industrial and outdoor applications. The low profile flat button offers a comfortable actuation experience, while the deep green LED illumination adds a touch of style. With a durable aluminum case and sealed construction, it can withstand harsh conditions with ease. The SPDT contact configuration and momentary action make it ideal for controlling power or signal circuits. Rated for 5A at 115VAC or 28VDC, this switch is suitable for a wide range of applications. Whether you need a reliable control solution for your machinery or outdoor equipment, the LP3A13V3213 is up to the task.
