LP3-A31A3525

OTTLP3_A31A3525
Heilind Number:OTTLP3-A31A3525
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A31A3525
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

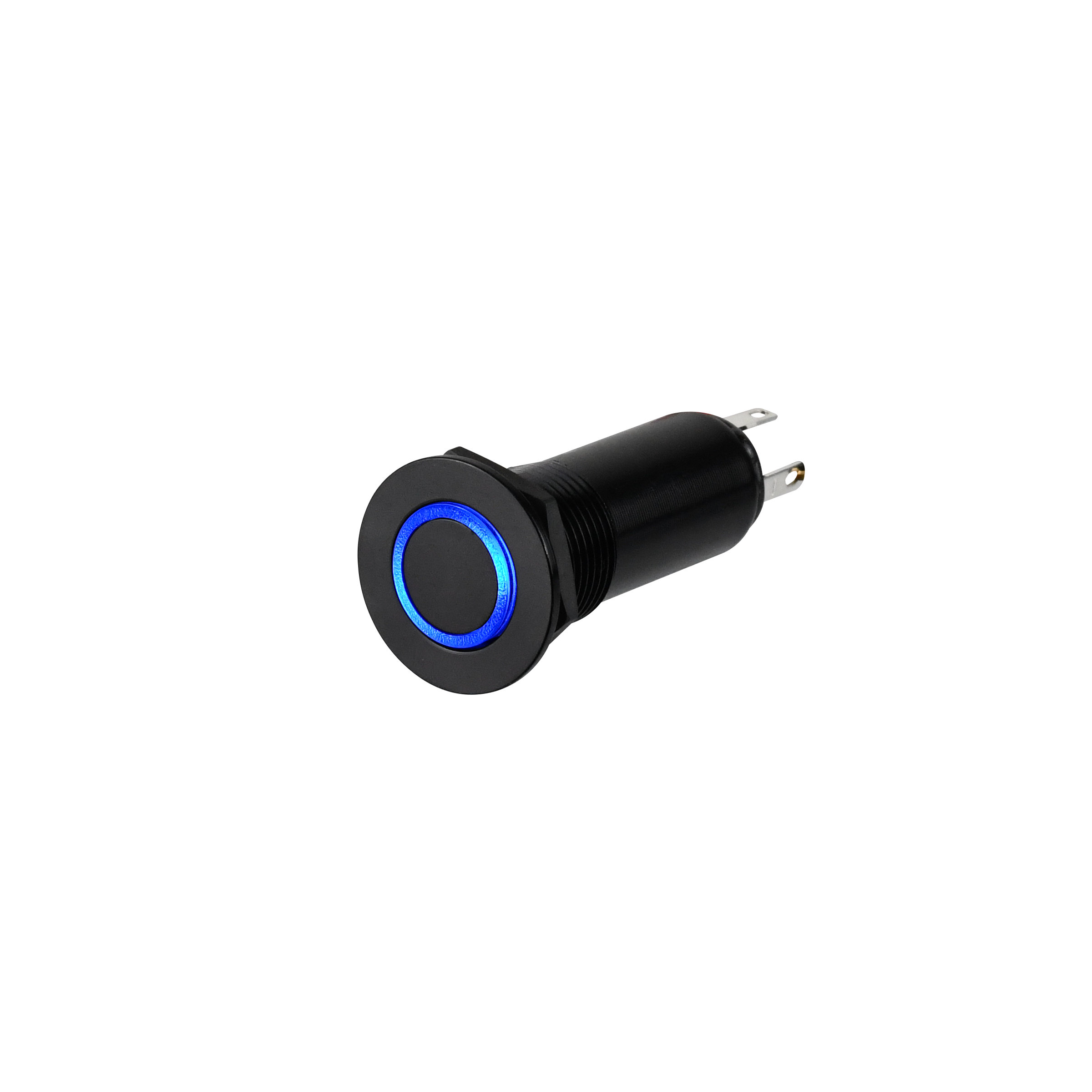

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A31A3525
Series:LP3
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flush Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A31A3525

Detailed Description

Introducing the LP3A31A3525 Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum Pushbutton Switch. This high-performance switch features a durable construction with a black aluminum case and a flush profile flat black actuator. It is designed for panel mounting and offers a reliable sealing with an IP6K8S rating, making it suitable for harsh environments. The switch is illuminated with a vibrant red LED, providing clear indication of its status. With a contact configuration of SPST-NO and a contact material of brass with silver plating, it ensures excellent conductivity. Operating at a maximum temperature of 85°C and a minimum of -55°C, it is suitable for a wide range of applications. The LP3A31A3525 is a top choice for those in need of a rugged, high-quality pushbutton switch that delivers optimal performance.
