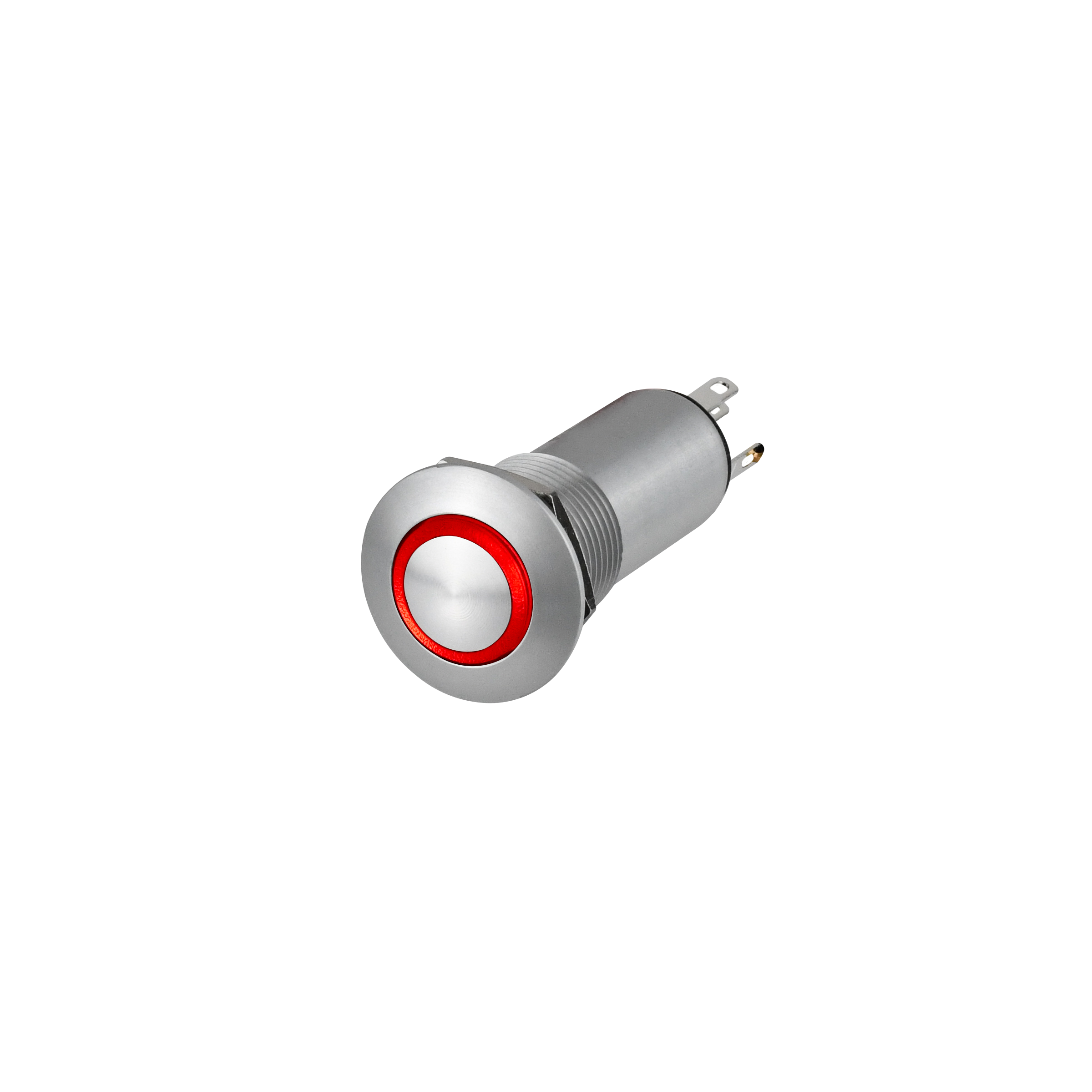

LP3-A31J2214

OTTLP3_A31J2214
Heilind Number:OTTLP3-A31J2214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A31J2214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A31J2214
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-A31J2214

Detailed Description

Introducing the LP3A31J2214 Vandal Resistant Sealed Illuminated Momentary Action Aluminum Pushbutton Switch, a high-performance solution for demanding environments. With a sleek silver finish and durable construction, this switch is designed to withstand rugged use. Featuring a low profile curved button actuator with a round shape, it offers a comfortable and intuitive user experience. The SPST-NO contact configuration ensures reliable operation, while the 25,000 cycle durability rating guarantees long-lasting performance. Illuminated with amber light and rated for 115VAC/28VDC, this switch is suitable for a variety of applications. Panel mount installation and solder termination make it easy to integrate into your system. Whether used in industrial machinery, transportation vehicles, or outdoor equipment, the LP3A31J2214 is the perfect choice for reliable and efficient switching.
