LP3-A31Q2214

OTTLP3_A31Q2214
Heilind Number:OTTLP3-A31Q2214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A31Q2214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

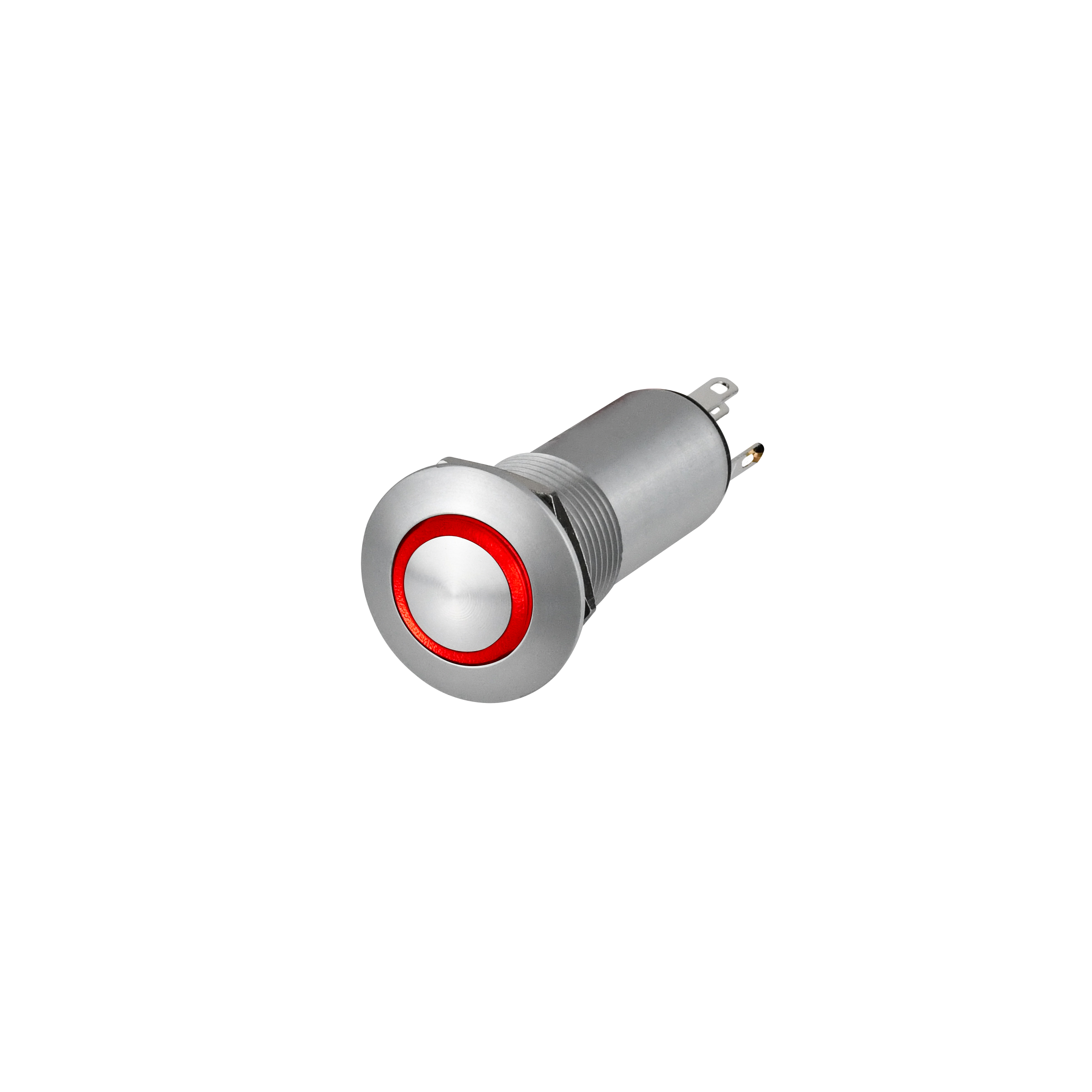

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A31Q2214
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-A31Q2214

Detailed Description

Introducing the LP3A31Q2214, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a sleek silver aluminum housing with a vandal-resistant design, this switch is perfect for applications where durability is essential. The illuminated blue button allows for easy visibility, while the momentary action ensures quick and responsive operation. With a sealed construction and IP6K4S rating, it offers protection against dust and water ingress. The SPST-NO contact configuration and 5A current rating make it suitable for a variety of low-voltage applications. Whether used in industrial machinery or outdoor equipment, the LP3A31Q2214 guarantees long-lasting performance even in extreme temperatures ranging from -55°C to 85°C. Upgrade to this high-quality pushbutton switch for reliable operation in any situation.
