LP3-A31Q2225

OTTLP3_A31Q2225
Heilind Number:OTTLP3-A31Q2225
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A31Q2225
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

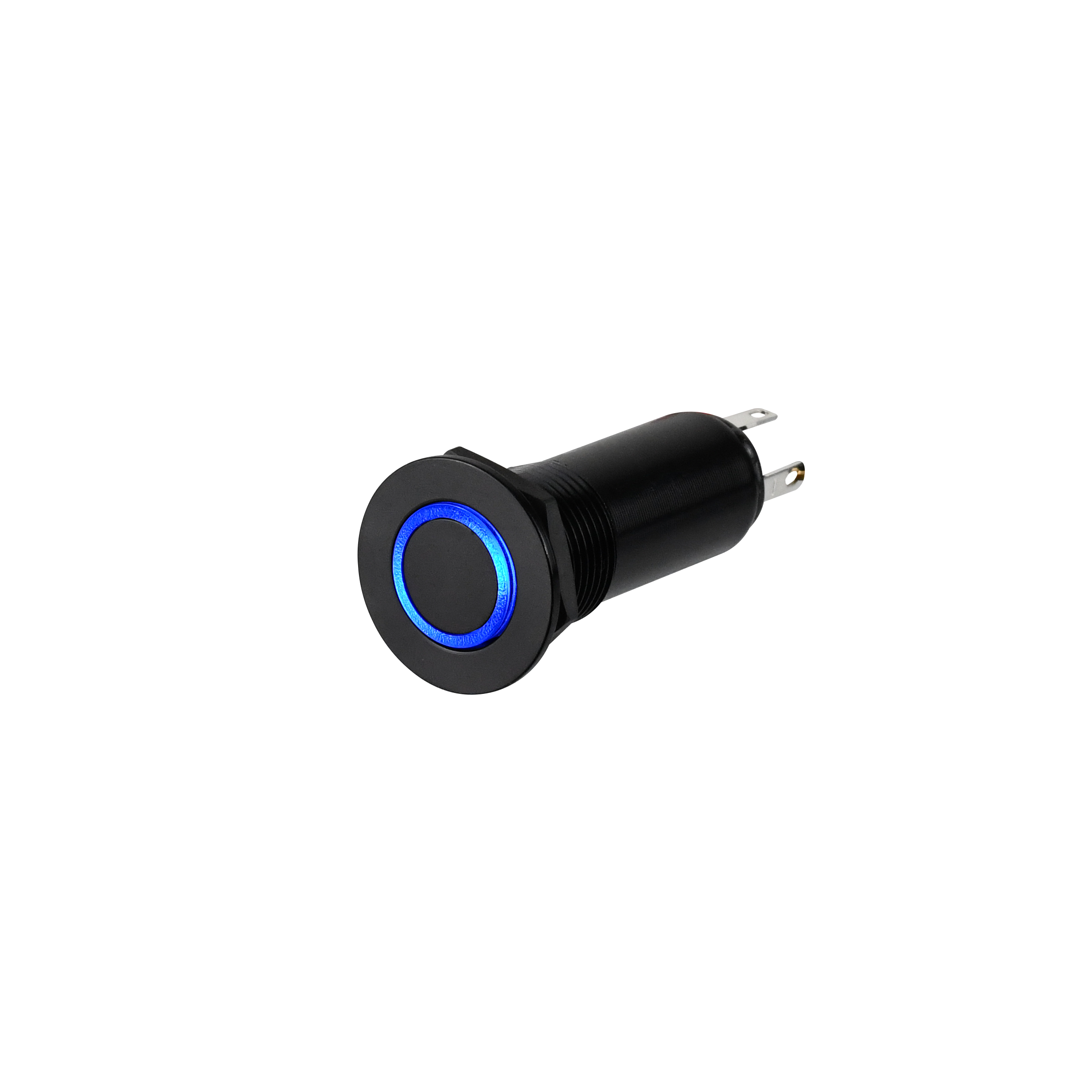

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A31Q2225
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-A31Q2225

Detailed Description

The LP3A31Q2225 is a high-performance pushbutton switch designed for durability and reliability in demanding environments. Featuring a black aluminum housing and a vandal-resistant design, this switch is perfect for industrial applications. The illuminated blue button allows for easy operation in low-light conditions, while the sealed construction ensures protection against dust and water ingress. With a momentary action and a current rating of 5A, it offers responsive and efficient performance. The SPST-NO contact configuration and silver contact plating guarantee a stable electrical connection. Operating at temperatures ranging from -55°C to 85°C, this switch is suitable for use in a wide range of settings. Trust the LP3A31Q2225 for your critical control needs.
