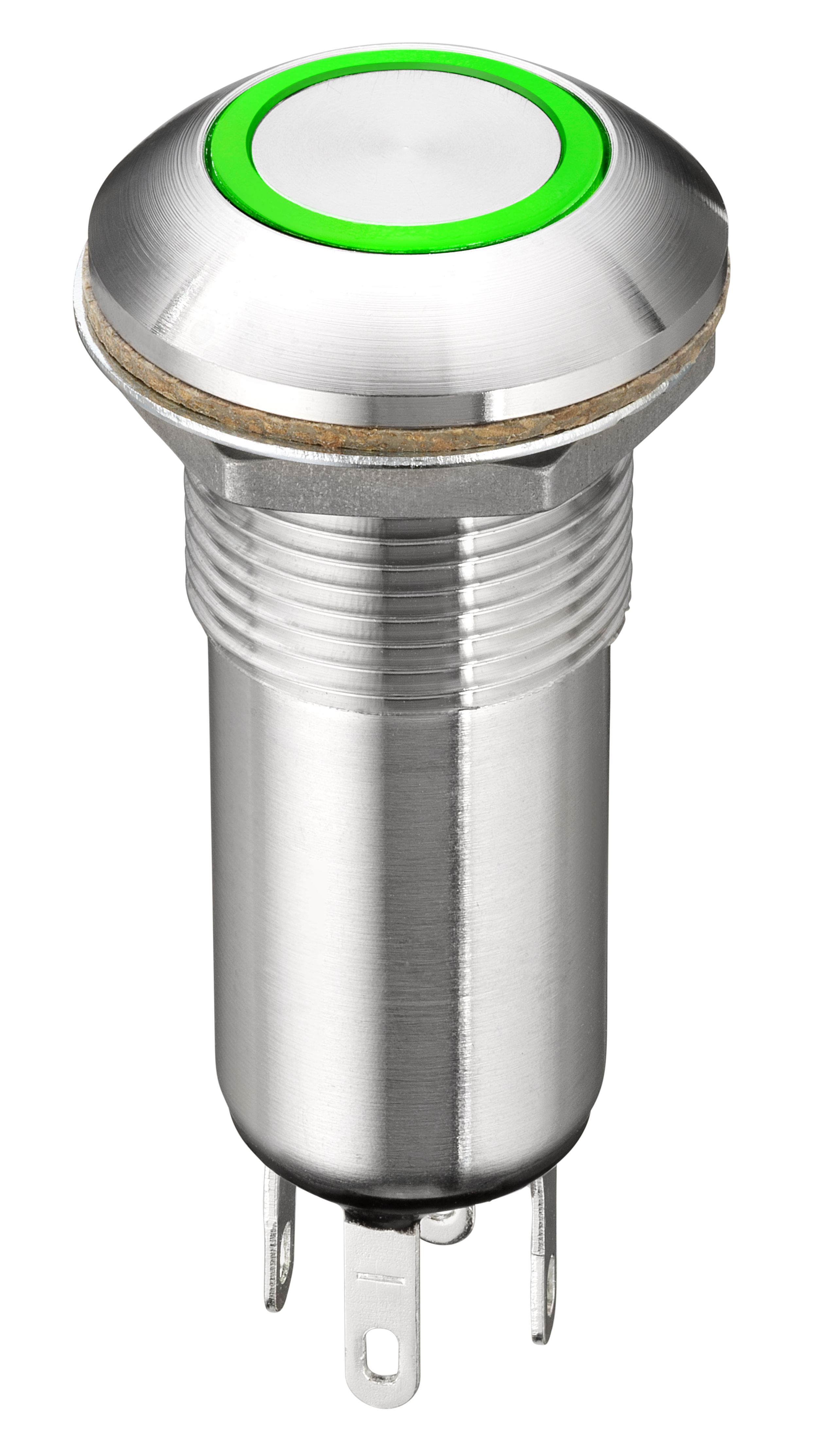

LP3-A32K3513

OTTLP3_A32K3513
Heilind Number:OTTLP3-A32K3513
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A32K3513
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A32K3513
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-A32K3513

Detailed Description

Introducing the LP3A32K3513, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a sleek silver exterior with an IP6K8S rating, this switch is both vandal-resistant and sealed against dust and water ingress. The illuminated red button with a low profile flat actuator offers easy visibility and operation, making it ideal for use in dimly lit areas. With a durable aluminum housing and thermoplastic actuator, this switch is built to withstand harsh conditions, while the brass contact material ensures reliable performance. Its momentary action and SPST-NC contact configuration provide precise control, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of applications. Whether you need a high-quality switch for industrial machinery, automotive controls, or marine equipment, the LP3A32K3513 is the perfect choice.
