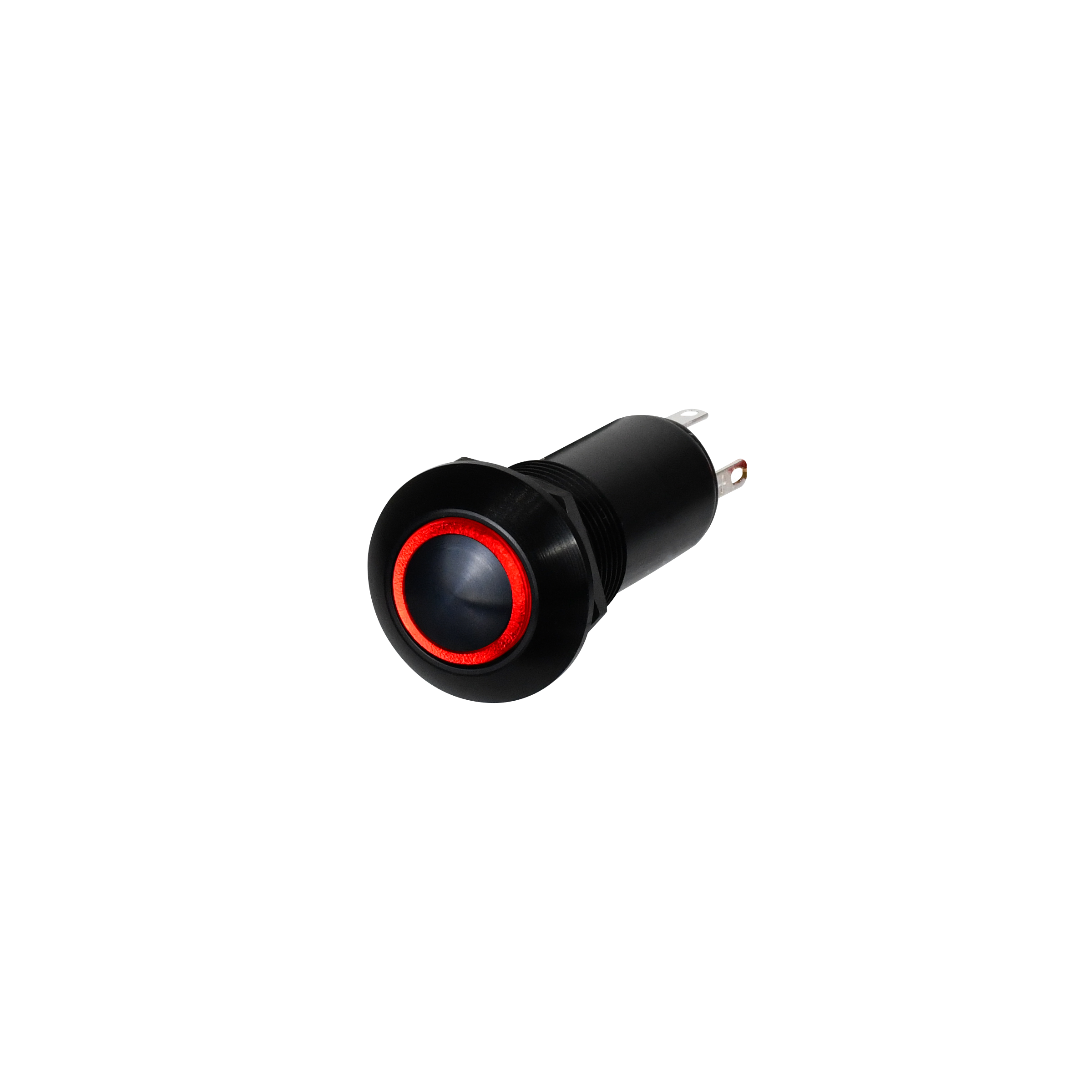

LP3-A33B3222

OTTLP3_A33B3222
Heilind Number:OTTLP3-A33B3222
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A33B3222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A33B3222
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP3-A33B3222

Detailed Description

Featuring a sleek black design and durable aluminum construction, the LP3A33B3222 pushbutton switch is the epitome of reliability. With an IP6K8S rating, it offers complete protection against dust and water ingress, making it ideal for use in harsh environments. The high-profile curved button, illuminated in a vibrant green color, provides easy visibility and operation. Boasting a SPDT contact configuration with silver-plated brass contacts, this switch ensures excellent conductivity and longevity. Perfect for panel mounting, it has a current rating of 5A and can handle voltages up to 115VAC/28VDC. The momentary action and sealed design guarantee smooth performance even in extreme temperatures ranging from -55°C to 85°C. With a durability rating of 25,000 cycles, the LP3A33B3222 is a reliable choice for industrial applications.
