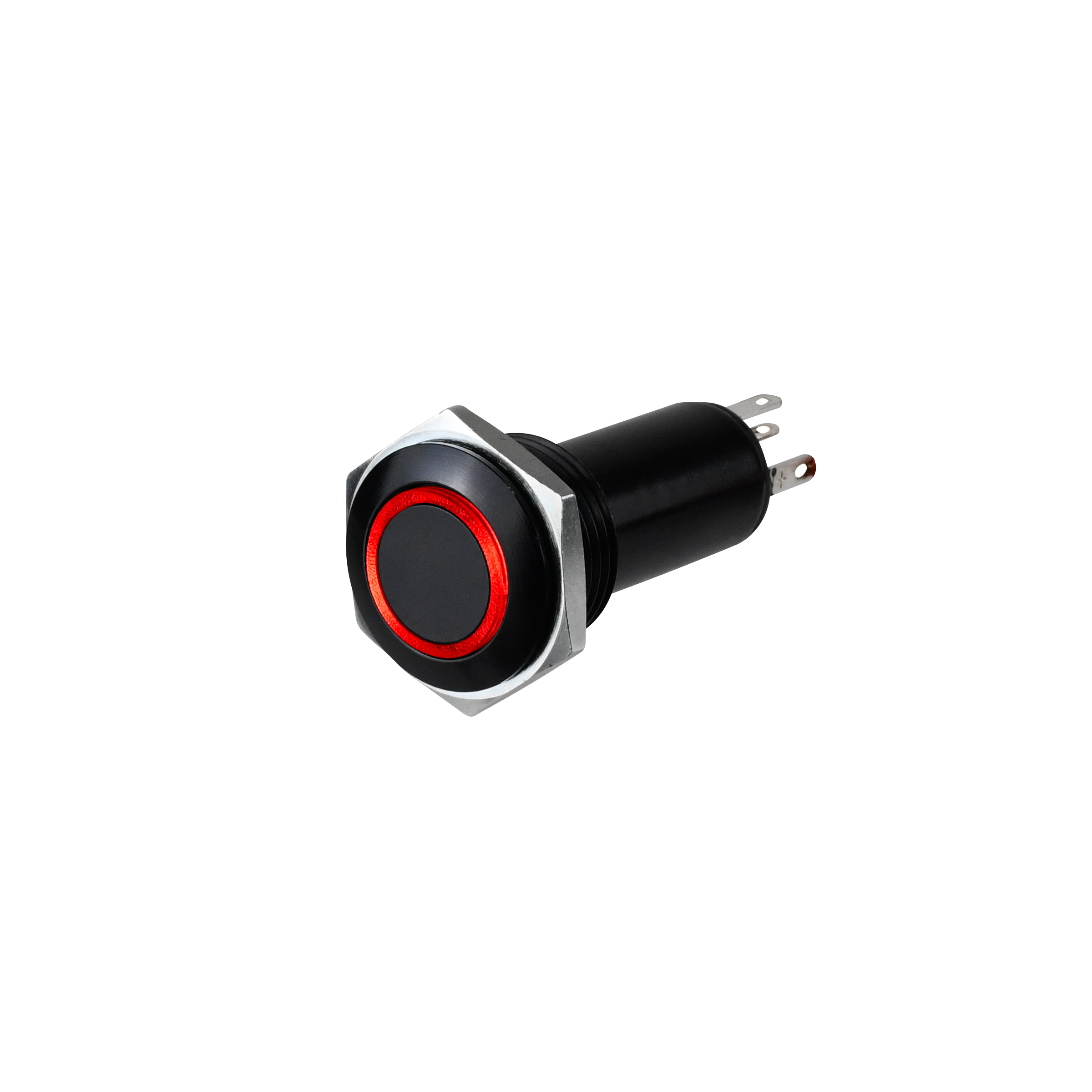

LP3-A53K3523

OTTLP3_A53K3523
Heilind Number:OTTLP3-A53K3523
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A53K3523
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A53K3523
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-A53K3523

Detailed Description

The LP3A53K3523 is a rugged and reliable pushbutton switch designed for demanding environments. With a durable aluminum housing and black cap, it offers both durability and a sleek appearance. Featuring a sealed design and an IP6K8S rating, it is resistant to water, dust, and vandalism, making it ideal for outdoor and industrial applications. The illuminated button, with a vibrant red light, provides clear visibility even in low-light conditions. With a momentary action and SPDT contact configuration, it offers precise control and versatility. Rated for 25,000 cycles of operation and capable of handling up to 5A of current, this switch is built to last. Whether used in automotive, aerospace, or industrial settings, the LP3A53K3523 is a dependable choice for any application that requires a high-performance pushbutton switch.
