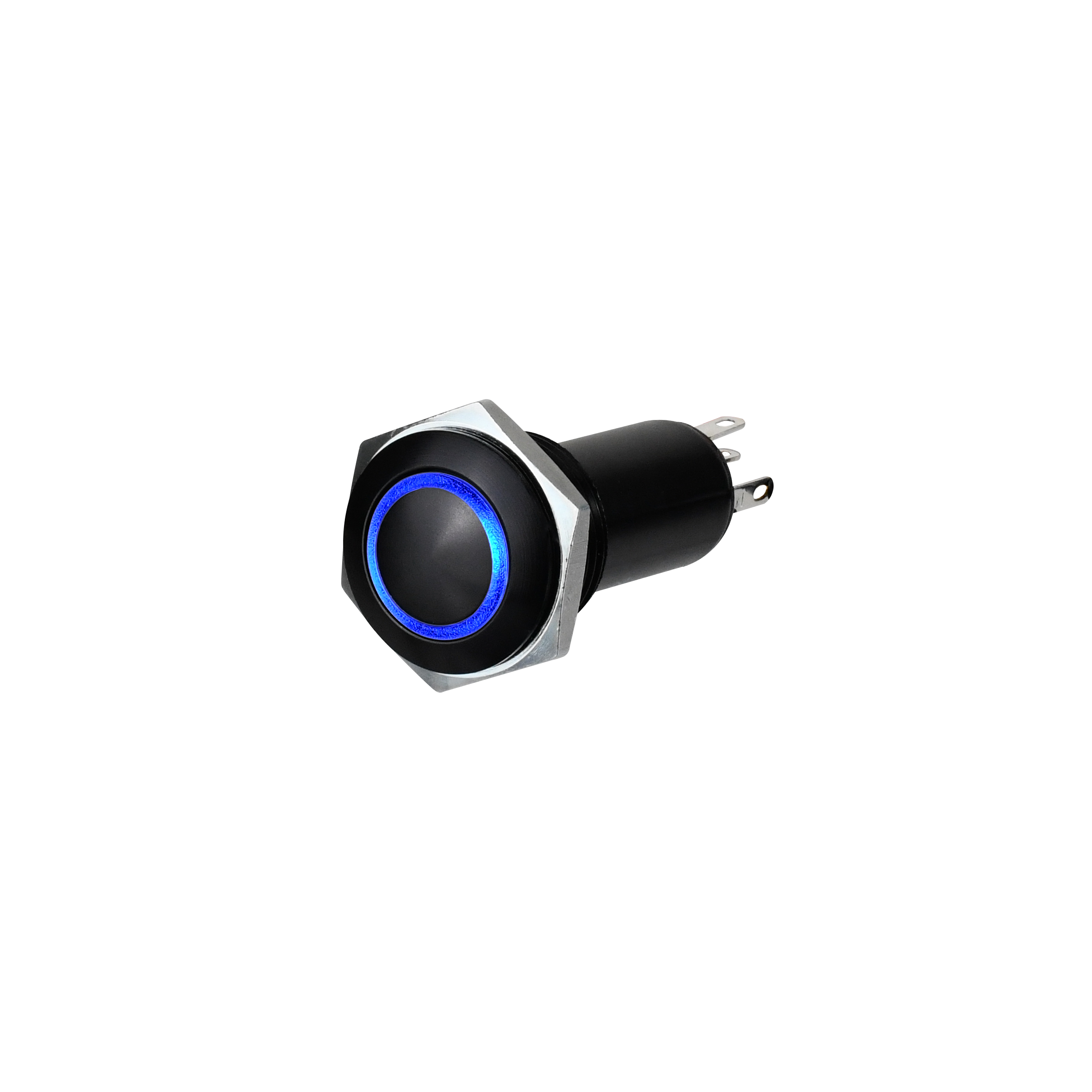

LP3-A53L3224

OTTLP3_A53L3224
Heilind Number:OTTLP3-A53L3224
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A53L3224
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A53L3224
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Curved)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.13 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP3-A53L3224

Detailed Description

Introducing the LP3A53L3224, a rugged and reliable pushbutton switch designed for demanding environments. With a durable aluminum housing and vandal-resistant construction, this switch is built to withstand the harshest conditions. The illuminated green button not only provides visual indication but also adds a touch of sophistication. Featuring a momentary action and sealed design, it ensures reliable performance in industrial settings. The SPDT contact configuration offers versatility, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of applications. Panel mount installation and solder termination simplify setup, and with a lifespan of 25,000 cycles, this switch is a long-lasting solution for your control needs. Trust in the LP3A53L3224 for dependable operation in any situation.
