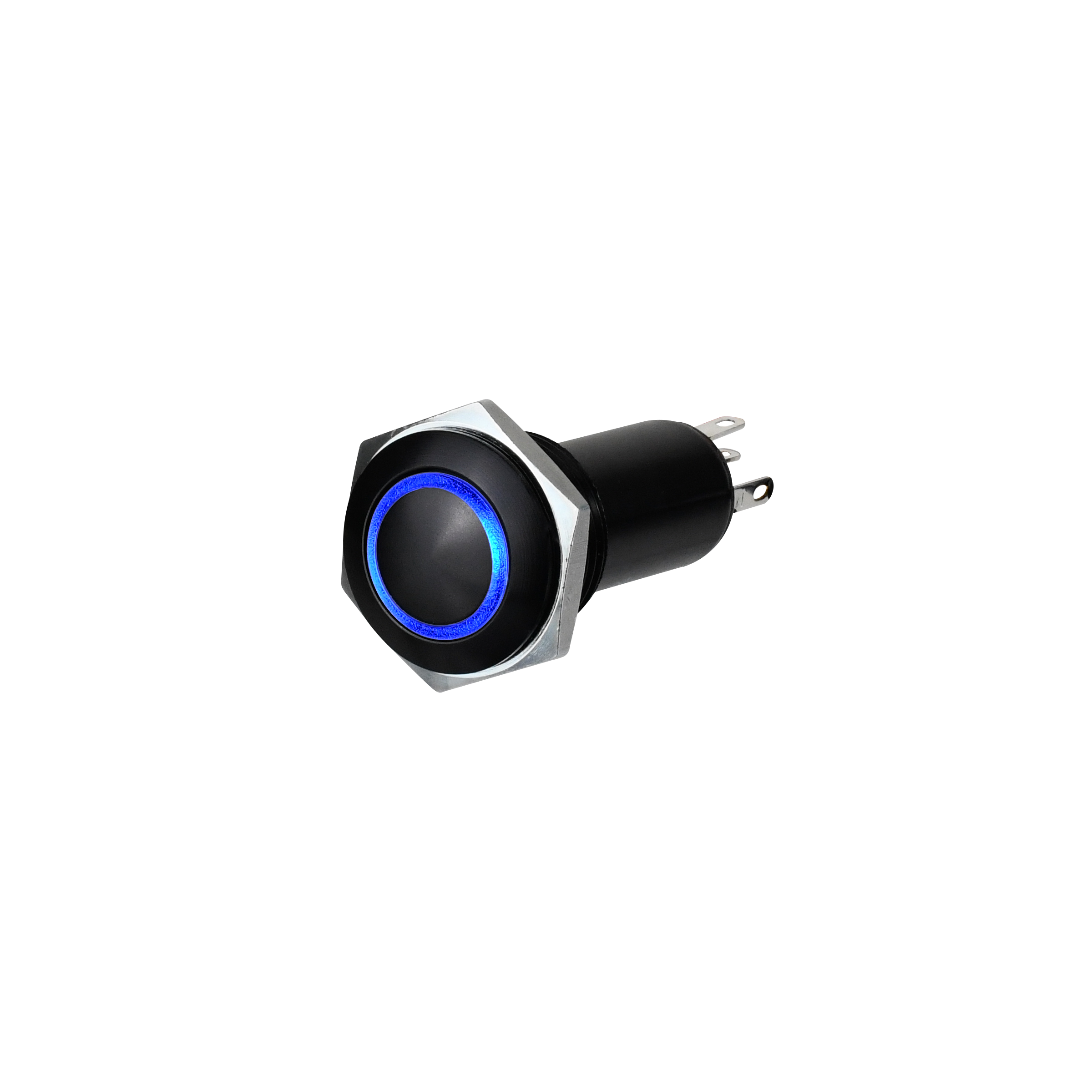

LP3-A53L3522

OTTLP3_A53L3522
Heilind Number:OTTLP3-A53L3522
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A53L3522
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A53L3522
Series:LP3
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (High Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A53L3522

Detailed Description

The LP3A53L3522 is a rugged and dependable pushbutton switch designed for demanding industrial applications. Featuring a high-profile curved button for easy actuation, this switch is housed in a durable aluminum case with a black finish. Its sealed construction and IP6K8S rating ensure reliable performance even in harsh environments. The green illuminated button provides clear visual feedback, with a 24V voltage rating for optimal brightness. With a momentary action and SPDT contact configuration, this switch offers versatile functionality. Ideal for panel mounting, it has a solder termination type and can handle a current rating of 5A. The LP3A53L3522 is tested for durability, with a rating of 25,000 cycles, and operates smoothly in temperatures ranging from -55°C to 85°C. Whether used in aerospace, transportation, or industrial machinery, this vandal-resistant switch is a trusted choice for critical control applications.
