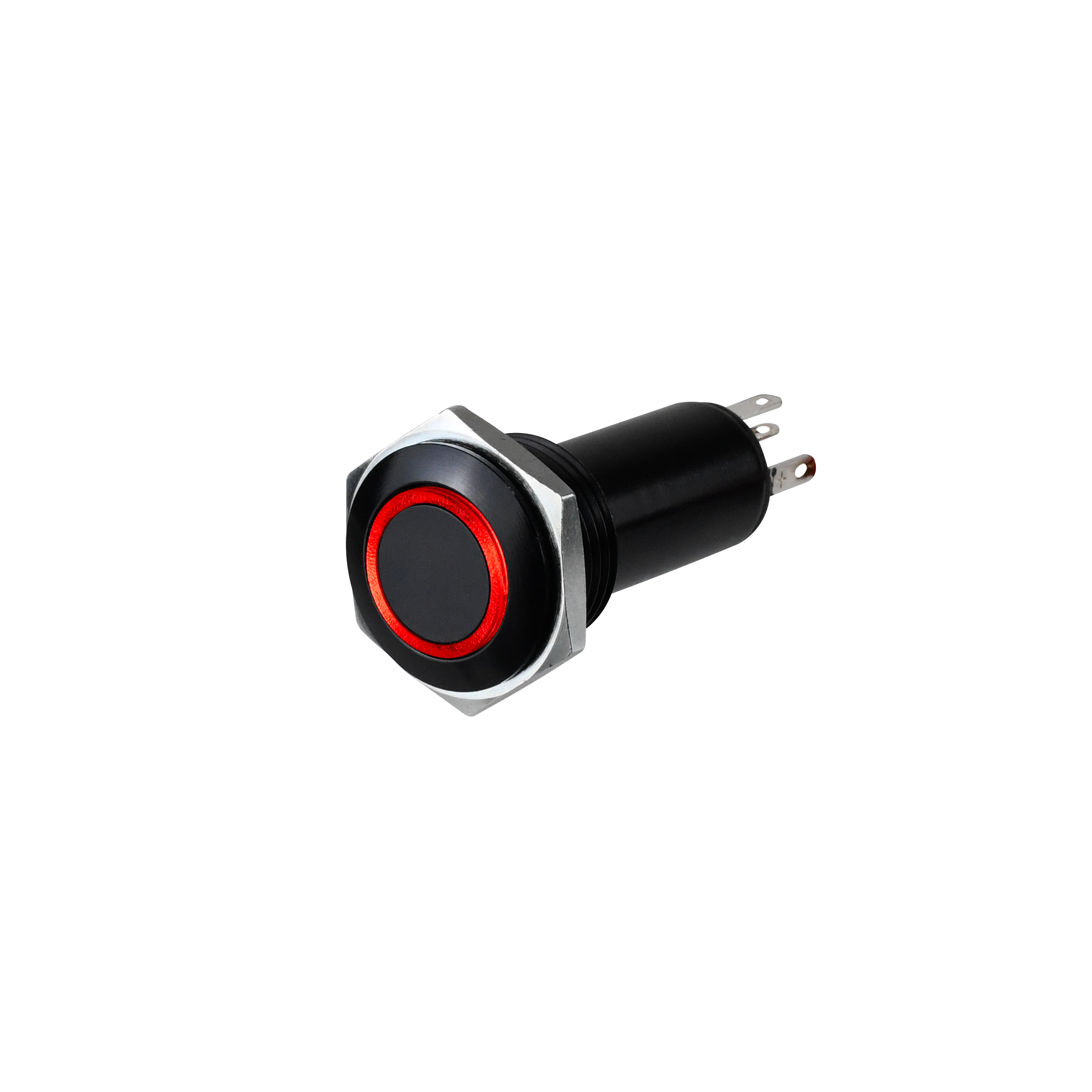

LP3-A53L3523

OTTLP3_A53L3523
Heilind Number:OTTLP3-A53L3523
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A53L3523
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A53L3523
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP3-A53L3523

Detailed Description

Introducing the LP3A53L3523, a rugged and reliable pushbutton switch designed for demanding environments. With a sleek black aluminum housing and a low profile flat button actuator, this switch offers both durability and style. The SPDT contact configuration ensures versatile functionality, while the sealed construction and IP6K8S rating make it resistant to water and dust. The green illuminated button provides visual feedback, with a 24V illumination voltage for efficient operation. Ideal for panel mounting, this switch is perfect for applications requiring a momentary action switch with a 5A current rating. From industrial machinery to outdoor equipment, the LP3A53L3523 is the perfect choice for high-performance switching.
