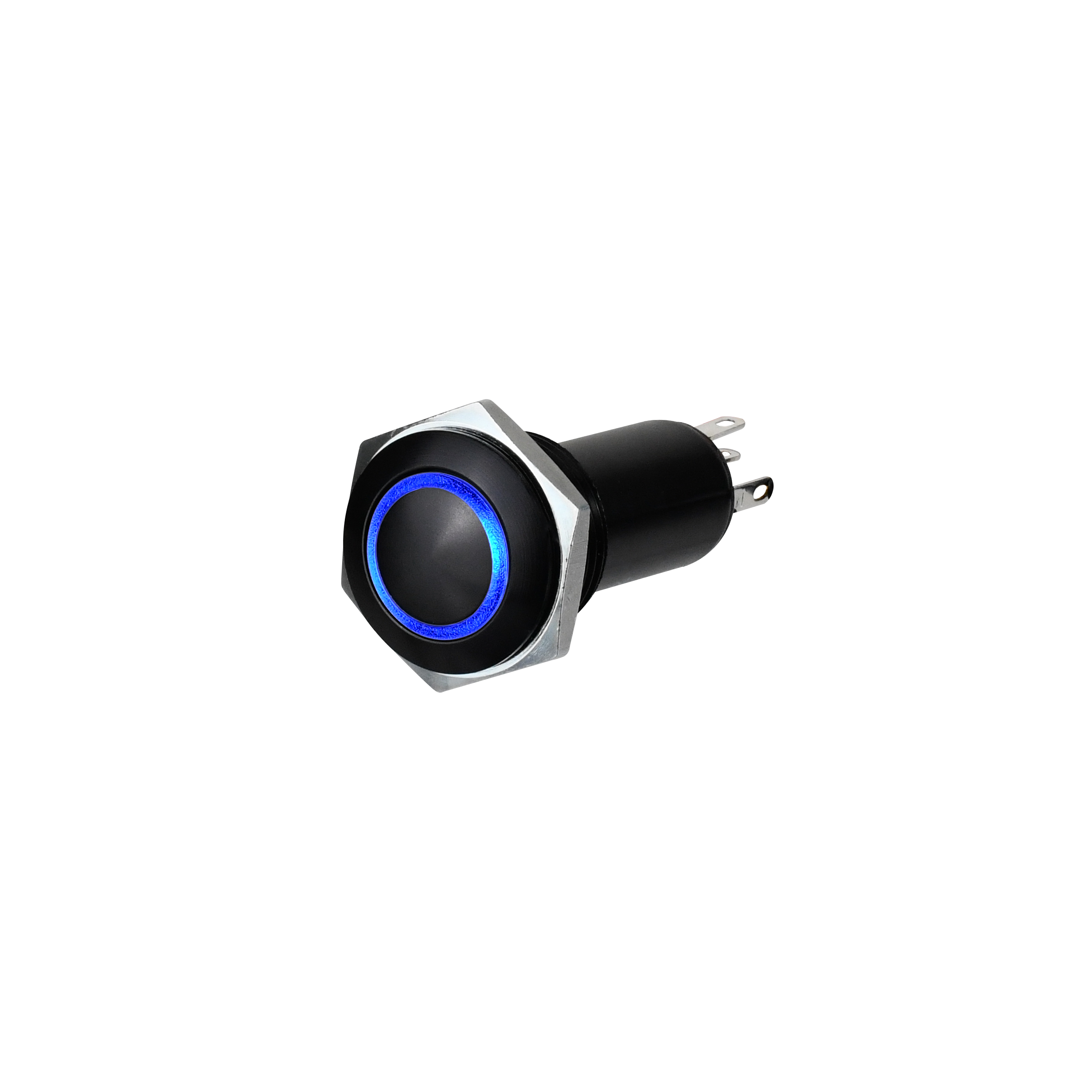

LP3-A53R3224

OTTLP3_A53R3224
Heilind Number:OTTLP3-A53R3224
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A53R3224
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A53R3224
Series:LP3
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Low Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.13 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:24 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A53R3224

Detailed Description

The LP3A53R3224 is a versatile and rugged pushbutton switch designed for demanding applications. With a durable aluminum housing and a vandal-resistant construction, this switch is built to withstand harsh environments. The black low-profile curved button with blue illumination not only offers a sleek look but also ensures easy visibility in low-light conditions. Featuring a sealed design and an IP6K8S rating, it provides reliable performance in wet and dusty settings. The momentary action and SPDT contact configuration offer flexibility in usage, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of electrical systems. Whether you're in aerospace, transportation, or industrial automation, the LP3A53R3224 is the perfect choice for durable and dependable switching solutions.
