LP3-A54N2213

Heilind Number:OTTLP3-A54N2213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A54N2213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

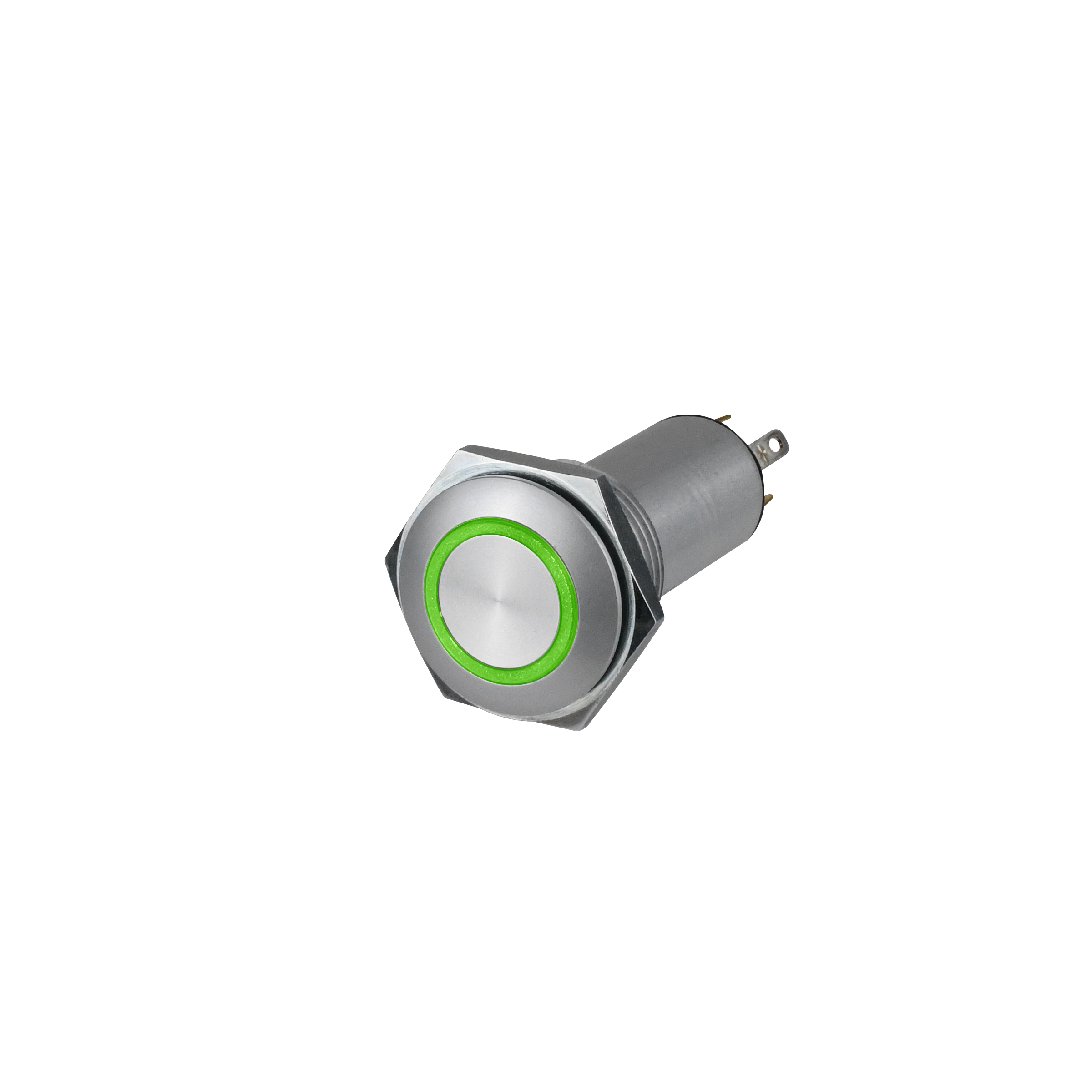

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A54N2213
Series:LP3
Cap Color:Silver
IP Rating:IP6K4S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Low Profile Flat)
Actuator Shape:Round
Current Rating:10 mA
Mounting Style:Panel Mount
Actuator Length:.1 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):250,000 Cycles
Voltage Rating (DC):5 VDC
Illumination Color:Blue
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-A54N2213

Detailed Description

Introducing the LP3A54N2213 Vandal Resistant Pushbutton Switch, a durable and reliable solution for your industrial control needs. This switch features a sleek silver housing with a low profile flat button actuator, making it perfect for panel mounting applications. With an IP6K4S rating, it is sealed against dust and water ingress, ensuring performance in harsh environments. The illuminated blue button provides clear indication of operation, while the momentary action design offers quick and responsive switching. Constructed with high-quality materials such as aluminum housing and brass contacts with gold plating, this switch is rated for 250,000 cycles of operation. With a low 10mA current rating and 5VDC voltage rating, it is suitable for a wide range of applications. Don't compromise on quality and reliability – choose the LP3A54N2213 for your next project.
