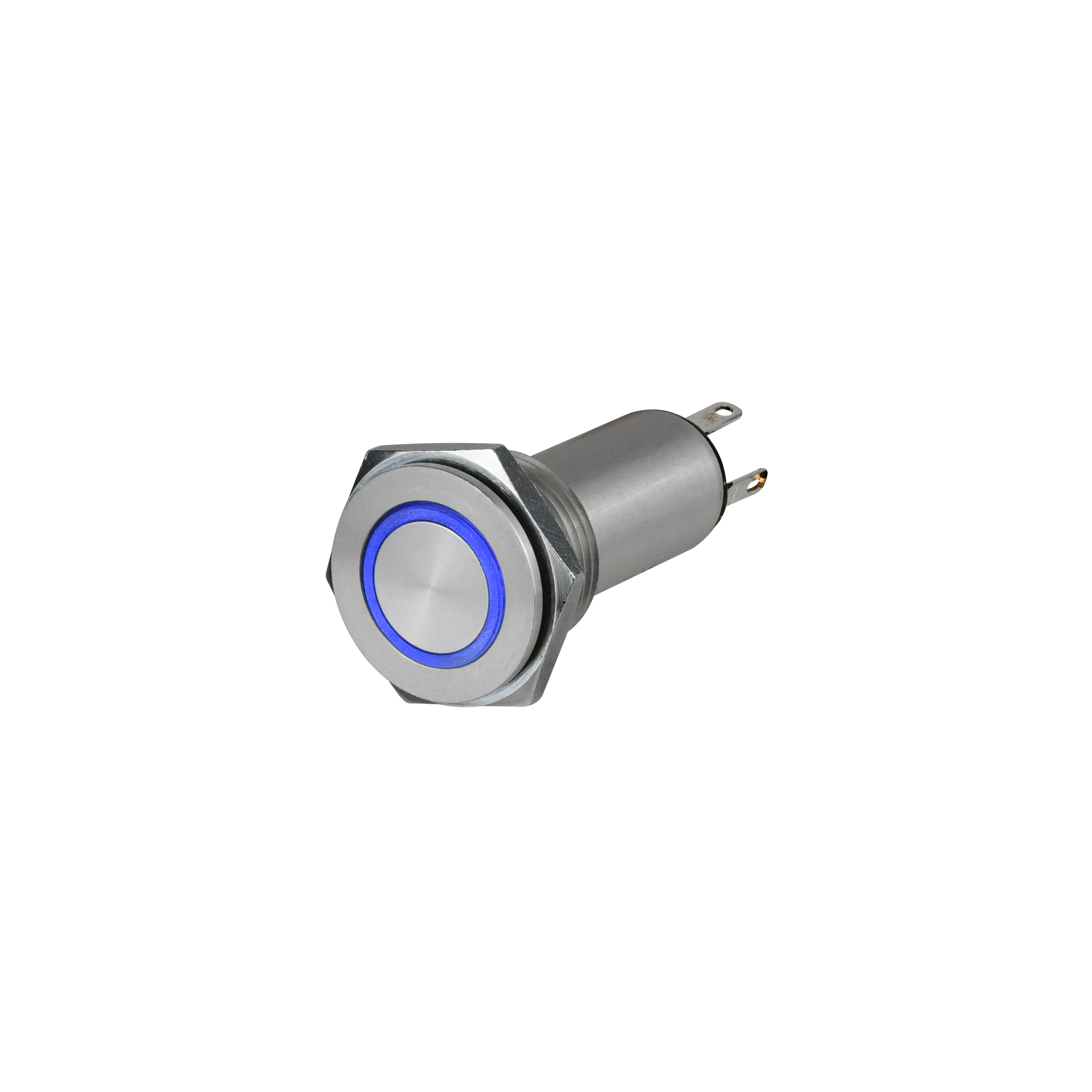

LP3-A71H3215

OTTLP3_A71H3215
Heilind Number:OTTLP3-A71H3215
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A71H3215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A71H3215
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3-A71H3215

Detailed Description

Introducing the LP3-A71H3215, a sleek and durable pushbutton switch designed for high reliability in demanding environments. With its silver aluminum housing and vandal-resistant construction, this switch is built to withstand tough conditions. The illuminated green button provides clear visibility, while the IP6K8S rating ensures protection against dust and water ingress. The momentary action, SPST-NO contact configuration, and 5A current rating make it suitable for a variety of applications. Whether it's panel-mounted in a control panel or used in outdoor equipment, this switch guarantees reliable performance. With a wide operating temperature range of -55°C to 85°C and a durability rating of 25,000 cycles, it's the perfect choice for industrial and commercial use. Upgrade your system with the LP3-A71H3215 and experience superior quality and performance.
