LP3-A71H3225

OTTLP3_A71H3225
Heilind Number:OTTLP3-A71H3225
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A71H3225
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

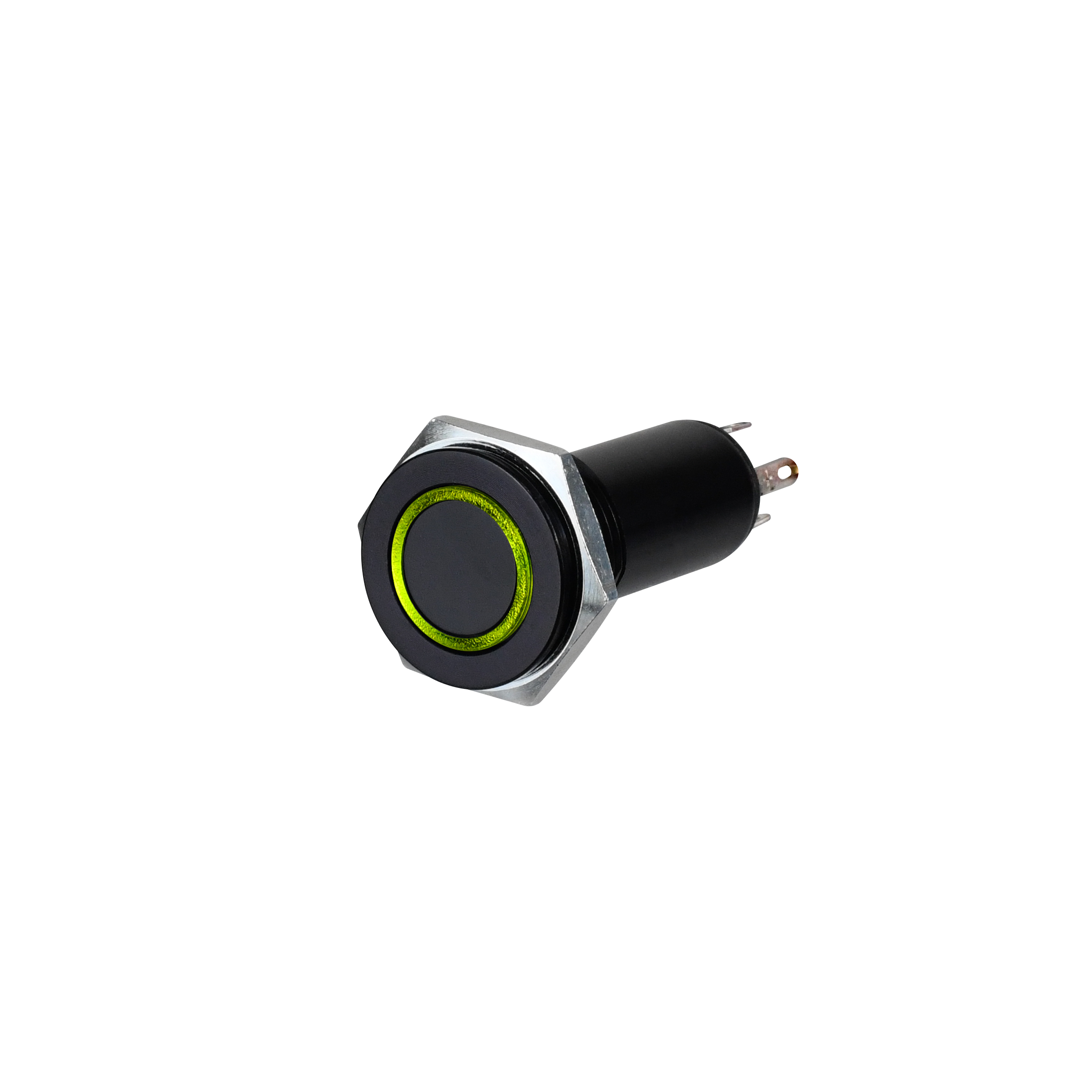

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A71H3225
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3-A71H3225

Detailed Description

Introducing the LP3A71H3225, a rugged and reliable pushbutton switch designed for demanding environments. With a durable aluminum housing and vandal-resistant construction, this switch is built to withstand harsh conditions. The black flush-profile actuator features a round shape and green illumination for easy visibility. Operating at 115VAC or 28VDC, with a current rating of 5A, it is suitable for a wide range of applications. The SPST-NO contact configuration ensures reliable performance, while the sealed design protects against dust and water ingress. Ideal for industrial and outdoor use, this momentary action switch offers a lifespan of 25,000 cycles and operates smoothly in temperatures ranging from -55°C to 85°C. Trust the LP3A71H3225 for durable, high-performance switching in any setting.
