LP3-A71L3221

Heilind Number:OTTLP3-A71L3221
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A71L3221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

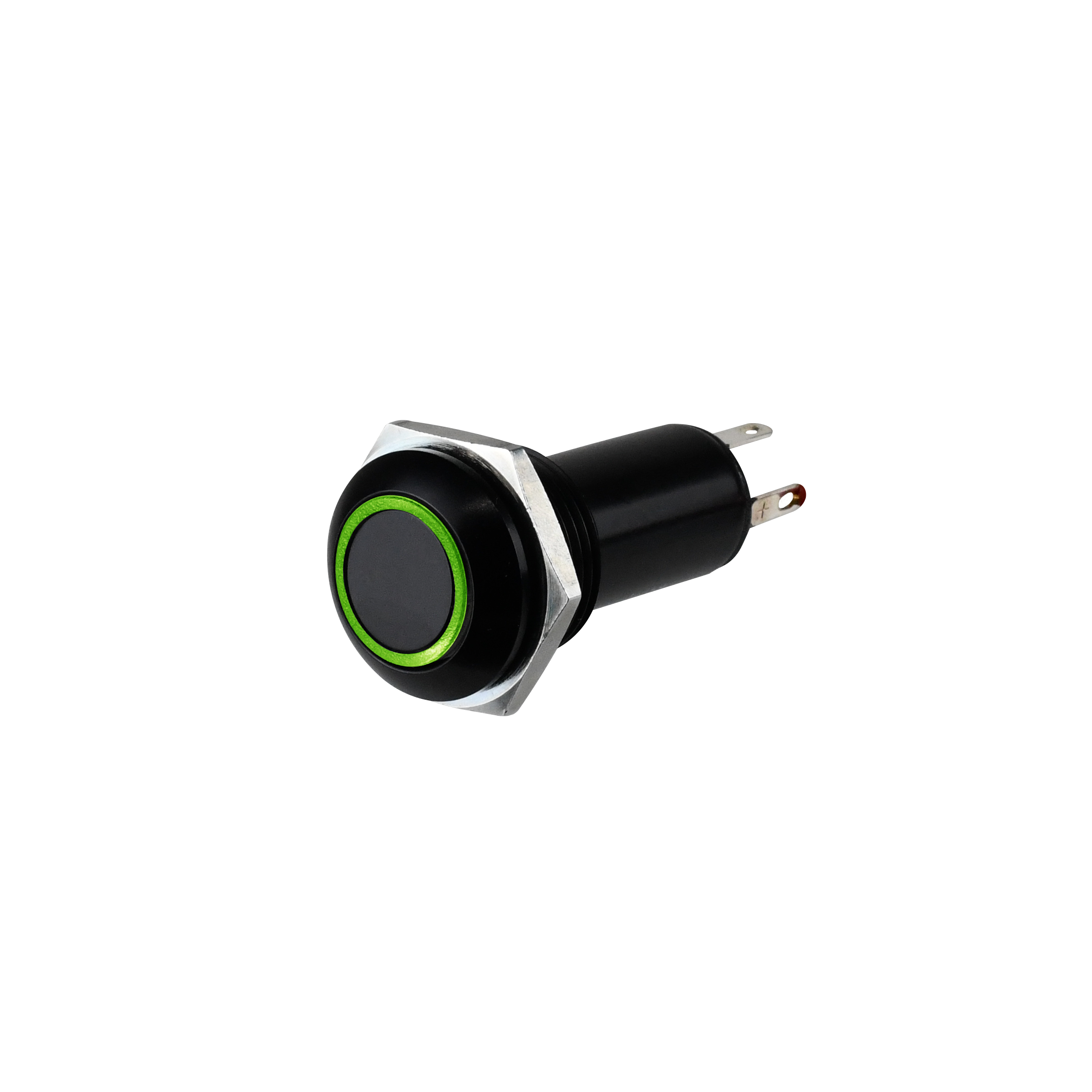

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A71L3221
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP3-A71L3221

Detailed Description

Introducing the LP3A71L3221 Vandal Resistant Pushbutton Switch, a rugged and reliable solution for your industrial control needs. This high-profile flat button switch features a durable aluminum housing and a sealed design, making it ideal for harsh environments. With an IP6K8S rating, it offers excellent protection against dust and water ingress. The illuminated green LED provides clear visual feedback, while the momentary action ensures precise control. Rated for 5A at 115VAC and 28VDC, this switch is suitable for a wide range of applications. With a lifespan of 25,000 cycles and a wide operating temperature range from -55°C to 85°C, you can count on the LP3A71L3221 for dependable performance in any situation. Upgrade your control panel with this high-quality pushbutton switch today.
