LP3-A71Q3214

OTTLP3_A71Q3214
Heilind Number:OTTLP3-A71Q3214
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A71Q3214
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

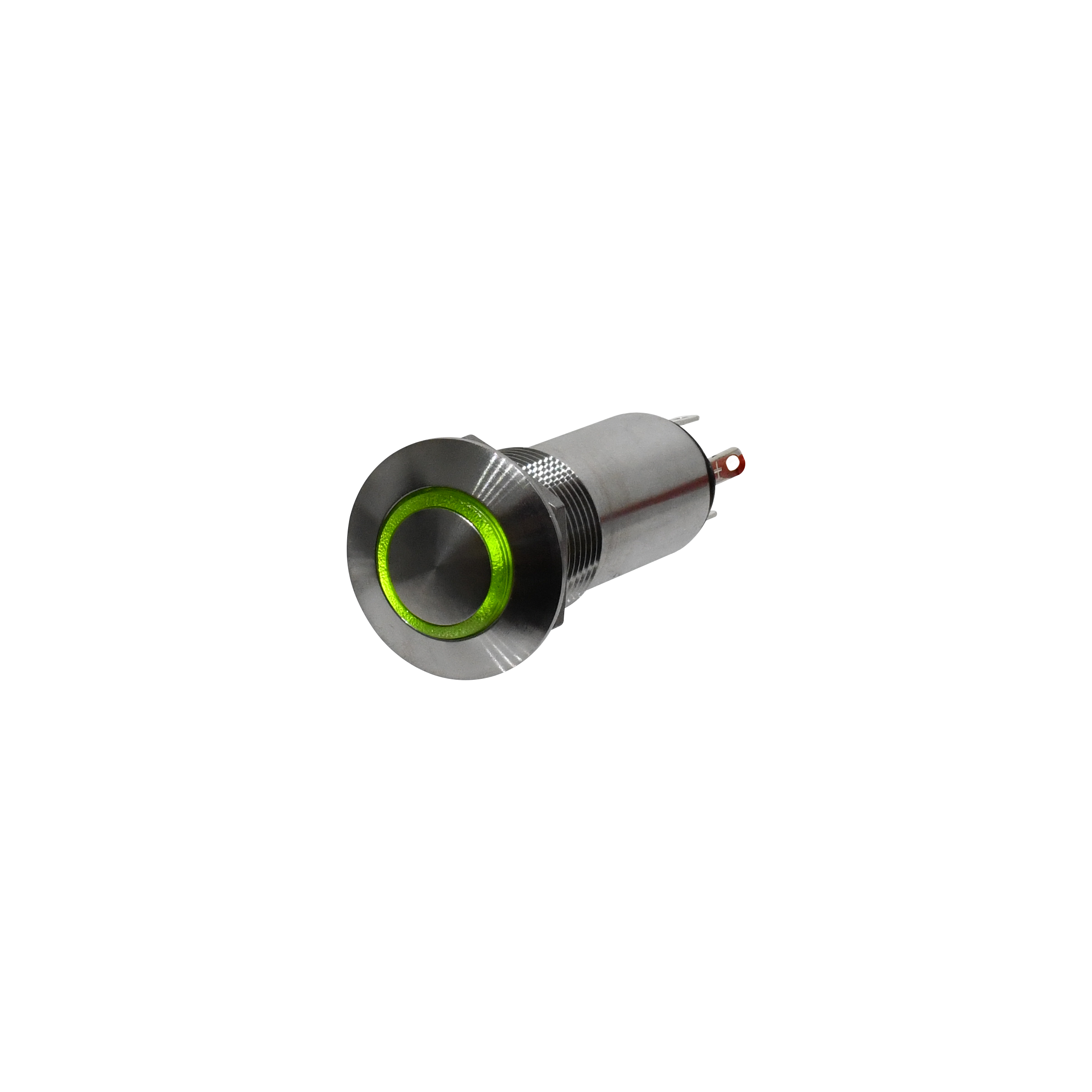

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A71Q3214
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP3-A71Q3214

Detailed Description

The LP3 series Push Button Switch, SKU LP3-A71Q3214, is a high-performance solution for demanding environments. Featuring a durable aluminum construction with a sleek silver finish, this vandal-resistant switch is designed for long-lasting use. Its IP6K8S rating ensures protection against dust and water ingress, making it suitable for outdoor and industrial applications. The illuminated button, with a striking blue light, provides clear visibility in low-light conditions. The momentary action switch has a contact configuration of SPST-NO, with a current rating of 5 A. Panel mount installation and solder termination make it easy to integrate into your system. With a wide operating temperature range of -55°C to 85°C, this switch is reliable in extreme conditions. Trust the LP3A71Q3214 for dependable performance in critical operations.
