LP3-A71R3222

OTTLP3_A71R3222
Heilind Number:OTTLP3-A71R3222
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A71R3222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

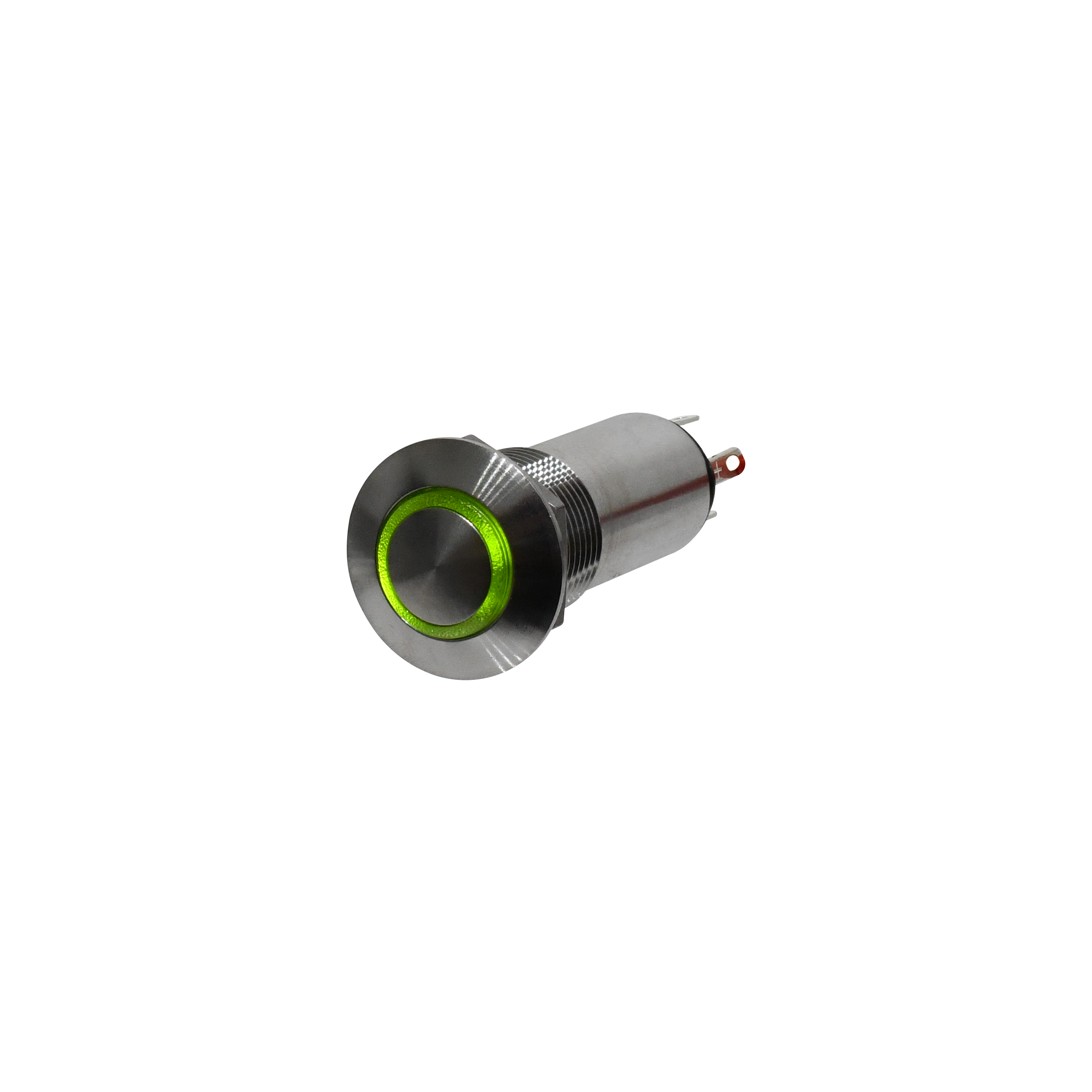

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A71R3222
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Curved)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.22 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:24 V
SKU:OTTLP3-A71R3222

Detailed Description

Introducing the LP3A71R3222, a high-performance pushbutton switch designed for durability and reliability in demanding environments. With its vandal-resistant aluminum housing and sealed construction, this switch is built to withstand harsh conditions. The illuminated button features a high-profile curved actuator for easy operation, with a blue LED indicator for clear visibility. Rated for 5A at 115VAC and 28VDC, it offers robust performance in both AC and DC applications. The SPST-NO contact configuration ensures reliable switching, while the momentary action design provides quick response. Ideal for panel mounting, this switch is perfect for use in industrial machinery, transportation, and outdoor equipment. Trust the LP3A71R3222 for dependable operation in any setting.
