LP3-A71U3225

Heilind Number:OTTLP3-A71U3225
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A71U3225
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

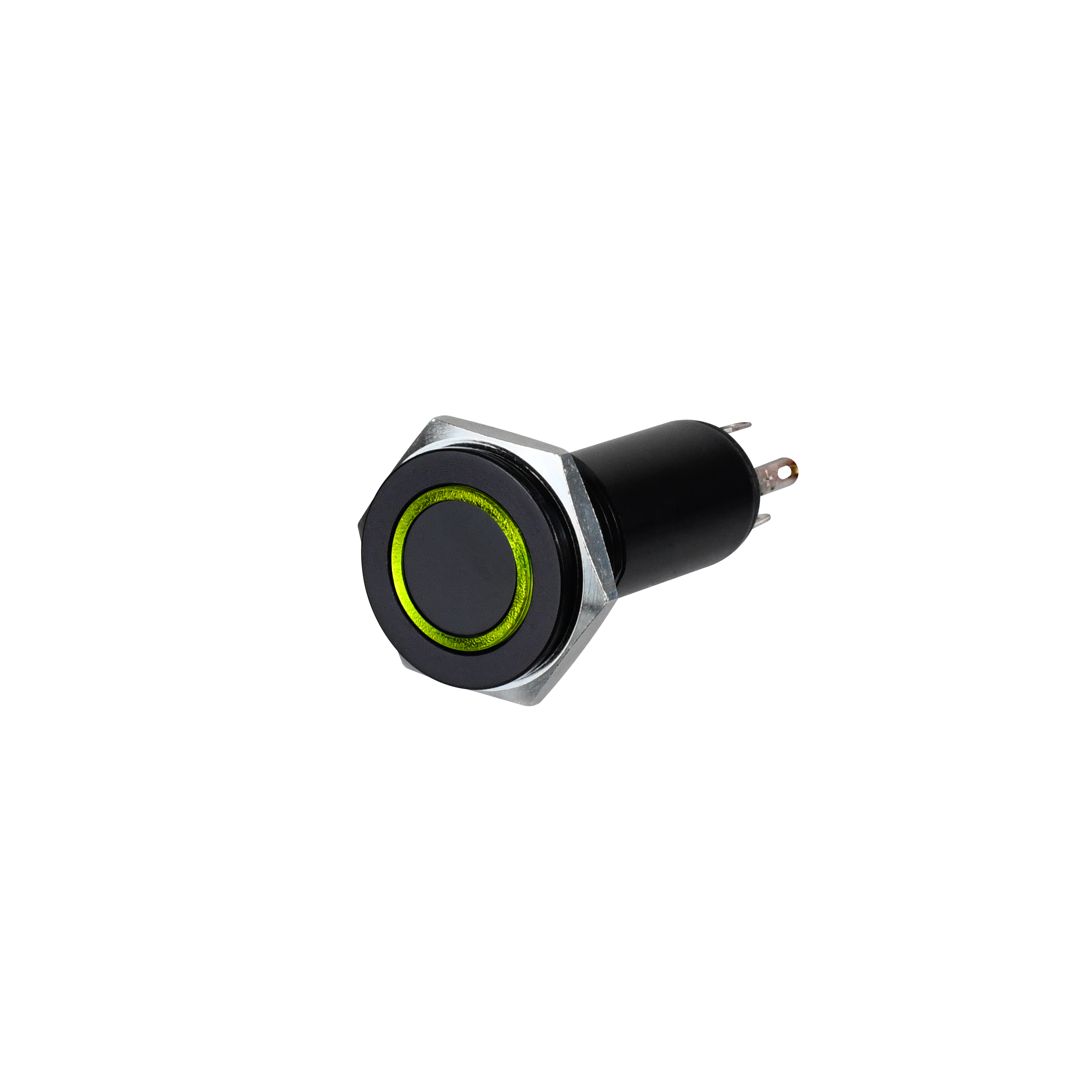

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A71U3225
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Profile Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP3-A71U3225

Detailed Description

Introducing the LP3 Series Vandal Resistant Pushbutton Switch, the ultimate solution for demanding environments. With a sleek black aluminum case and flush profile flat button, this switch offers both durability and style. Featuring a deep green illuminated actuator, this switch is not only visually striking but also functional in low-light conditions. Its sealed construction and IP6K8S rating make it suitable for a wide range of applications, ensuring reliable performance even in harsh settings. The momentary action, SPST-NO contact configuration, and 5A current rating make it ideal for various control and power circuits. With a wide operating temperature range of -55°C to 85°C, this switch is built to withstand extreme conditions. Trust in the LP3 Series for high-quality, long-lasting performance.
