LP3-A73H3213

OTTLP3_A73H3213
Heilind Number:OTTLP3-A73H3213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-A73H3213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

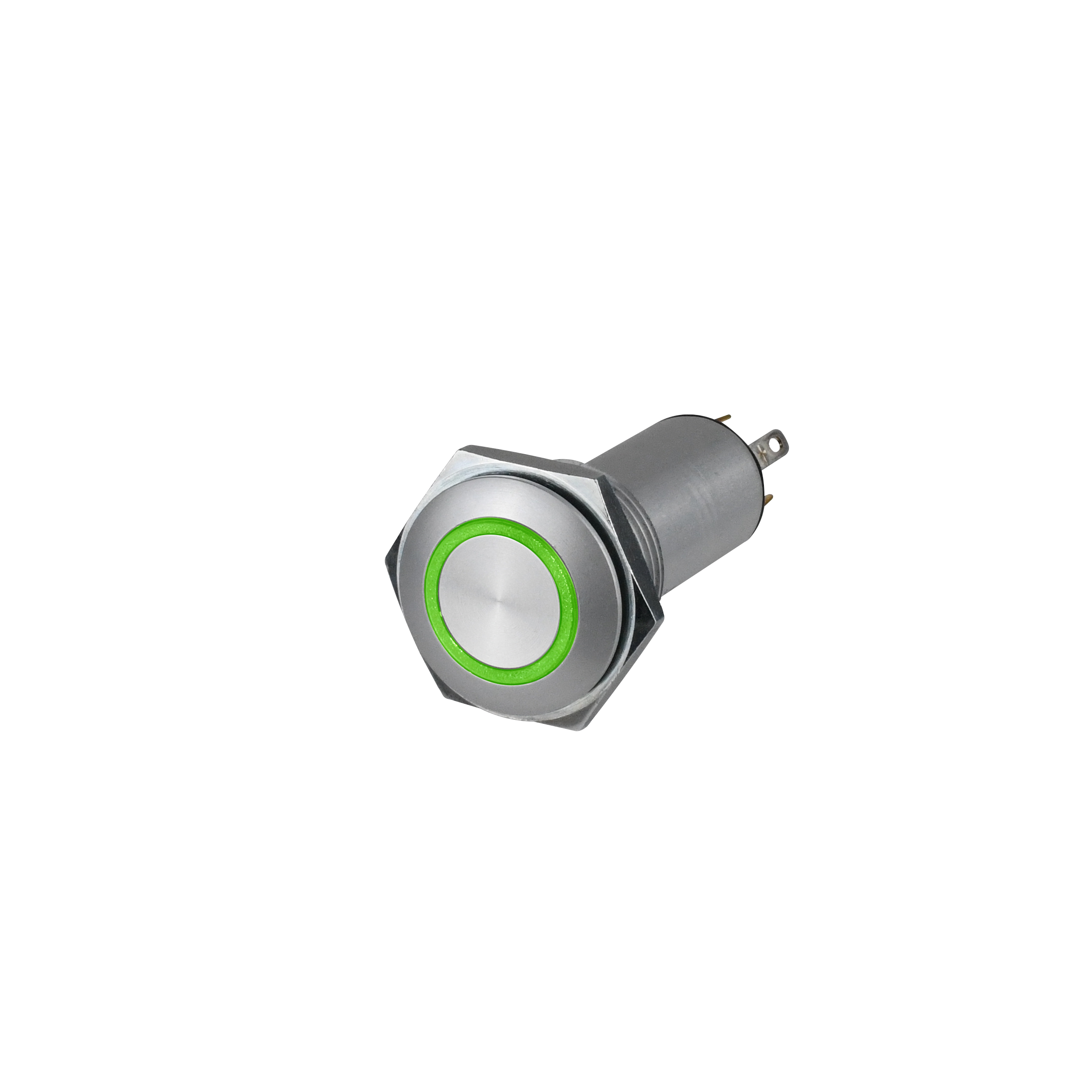

Vandal Resistant, Sealed, Illuminated, Momentary Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-A73H3213
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3-A73H3213

Detailed Description

The LP3A73H3213 is a high-performance pushbutton switch designed for durability and reliability in demanding environments. Featuring a sleek silver aluminum housing with a low profile flat button actuator, this switch is both visually appealing and functional. Its sealed construction and IP6K8S rating make it resistant to water and dust, while the vandal-resistant design ensures long-lasting performance. The illuminated green button provides clear indication of operation, with a 12V illumination voltage. With a current rating of 5A and an SPDT contact configuration, this switch is suitable for a wide range of applications. Operating temperature range from -55°C to 85°C, along with a 25,000 cycle durability rating, guarantee its performance in harsh conditions. Ideal for panel mounting, the LP3A73H3213 offers reliable and efficient control in industrial and commercial settings.
