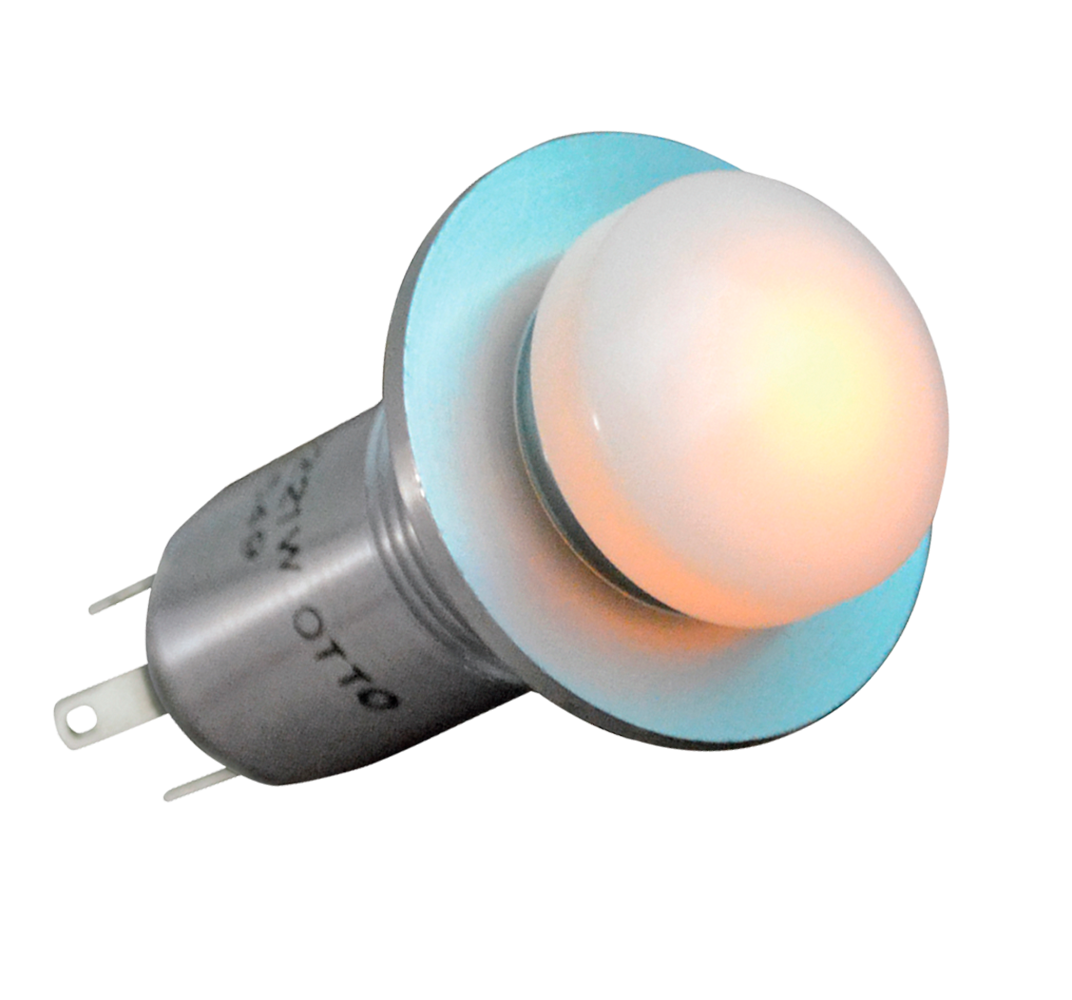

LP3-E1K352R

OTTLP3_E1K352R
Heilind Number:OTTLP3-E1K352R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E1K352R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E1K352R
Series:LP3
Cap Color:Red - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Exposed Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.44 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-E1K352R

Detailed Description

The LP3 Series Pushbutton Switch in Red with a Translucent Cap offers reliable momentary action control with its Off-(On) switch function. Featuring a durable construction with an aluminum housing and thermoplastic actuator, this sealed switch is designed for longevity in demanding environments, boasting a durability rating of 25,000 cycles. With an IP6K8S rating, it ensures protection against dust and water ingress. The illuminated red button, powered by 24V, provides visual feedback, ideal for low-light conditions. Rated for 5A at 115VAC and 28VDC, it guarantees efficient operation. Suitable for panel mounting, it has a contact configuration of SPST-NO and quick connect termination. Operating temperatures ranging from -55°C to 85°C make it versatile for various applications. Perfect for industrial and commercial use, this high-quality pushbutton switch meets the highest standards for performance and durability.
