LP3-E1M222A

OTTLP3_E1M222A
Heilind Number:OTTLP3-E1M222A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E1M222A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

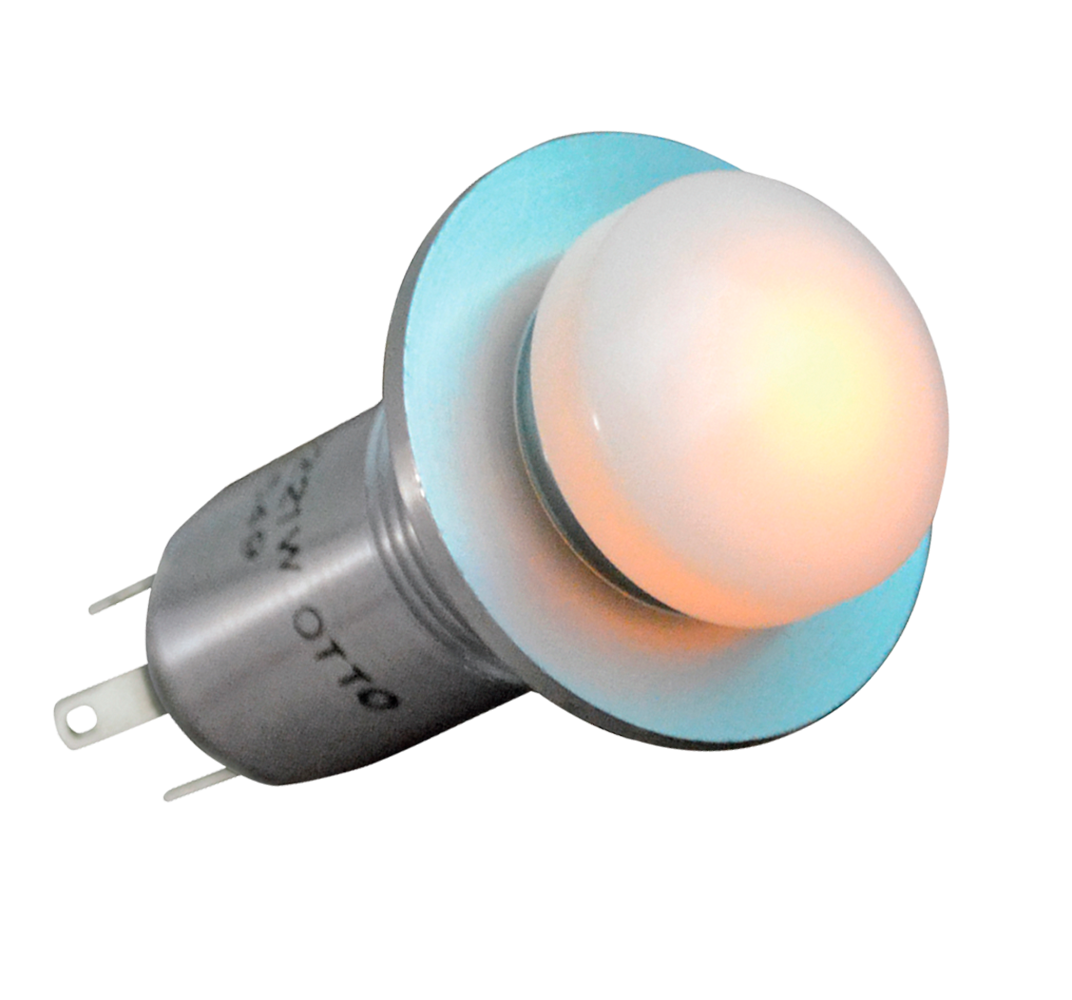

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E1M222A
Series:LP3
Cap Color:Amber - Translucent
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Exposed Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.44 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-E1M222A

Detailed Description

The LP3 series push button switch, SKU LP3-E1M222A, offers reliable momentary action control with a sleek design. Featuring a durable aluminum housing and a thermoplastic actuator, this switch is built to withstand tough environments while providing a comfortable user experience. Its IP6K4S sealing ensures protection against dust and water ingress, making it ideal for outdoor or industrial applications. The illuminated amber button, with a voltage rating of 24V, adds visual feedback in low-light conditions. With a contact configuration of SPST-NO and a current rating of 5A, this switch guarantees efficient operation. Perfect for panel mounting, it has a high durability rating of 25,000 cycles and can handle temperatures ranging from -55°C to 85°C. Trust in the LP3E1M222A for dependable performance in your control systems.
