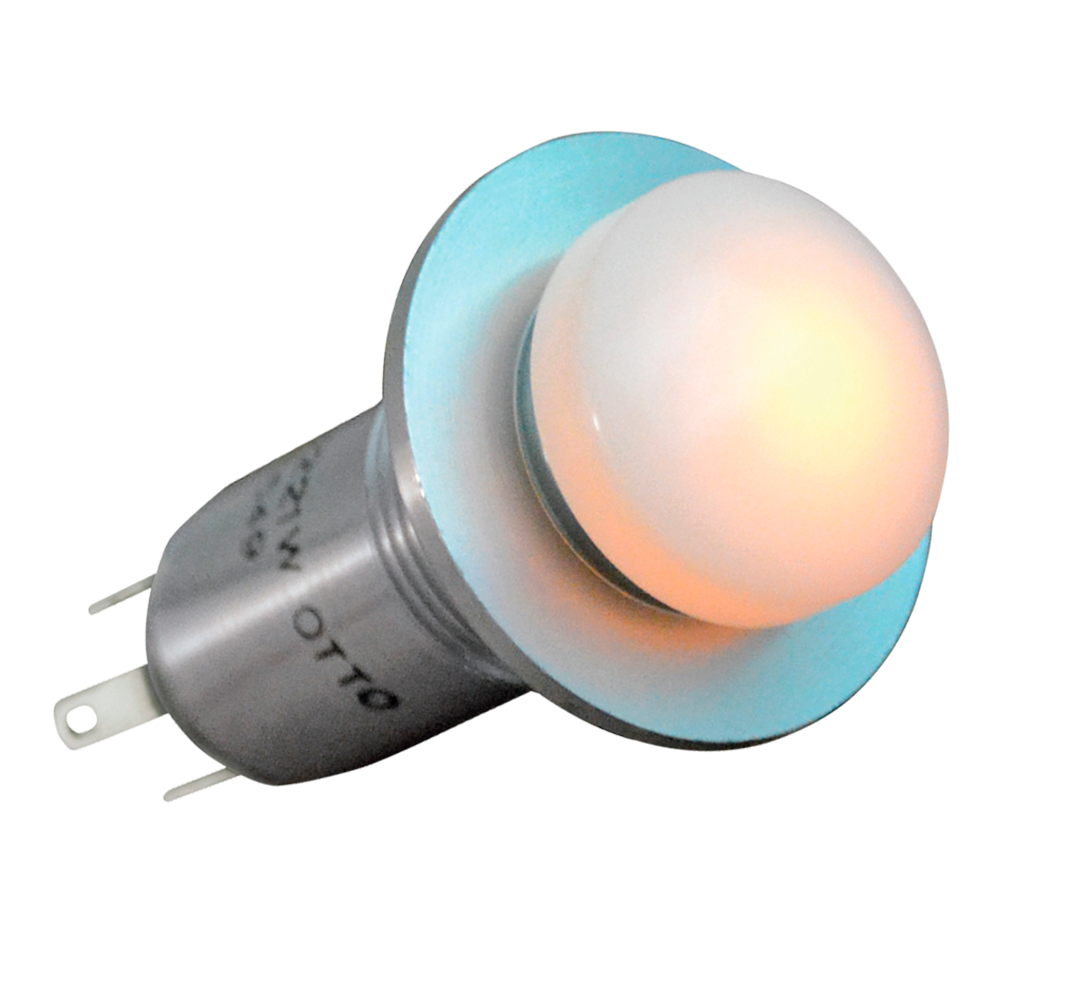

LP3-E3A352R

OTTLP3_E3A352R
Heilind Number:OTTLP3-E3A352R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E3A352R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E3A352R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.44 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3-E3A352R

Detailed Description

The LP3 series pushbutton switch, SKU LP3-E3A352R, is a high-performance component designed for reliable operation in demanding environments. Featuring a durable aluminum housing and a sealed thermoplastic actuator, this switch is IP6K8S rated, ensuring protection against dust and water ingress. The illuminated red button with exposed dome actuator offers enhanced visibility, even in low-light conditions. With a current rating of 5A and a contact configuration of SPDT, it provides versatile functionality. The switch's momentary action and panel-mount design make it ideal for various applications. With a wide operating temperature range of -55°C to 85°C and a durability rating of 25,000 cycles, it guarantees long-lasting performance. Whether in industrial machinery or automotive systems, the LP3E3A352R switch delivers reliable control with precision.
