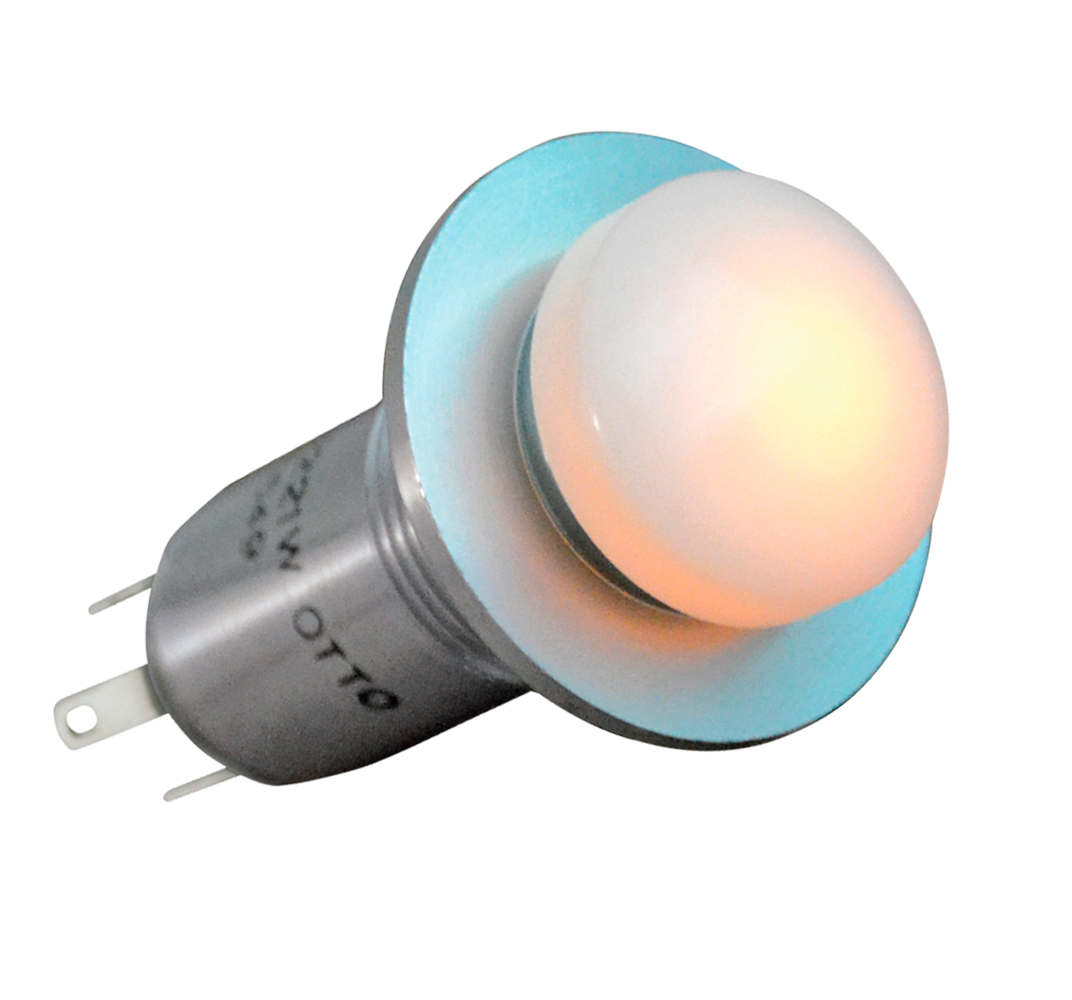

LP3-E3E352W

OTTLP3_E3E352W
Heilind Number:OTTLP3-E3E352W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E3E352W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E3E352W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.44 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:6 V
SKU:OTTLP3-E3E352W

Detailed Description

Introducing the LP3 Series Illuminated Sealed Momentary Action Pushbutton Switch, featuring a sleek design with a White Translucent cap and Black case. Engineered for durability with a rating of 25,000 cycles, this switch guarantees long-lasting performance. The Button (Exposed Dome) actuator, crafted from Thermoplastic, offers a comfortable press. Boasting an IP6K8S rating, it is dust-tight and water-resistant, suitable for various environments. With a contact configuration of SPDT and a current rating of 5A, it ensures reliable electrical connections. The switch operates at voltages up to 115VAC and 28VDC, with green illumination at 6V. Ideal for panel mounting, it is perfect for applications requiring a high-quality sealed pushbutton switch.
