LP3-E3G352R

OTTLP3_E3G352R
Heilind Number:OTTLP3-E3G352R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E3G352R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

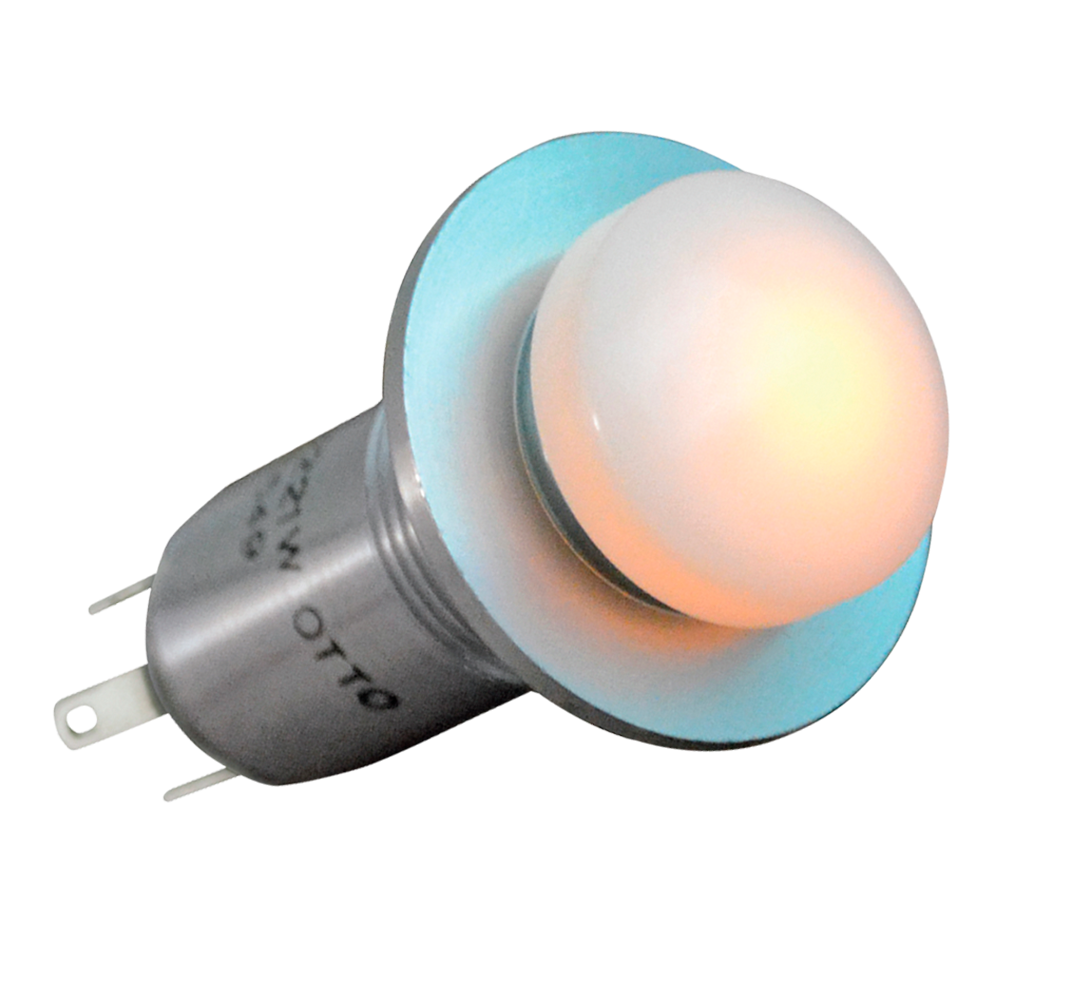

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E3G352R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.44 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP3-E3G352R

Detailed Description

Introducing the LP3E3G352R, a rugged and reliable illuminated pushbutton switch designed for demanding environments. With its red translucent cap and durable aluminum housing, this switch is not only visually striking but also built to last. Featuring a sealed construction and an IP6K8S rating, it offers protection against dust, water, and even high-pressure washdowns. The momentary action button, with its exposed dome actuator, provides a responsive and tactile feel. Ideal for panel mounting, it has a current rating of 5A and operates at both 115VAC and 28VDC. The SPDT contact configuration ensures versatile functionality, while the silver-plated brass contacts guarantee long-lasting performance. Whether used in industrial machinery, automotive applications, or aerospace systems, the LP3E3G352R is the perfect choice for reliable and illuminated switching.
