LP3-E3K352R

OTTLP3_E3K352R
Heilind Number:OTTLP3-E3K352R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E3K352R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

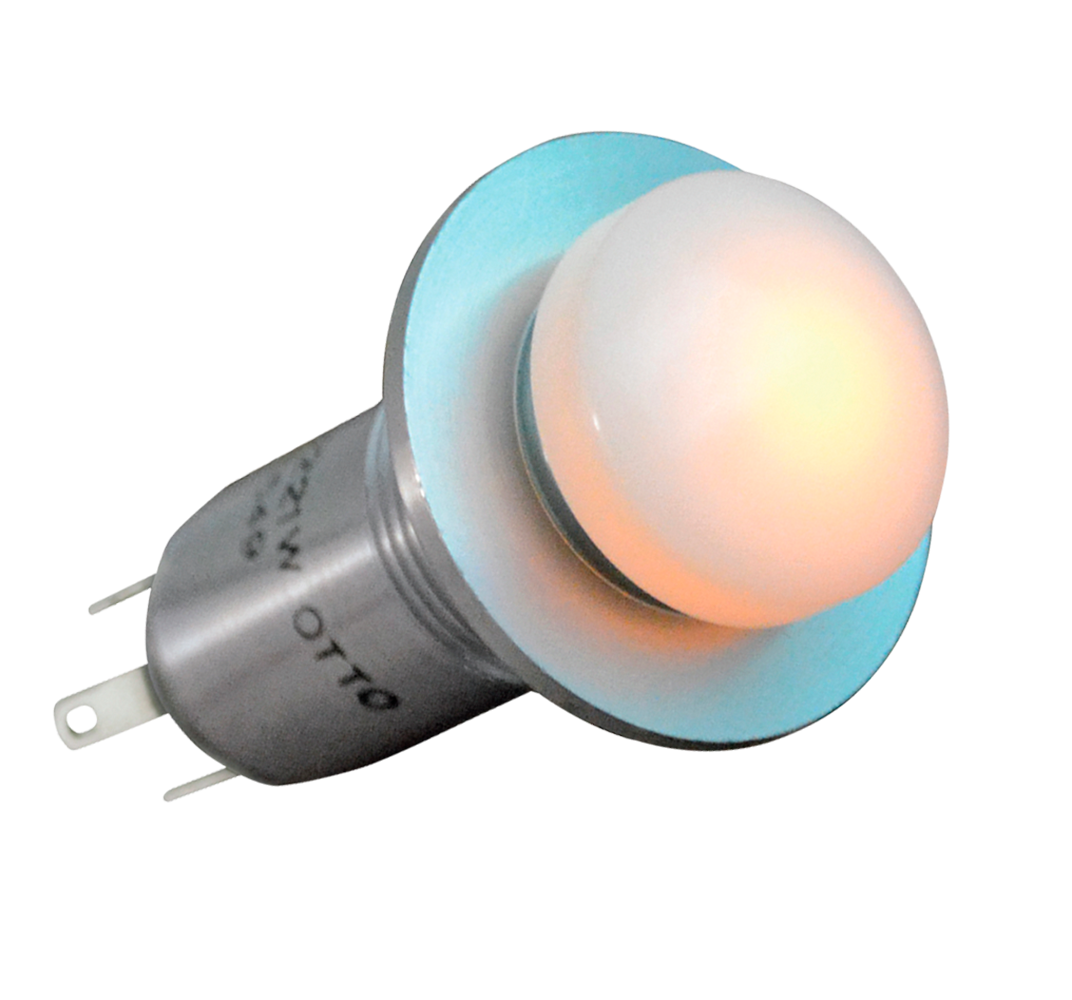

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E3K352R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.44 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-E3K352R

Detailed Description

The LP3 Series Pushbutton Switch in Red Translucent with an IP6K8S rating is a durable and reliable choice for panel mounting applications. Featuring an illuminated button with a round exposed dome actuator, this switch offers easy visibility and operation. With a current rating of 5A and contact plating in silver, it ensures efficient conductivity. The sealed design and thermoplastic actuator material make it suitable for various environments. Operating at 115VAC or 28VDC, and with a contact configuration of SPDT, it provides versatility in use. Whether in industrial or commercial settings, this switch guarantees performance in temperatures ranging from -55°C to 85°C, making it a dependable component. With a durability rating of 25,000 cycles, it offers long-lasting functionality. Upgrade your control systems with the LP3E3K352R, the ultimate solution for momentary action switches.
