LP3-E4F122W-R3

OTTLP3_E4F122W_R3
Heilind Number:OTTLP3-E4F122W-R3
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E4F122W-R3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

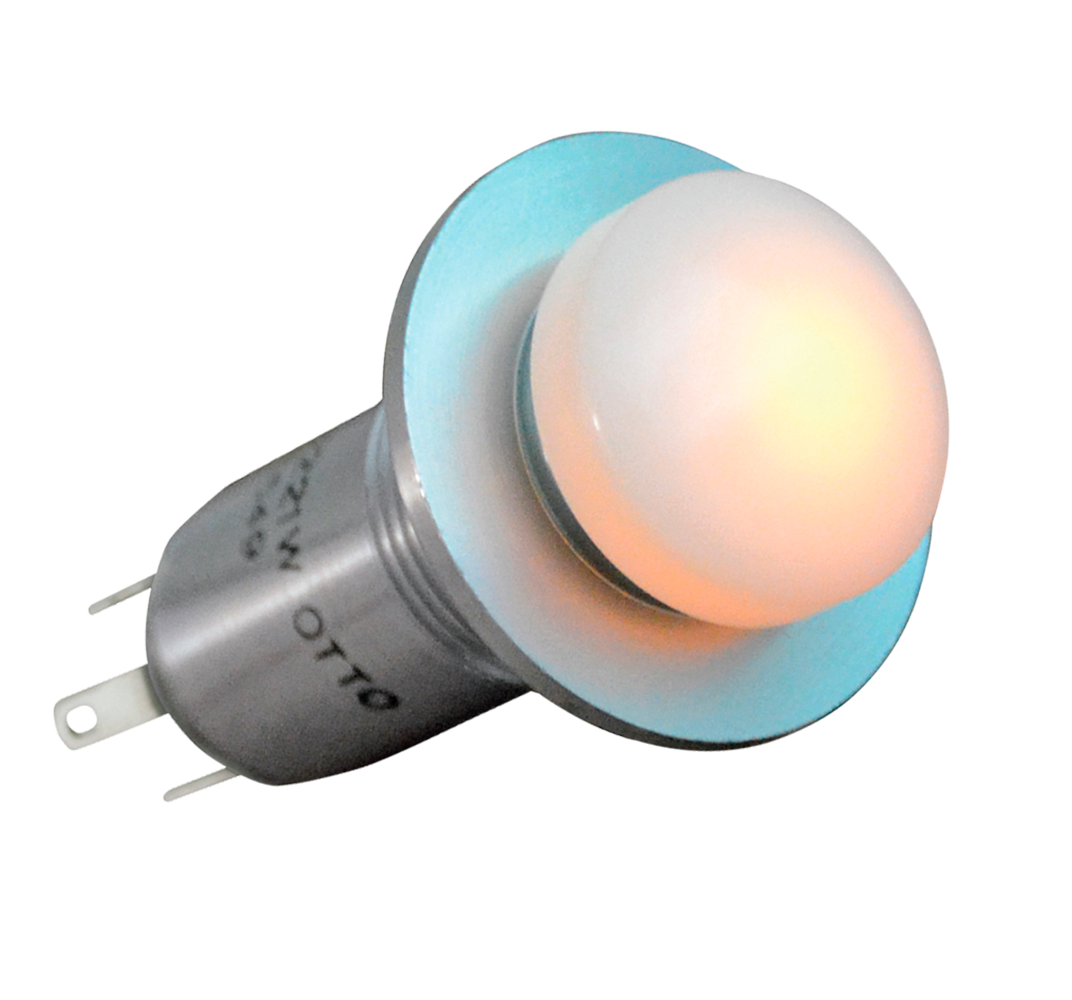

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E4F122W-R3
Series:LP3
Cap Color:White - Translucent
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Exposed Dome)
Actuator Shape:Round
Current Rating:10 - 100 mA
Mounting Style:Panel Mount
Actuator Length:.44 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):250,000 Cycles
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Amber
Illumination Voltage:6 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-E4F122W-R3

Detailed Description

The LP3 Series Illuminated Sealed Momentary Action Pushbutton Switch ( LP3-E4F122W-R3) is a high-quality component designed for reliable performance in various applications. Featuring a durable aluminum housing with a black case and a translucent white cap, this switch offers both functionality and style. The illuminated button with amber color and 6V voltage adds visual appeal while indicating its operation. With a quick connect termination and panel mounting style, installation is convenient. The SPST-NO contact configuration with brass contact material and gold plating ensures efficient conductivity. Operating between -55°C to 85°C and rated for 250,000 cycles, it guarantees long-term use even in demanding environments. Suitable for voltage ratings of 3-28VDC and current ratings of 10-100mA, this switch is ideal for a wide range of electronic devices. Upgrade your control panel or device with this reliable and visually striking pushbutton switch from the LP3 series.
