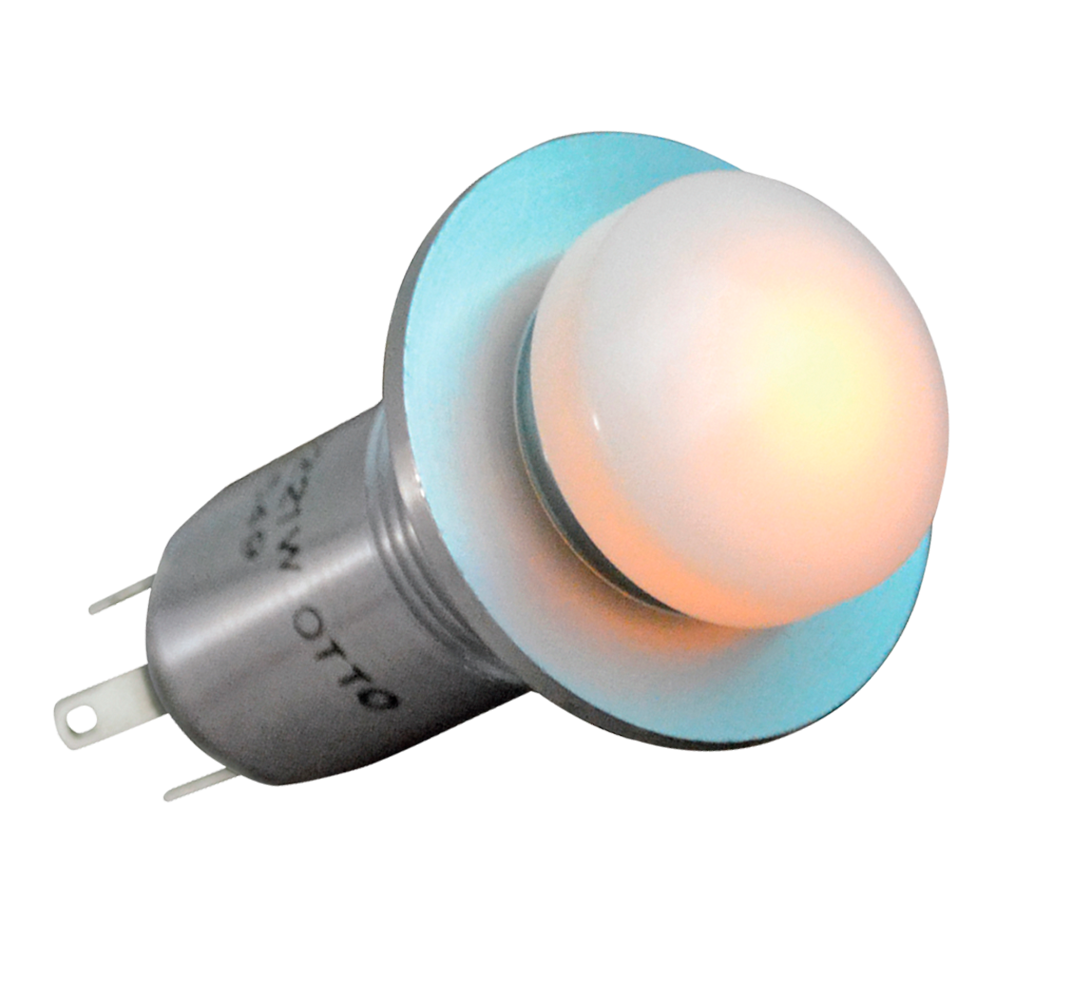

LP3-E6B322W

OTTLP3_E6B322W
Heilind Number:OTTLP3-E6B322W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E6B322W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E6B322W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.44 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):250,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP3-E6B322W

Detailed Description

The LP3 Series Pushbutton Switch, SKU LP3-E6B322W, is a versatile and reliable choice for various applications. Featuring a durable aluminum housing with a sleek black finish, this switch is not only aesthetically pleasing but also built to last. The white translucent button, illuminated with a vibrant green light, adds a modern touch while ensuring visibility in any environment. With an IP6K8S rating, it is sealed against dust and water ingress, making it suitable for use in rugged conditions. The momentary action, SPDT contact configuration, and gold-plated brass contacts guarantee precise and low-resistance operation. With a wide voltage range of 3-28VDC and a current rating of 10-100mA, this switch is compatible with a variety of systems. Whether for industrial machinery, automotive panels, or consumer electronics, the LP3E6B322W is the perfect solution for your pushbutton switch needs.
