LP3-E6G322R

OTTLP3_E6G322R
Heilind Number:OTTLP3-E6G322R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E6G322R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

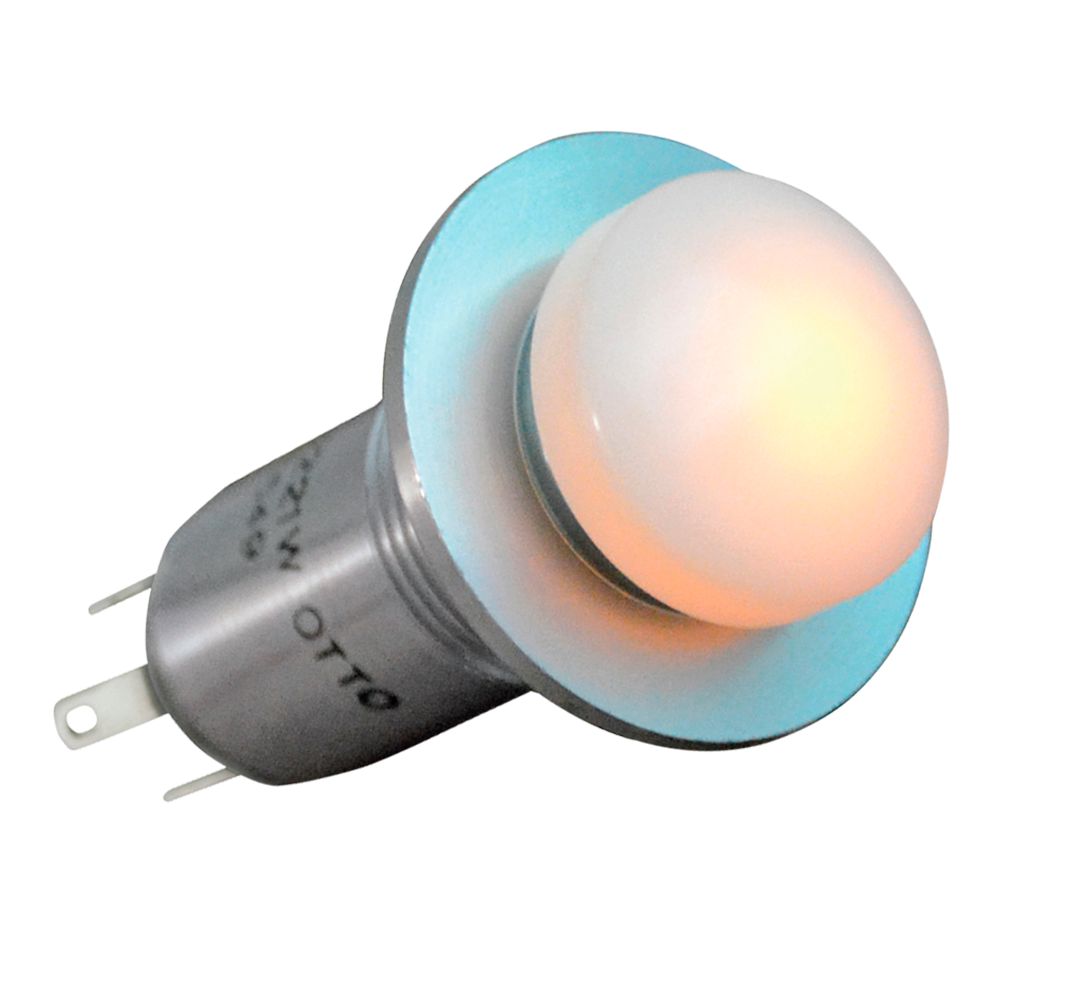

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E6G322R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.44 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):250,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP3-E6G322R

Detailed Description

The LP3 series pushbutton switch, SKU LP3-E6G322R, is a high-performance component perfect for demanding applications. Featuring a red translucent cap, this illuminated switch offers a clear indication of its status. With an IP6K8S rating, it ensures reliable operation even in harsh environments. The button, made of durable thermoplastic, provides a comfortable actuation experience. Its gold-plated brass contacts guarantee excellent conductivity, while the SPDT configuration allows for versatile functionality. Designed for panel mount installation with quick connect termination, it is easy to integrate into your system. With a voltage rating of 3-28VDC and a current rating of 10-100mA, this switch is suitable for a wide range of power requirements. Whether in industrial machinery or consumer electronics, its sealed construction and 250,000 cycle durability make it a dependable choice. The LP3E6G322R switch is the epitome of quality and performance in the pushbutton switch category.
