LP3-E6N322W

OTTLP3_E6N322W
Heilind Number:OTTLP3-E6N322W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E6N322W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

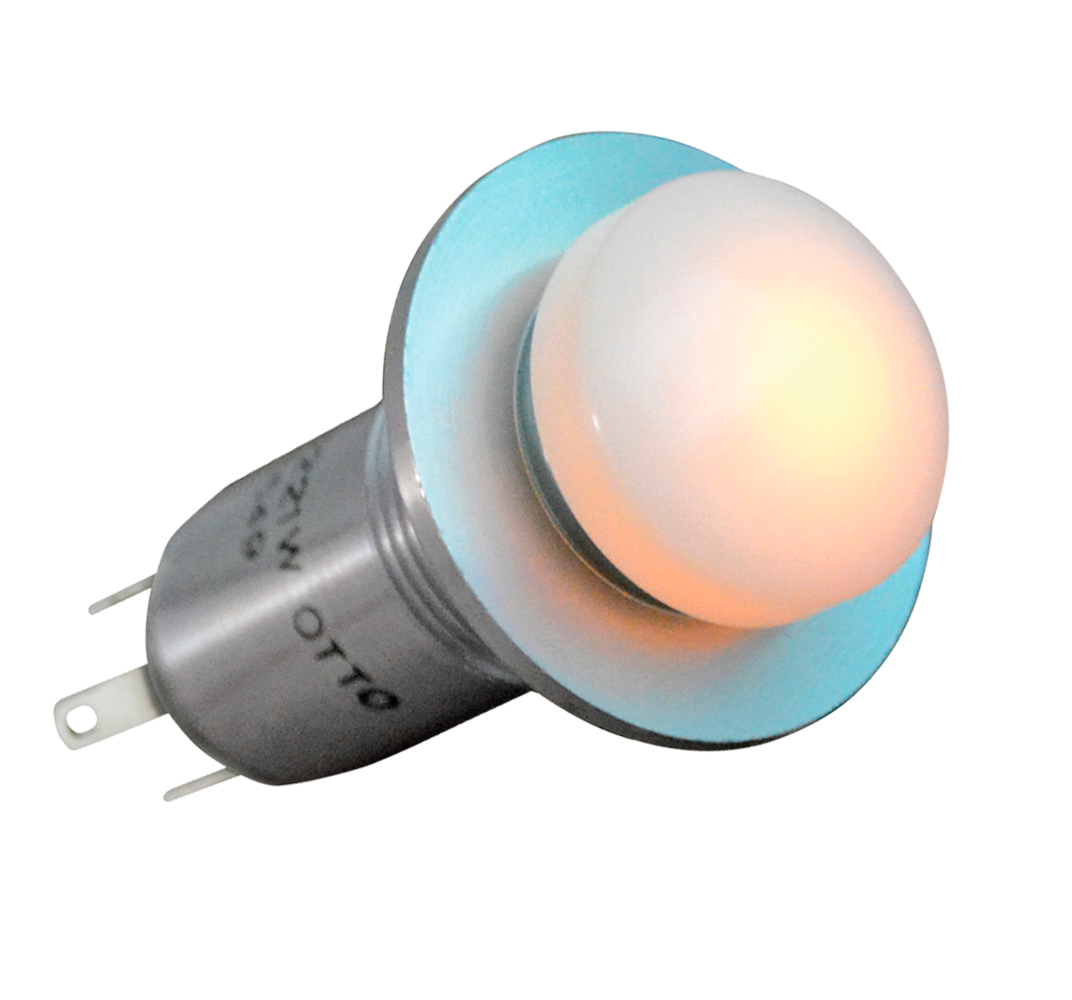

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E6N322W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.44 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):250,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP3-E6N322W

Detailed Description

The LP3 series pushbutton switch, SKU LP3-E6N322W, offers reliable and illuminated functionality for various applications. Featuring a durable construction with an aluminum housing and thermoplastic actuator, this switch is designed for longevity, with a durability rating of 250,000 cycles. The button's exposed dome actuator, in a round shape, provides a tactile and responsive interface. With a white-translucent cap and blue illumination color, it offers visual feedback. The switch is sealed and IP6K8S rated, ensuring protection against environmental factors. It operates on a current rating of 10-100 mA and a voltage rating of 3-28 VDC, making it suitable for different power requirements. The momentary action, SPDT contact configuration, and gold-plated brass contacts guarantee reliable performance. Whether for industrial machinery, automotive, or aerospace applications, this pushbutton switch delivers quality and functionality.
